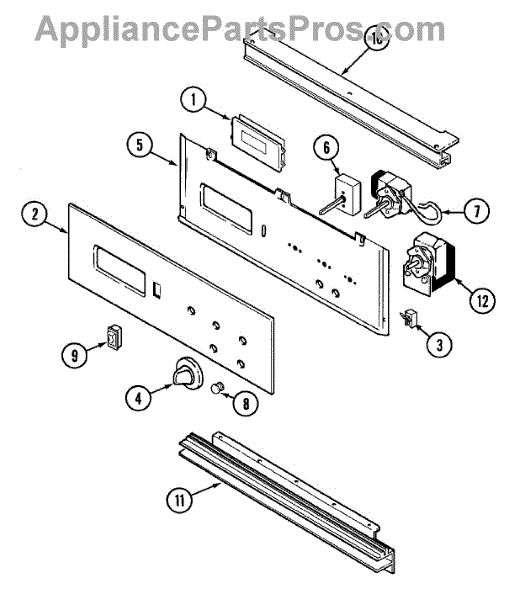

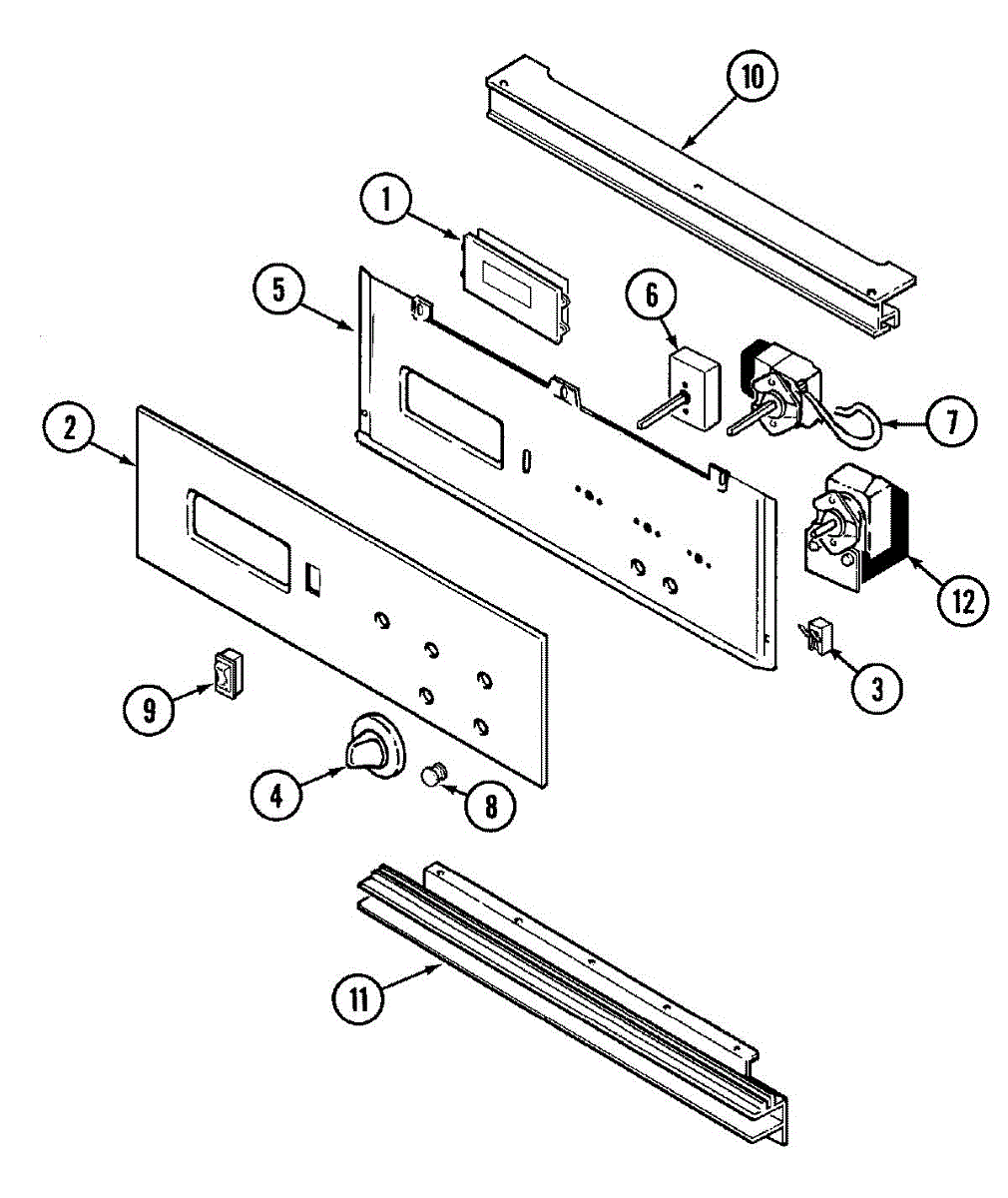

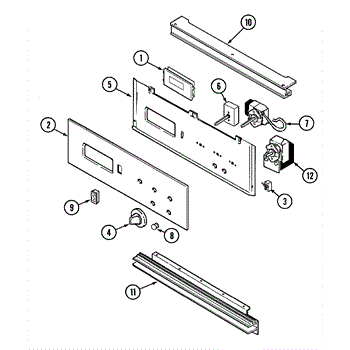

Parts for Magic Chef 9522WUA: 02 - Control Panel Parts

This replacement machine screw secures appliance panels and small components to restore proper fit and reduce vibration. Use it to replace missing or stripped fasteners so panels and brackets stay firmly attached. What it does

• Fastens panels, brackets, and small assemblies to the cabinet or chassis
• Prevents loose trim, rattling, or gaps caused by missing screws
• Holds components in correct alignment for reliable operation
• Restores original mounting when a screw is lost or damaged

• Disconnect power and unplug the appliance before accessing internal panels.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Install straight and snug; do not overtighten to prevent thread or part damage.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Replacement indicator light for control panels that restores visible status and cycle feedback. Ideal when the control-panel light is dim, cracked, or not illuminating—helps active functions and cycle progress at a glance. What it does:

• Illuminates to indicate active functions and cycle/status information on the control panel.
• Replaces a cracked, burnt-out, dim, or non-functioning indicator light.
• Common symptoms it can fix: a dark, flickering, or intermittently working panel indicator.

• Disconnect power (unplug or shut off the circuit breaker) before servicing the appliance.
• Access may require removing the control panel or lens; follow the owner's manual or service guide for panel removal.
• Handle the light and lens carefully to avoid damage; avoid touching bulb surfaces with bare hands.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This rotary selector switch lets users choose cycles or settings from the appliance control panel, restoring reliable selection and control responsiveness when the original switch is worn, loose, or unresponsive. What it does:

• Rotates to select cycle, temperature, or function positions on the control console.
• Sends the selected position signal to the appliance control so the unit runs the chosen program.
• Common symptoms: knob won't turn smoothly, selections don't change, intermittent or no response from the control.
• Replacing a damaged switch can eliminate loose or erratic selector behavior.

• Disconnect power before beginning any repair to avoid shock or injury.
• Remove the control panel and knob to access the switch; retain screws and fasteners for reassembly.
• Disconnect wire harnesses carefully—do not pull on wiring; use proper tools to release terminals.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation

Color: Black

Color: Black. For biscuit order 98008169. For white order WP98008544.

Color: Black. For biscuit order 98008169. For white order WP98008544.
