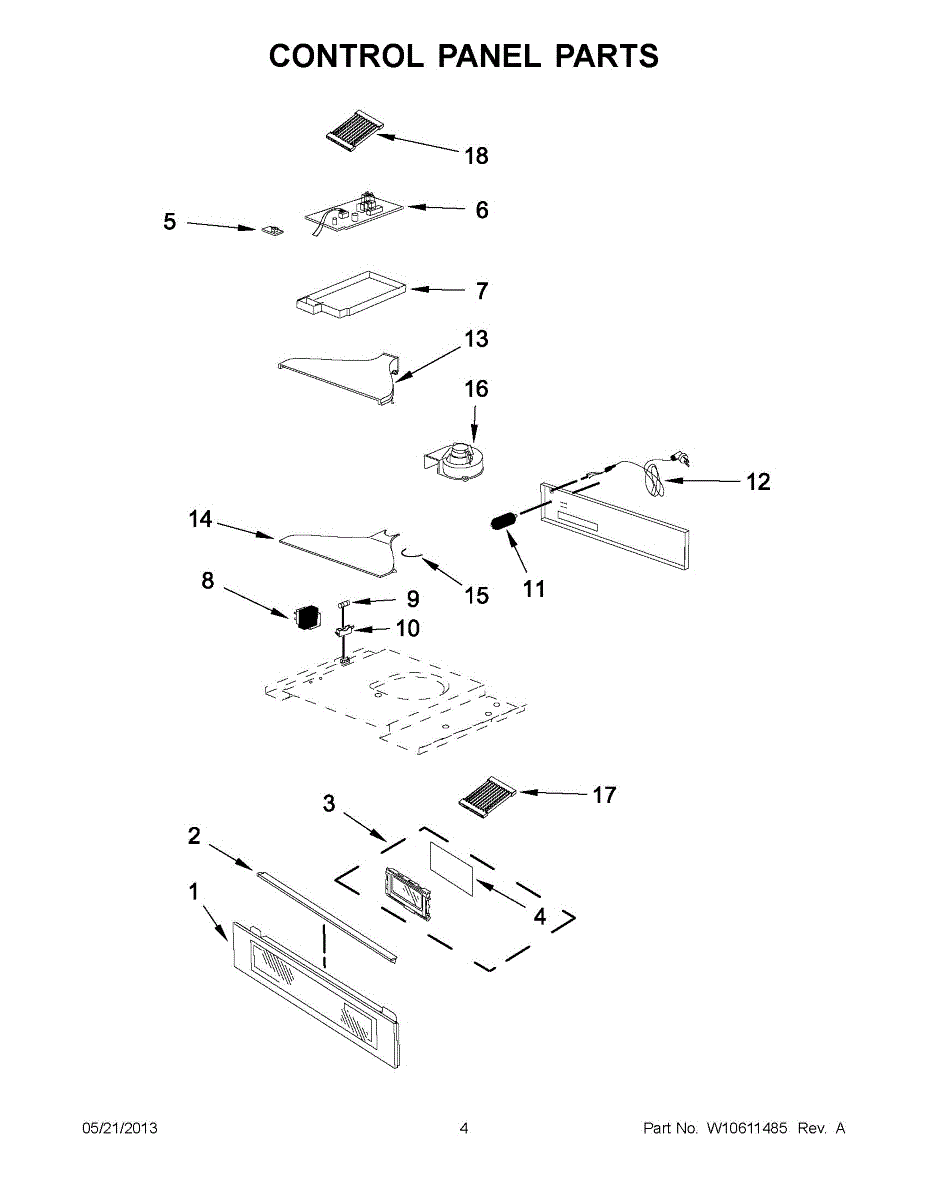

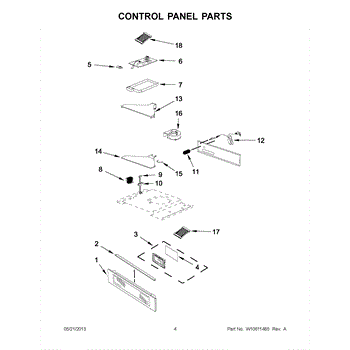

Parts for Maytag JBS7524BS0: 02 - Control Panel Parts

This transformer converts incoming mains power to the low-voltage supply your appliance's control board needs, restoring reliable control and display operation. It's a direct-replacement component for worn or failed transformers. What it does:

• Provides the low-voltage power feed used by the control board and user interface
• Stops intermittent or complete loss of display or control responsiveness
• Prevents erratic cycling or failure to start when the control supply is interrupted
• Helps eliminate buzzing or overheating caused by a failing transformer

• One replacement transformer (exact part number required for compatibility)

• Disconnect all power at the breaker or unplug the appliance before servicing
• Note or photograph original wiring and connector locations for correct reassembly
• Handle with care; avoid touching terminals while energized and secure all covers
• Replace with the exact OEM part number to ensure correct voltage and fit

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse
