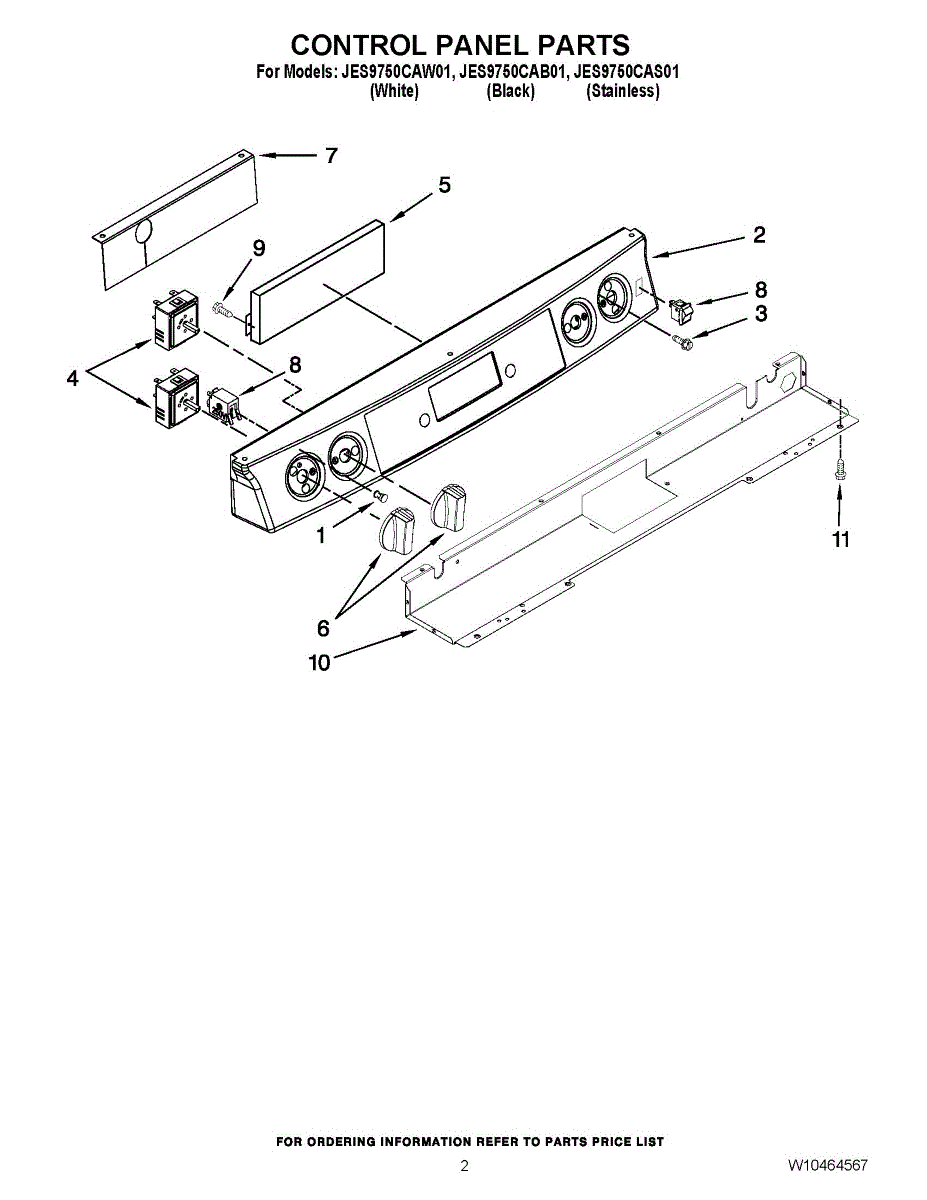

Parts for Maytag JES9750CAS01: 02 - Control Panel Parts

To order indicator light use WP903115.

Color: Black

Color: Black

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This infinite switch controls the power level to a surface burner on an electric range or cooktop, allowing smooth, variable heat settings. Replacing a failed switch restores precise temperature control and reliable burner shutoff.

• Regulates power cycling to a surface element for low, medium, and high heat levels
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or fluctuates/uneven heat
• Mounts behind the control knob and controls a single surface burner
• Restores consistent heat selection and responsive knob control

• Disconnect power at the breaker before servicing
• Pull off the knob and access the switch from the control panel
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure the switch, reinstall panels/knob, and test burner operation

This electronic control board manages the appliance's key functions and user interface. Replacing a failed board restores proper operation, responsive controls, and accurate timing/temperature so cooking cycles start, run, and finish as intended. What it does

• Controls heating outputs and other loads based on selected settings
• Monitors sensor inputs to regulate temperature and timing
• Drives the display and interprets keypad inputs from the control panel
• Common symptoms: won't start or heat, blank/unresponsive display, error codes/beeping, erratic temperature or cycle behavior

• 1 electronic control board

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Access the board behind the control panel; photo wire locations, then move connectors one at a time and reuse mounting hardware
• Restore power and run a test cycle; perform control/temperature calibration if your model supports it

This is a replacement control knob that restores user control of a range/oven setting. It fits onto the appliance control shaft to provide a comfortable grip and clear position selection. What it does

• Replaces a cracked, stripped, or missing control knob so you can set temperature or function accurately.
• Provides a tactile grip and visible pointer to indicate selected setting.
• Restores smooth turning action when the original knob is worn or broken.
• Matches original fit and shaft engagement to secure to the control post.

• One replacement control knob (color: black).

• Fits on the appliance control shaft; pull off the old knob and push the new knob fully onto the shaft until seated.
• Ensure the oven/range is OFF and controls are cool before replacing the knob.
• No tools typically required; use gentle leverage to avoid damaging the control shaft.
• If the knob does not seat or turn correctly, do not force.

This control knob replaces a worn or broken appliance control knob to restore safe, simple temperature and function adjustments. It provides a direct, user-facing interface so settings turn smoothly and stay set during use. What it does:

• Replaces a damaged, cracked, or stripped control knob so you can select heat, cycle, or power settings reliably
• Restores tactile grip and detent feedback for accurate adjustments
• Prevents slipping or loss of control caused by a loose or broken knob
• Fits on splined valve or shaft designs for direct mechanical connection

• Disconnect power to the appliance before servicing for safety
• Most knobs pull straight off the control shaft; no special tools required, though pliers with padded jaws may help for tight fits
• Align splines on the knob and shaft when installing; press firmly until seated

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
