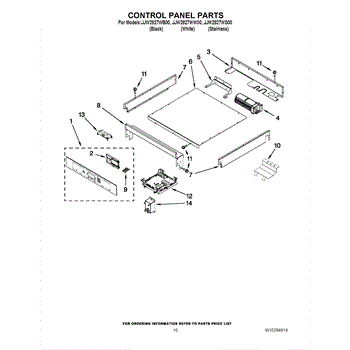

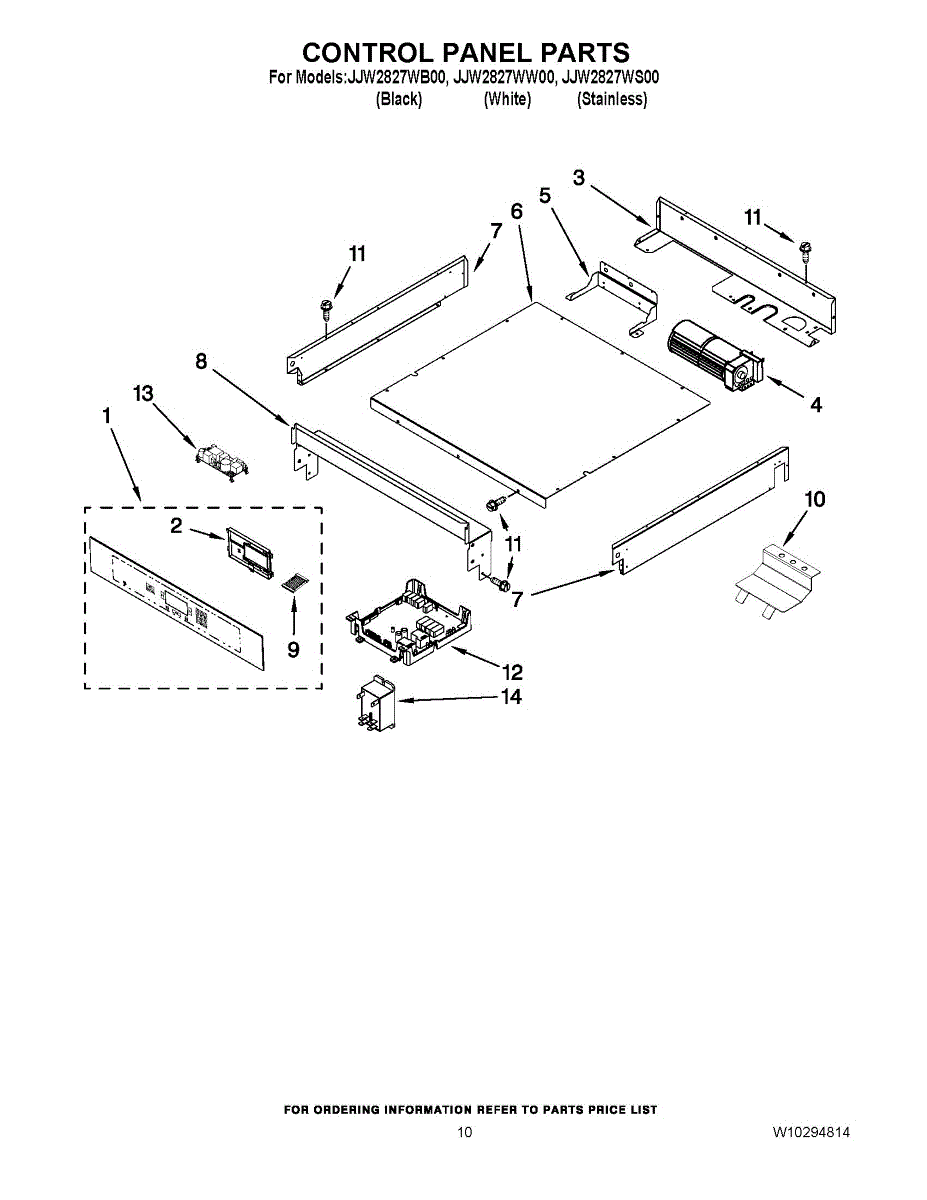

Parts for Maytag JJW2827WS00: 06 - Control Panel Parts

This control panel is the user-facing console assembly that houses the touchpads and display, restoring control and feedback for your appliance. It replaces a damaged or unresponsive control interface so you can operate cycles and settings normally. What it does

• Provides the user interface for selecting cycles, options, and settings
• Relays button presses and touchpad input to the appliance control system
• Restores display readouts and status indicators when the original panel fails
• Common symptom: unresponsive buttons or no display/feedback

• Disconnect power to the appliance before starting any repair
• Handle the panel and any attached circuit board or ribbon cables carefully to avoid damage
• Installation typically requires removing the appliance console or fascia; keep fasteners for reuse

This control panel is the user interface assembly that houses the buttons and display for operating your range or oven, restoring full control and reliable command feedback for cooking functions and settings. What it does:

• Replaces the front user interface so buttons, touchpads, or display respond correctly.
• Restores control of cooking modes, temperature settings, timers, and oven controls.
• Helps resolve unresponsive or intermittently working buttons, blank or flickering displays, and incorrect control behavior.
• Works as the main interface between the user and the appliance's control electronics.

• 1 control panel assembly

• Disconnect power at the house circuit breaker before beginning any work to avoid shock.
• Handle the display and ribbon connectors carefully; avoid bending or stressing circuit traces.
• Confirm cabinet and trim removal steps for your specific appliance model before installation.

This electronic control board regulates the appliance's console functions so cycles, settings and displays operate correctly. Replaces a faulty console module to restore responsive controls and normal cycle selection. What it does:

• Manages user inputs, cycle selection and timing signals for the appliance
• Controls display indicators, LEDs and electronic user-interface feedback
• Communicates with other modules to start/stop cycles and control features
• A failed board can cause unresponsive buttons, incorrect displays, or cycles that won't start

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the board by its edges and avoid static discharge; use an anti-static wrist strap if available
• Verify the part number and appliance model match before installation

This left-side blower moves air through the appliance's vent path to maintain proper airflow and cooling. Replacing a worn or noisy blower restores ventilation performance and helps protect components from excess heat. What it does:

• Circulates air on the left side to maintain airflow through the exhaust/cooling path
• Helps keep internal temperatures within spec to protect controls and components
• Restores performance when the original blower is worn or failed
• Common symptoms include loud humming/squealing, rattling or vibration, weak or no airflow, overheating, or blower-related error alerts

• 1 left-side blower

• Disconnect power at the breaker before servicing; allow hot surfaces to cool
• Remove filters, panels, or service covers as needed to access the left blower
• Note wire positions; transfer any brackets, seals, or harnesses from the original if required
• Secure all fasteners and test before reassembly

This right-side blower moves air through the appliance to maintain proper airflow and temperature balance. Replacing a noisy, seized, or damaged blower restores smooth air movement and helps protect nearby components during operation.

• Provides forced airflow on the right side of the unit as designed
• Helps move heat away from critical areas to support reliable performance
• Typical symptoms include loud rattling/squealing, vibration, weak or no airflow, or the fan not running
• Orientation-specific part; correct side placement is required for proper airflow

• Disconnect power and allow the appliance to cool completely before servicing
• Access may require removing panels or sliding the unit partway out; note wire positions and airflow direction
• Transfer any reusable brackets or seals from the old blower, secure fasteners, and test for smooth, quiet operation

This metal mounting bracket secures internal components so assemblies stay aligned and stable during normal use. Replacing a damaged or missing bracket restores proper fit and reduces noise, vibration, or part movement. What it does:

• Secures and supports appliance components or assemblies to the cabinet or frame
• Keeps parts aligned to prevent rubbing, misalignment, or binding
• Reduces rattling, vibration, and loose-part noises caused by a worn or broken bracket
• Provides a stable attachment point for screws or fasteners

• One mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Use basic hand tools (screwdriver, socket set) and keep fasteners from the old part for reuse if undamaged
• Align bracket carefully and tighten screws snugly—do not overtighten to avoid stripping or distortion
• Wear gloves to protect against sharp edges and follow all safety instructions in your appliance manual

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This power supply board, sometimes referenced as the SMS module, provides regulated low-voltage power for the appliance's control system. Replacing a failing board restores power to the controls so the unit turns on and runs reliably.

• Converts AC line power into stable low-voltage DC for control electronics and the user interface
• Distributes power to critical control circuits and relays
• Helps protect sensitive components from voltage irregularities
• Common symptoms: no lights or display, unresponsive controls, won't start, intermittent power loss

• Disconnect power at the breaker and verify no voltage is present before servicing
• Handle the board by the edges and use ESD protection
• Photograph/label connectors; transfer wiring one at a time to avoid misrouting
• Ensure all connectors are fully seated and the board is secured before restoring power and testing
