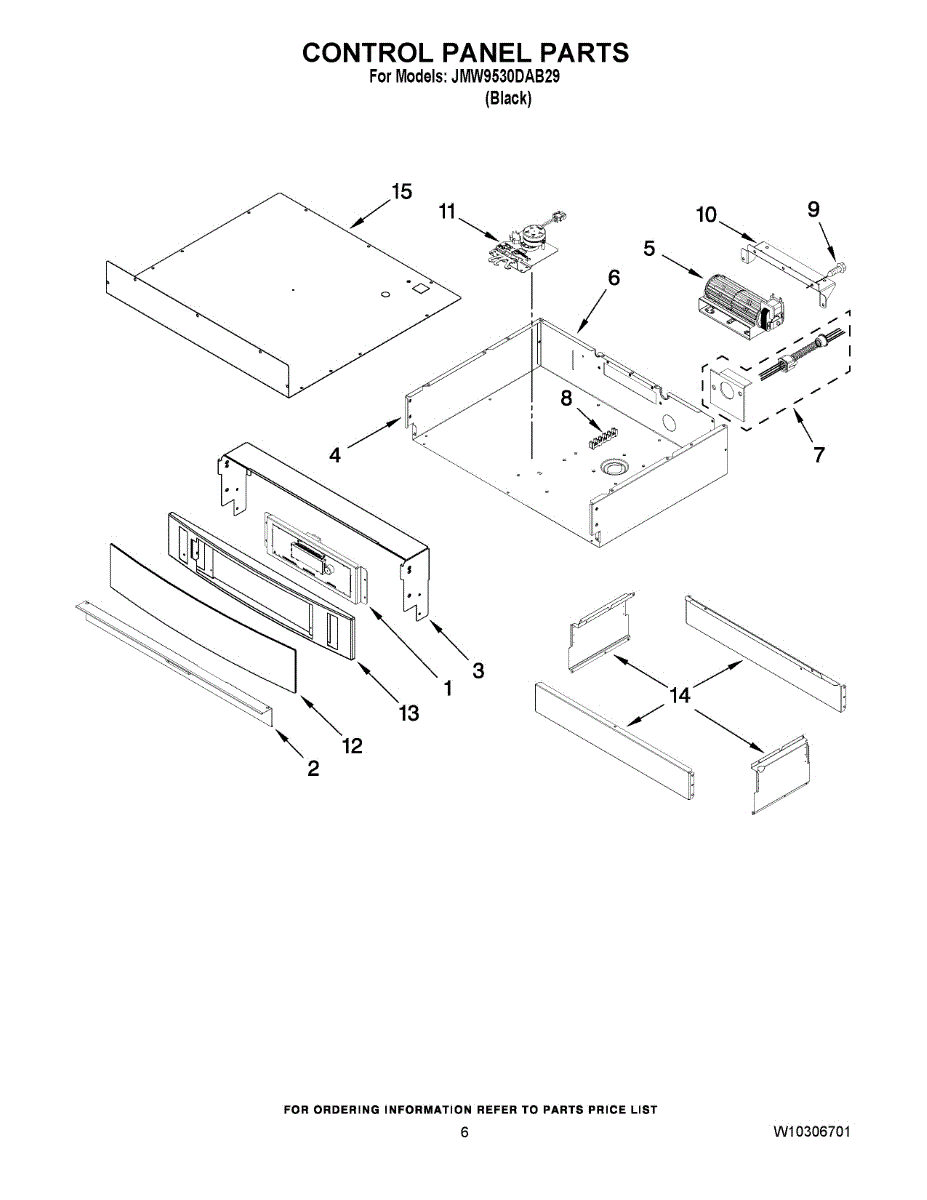

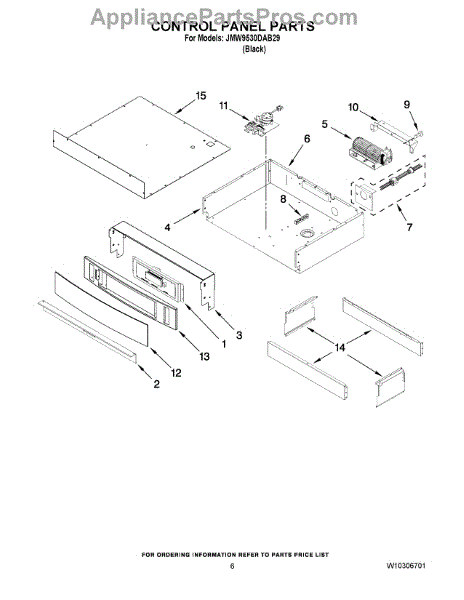

Parts for Maytag JMW9530DAB29: 04 - Control Panel Parts

This electronic oven control replaces the console control used to operate a single-convection oven, restoring user inputs and cycle selection so you can reliably set temperature, timers and cooking modes. Ideal when display, touchpad or convection functions fail. What it does:

• Replaces the oven's main user control to allow selection of bake, broil, convection and timed functions
• Restores touchpad/button input and on-screen feedback when controls are unresponsive or blank
• Helps resolve symptoms such as no display, unresponsive buttons, or inability to start bake/convect cycles
• Interfaces with oven components to relay temperature and command signals to the heating system

• One control (single-conv) as shown

• Disconnect power at the circuit breaker before starting any work to avoid shock hazard
• Handle the control assembly carefully; avoid touching circuit board components and use anti-static precautions if available
• Installation typically requires removing the oven console or back access panel and unplugging the old control connector—refer to OEM service instructions

Fix loud sawing noise or error code 4d21/4d22 in your oven. This tangential cooling fan motor restores proper airflow. Moderate difficulty repair.

Wire harness assembly for ovens. Connects electrical components inside your oven. Replace if wires are frayed, damaged, or connections are loose or broken.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement mounting bracket for ovens. Secures and supports internal components. Order a new bracket if yours is bent, cracked, or broken.

Fix a wall oven that won't lock or run self-cleaning cycles with this door latch assembly. Essential safety component. Moderate DIY difficulty.
