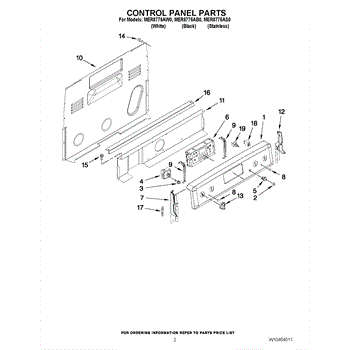

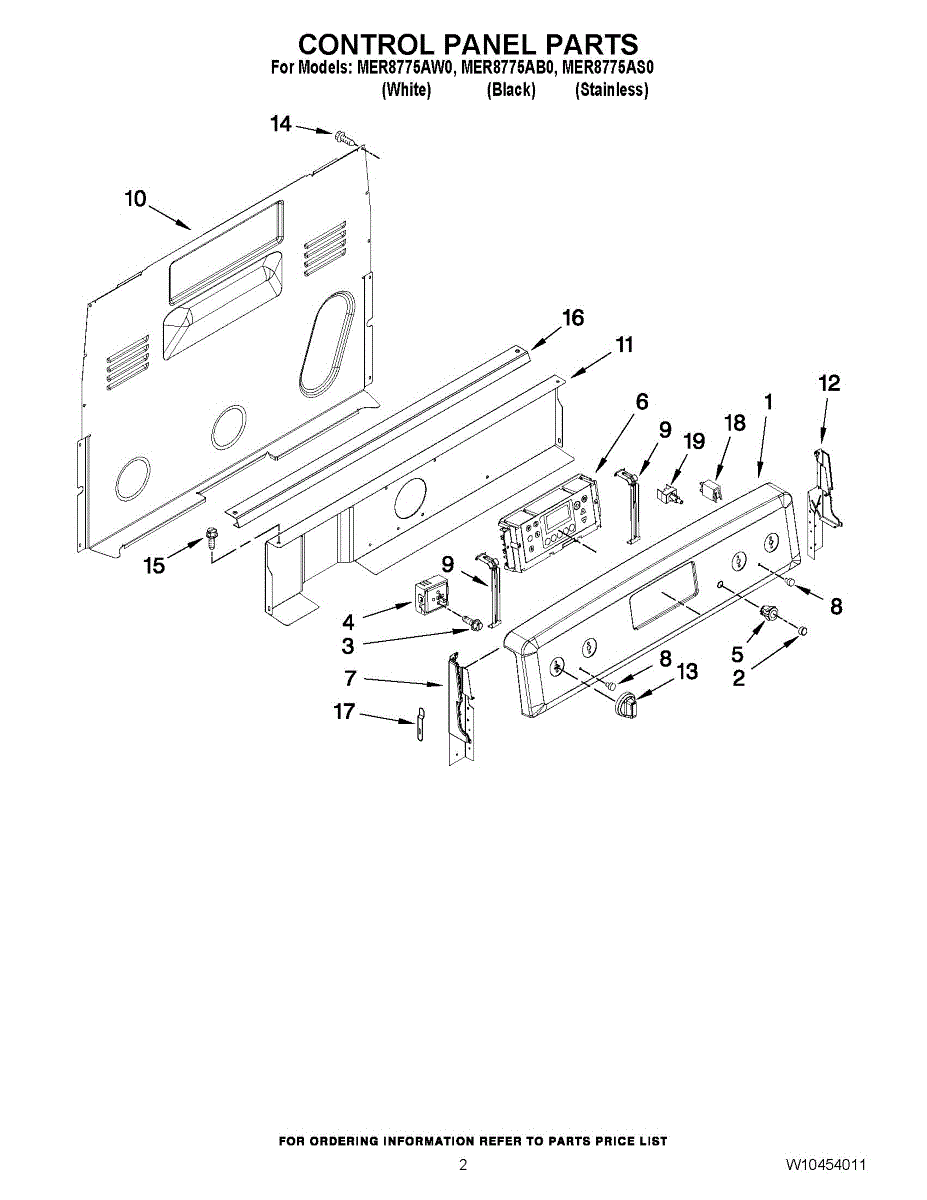

Parts for Maytag MER8775AS0: 02 - Control Panel Parts

Color: Stainless

Color: White. For black use 9758491.

Color: Black. For white use 9758491

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

The Infinite Switch is an OEM part for Whirlpool ranges. This part allows for precise temperature control and seamless operation of the left front heating elements.

Causes of a bad part can stem from electrical issues, such as power surges or short circuits, physical damage from impact or mishandling, or general wear and tear over time, leading to deterioration of the switch's internal components or connections.

Symptoms of a bad Infinite Switch in a range include:

• Difficulty in adjusting or maintaining desired temperature settings for the burners
• Erratic heating behavior, with burners cycling on and off unexpectedly
• Complete failure of one or more burners to turn on or remain on at the selected setting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. This part allows for precise temperature control and seamless operation of the right front heating elements.

Causes of a bad part can stem from electrical issues, such as power surges or short circuits, physical damage from impact or mishandling, or general wear and tear over time, leading to deterioration of the switch's internal components or connections.

Symptoms of a bad Infinite Switch in a range include:

• Difficulty in adjusting or maintaining desired temperature settings for the burners
• Erratic heating behavior, with burners cycling on and off unexpectedly
• Complete failure of one or more burners to turn on or remain on at the selected setting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White

Color: Stainless

Color: Black

This amber light lens covers and protects a control-panel indicator, restoring the intended amber color and visibility for status notifications. It's a direct-fit exterior lens used on compatible Whirlpool control panels. What it does:

• Replaces a cracked, faded, scratched or missing amber indicator lens to restore proper indicator color
• Protects the underlying lamp/LED from dust and damage
• Helps make status lights easier to see for accurate appliance feedback
• Matches OEM fit and appearance for a seamless repair

• Basic snap-in or screw-in replacement; your model's service manual for exact access steps
• Power off and unplug the appliance before accessing the control panel to avoid shock
• Handle the lens carefully to avoid scratching the new surface during installation
• The indicator still doesn't light after installing the lens, the lamp/LED or wiring may need testing or replacement

This amber light lens covers and protects a control-panel indicator, restoring the intended amber color and visibility for status notifications. It's a direct-fit exterior lens used on compatible Whirlpool control panels. What it does:

• Replaces a cracked, faded, scratched or missing amber indicator lens to restore proper indicator color
• Protects the underlying lamp/LED from dust and damage
• Helps make status lights easier to see for accurate appliance feedback
• Matches OEM fit and appearance for a seamless repair

• Basic snap-in or screw-in replacement; your model's service manual for exact access steps
• Power off and unplug the appliance before accessing the control panel to avoid shock
• Handle the lens carefully to avoid scratching the new surface during installation
• The indicator still doesn't light after installing the lens, the lamp/LED or wiring may need testing or replacement

White

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

Control knob that replaces a damaged or missing range control knob, restoring safe, reliable selection of heat settings. Provides secure grip and positive detents for accurate temperature adjustment on electric range controls. What it does:

• Fits onto the control shaft to select heat levels for electric surface burners or range controls.
• Replaces cracked, stripped, loose, or missing knobs that won't turn or slip on the shaft.
• Restores clear tactile stops and improves ease of setting burner or oven heat.
• Helps eliminate unsafe or imprecise temperature control caused by a compromised knob.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Pull the old knob straight off the control shaft; align splines and push the new knob on until fully seated.
• If the knob does not fit or the shaft is damaged, do not force the part—inspect and replace the underlying switch or shaft assembly if needed.
• Restore power and verify correct operation of all control settings after installation.

Size: 8-18 x 1/2 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

Surface unit indicactor light.

This pushbutton switch is a momentary control used on appliance control panels to complete an electrical circuit when pressed, restoring user control and replacing worn or unresponsive buttons. What it does

• Acts as a momentary contact switch on the control panel to register user input.
• Restores panel responsiveness when a stuck, intermittent, or unresponsive button prevents commands from being accepted.
• Helps resolve issues where pressing a specific control does not start a cycle or change settings.
• Provides a direct, replaceable electrical contact—no programming required.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove the control panel or console to access the switch.
• Note connector positions and orientation before disconnecting wires; use a multimeter to verify replacement if needed.
