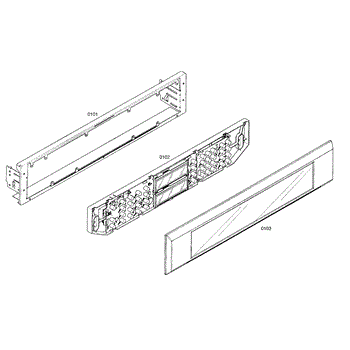

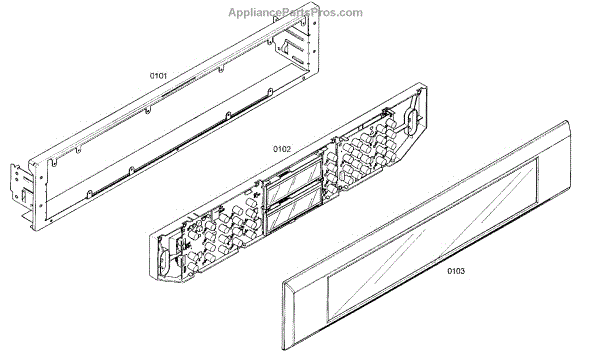

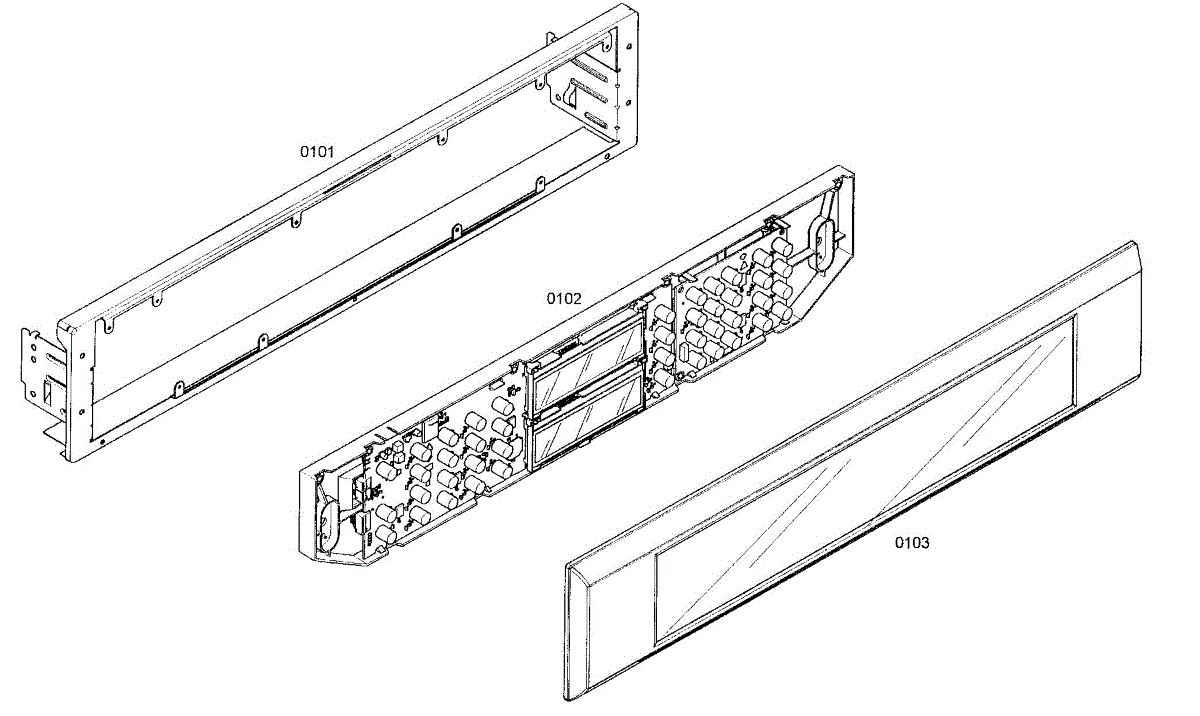

Parts for Thermador MED272EB01: Control Panel Parts

User interface control panel that provides the buttons and display used to select cycles and view appliance status. Replaces a faulty control panel to restore responsive controls and clear cycle/status feedback. What it does:

• Registers user input from the touchpad/buttons; may fail if buttons are unresponsive or intermittent.
• Displays cycle progress and status indicators; can show blank, garbled, or missing segments when faulty.
• Sends user commands to the appliance control system; failure can prevent cycles from starting or changing.
• Common symptom linkage: unresponsive controls, no display, incorrect cycle selection, or persistent status/errors.

• Always disconnect power (unplug or shut off breaker) before servicing the appliance.
• Handle the display/overlay and ribbon/wire connectors carefully to avoid damage.
• Remove and replace the console using correct fasteners; ensure all connectors are fully seated.

Wall oven not heating or display not working? This cable harness connects electrical components. Common fix for power issues. DIY repair in 30-45 minutes.

Wall oven not powering on or display blank? This cable harness restores electrical connections. Moderate DIY repair taking 30-45 minutes.

This cable harness connects key electrical components to restore power and signal flow in the appliance. It replaces a damaged or faulty wiring harness to help return controls and components to normal operation. What it does:

• Carries power and control signals between the control board and components
• Replaces frayed, burned, or broken wires that cause intermittent or no operation
• Common symptoms it can address: appliance won't start, controls unresponsive, intermittent cycles, or error codes related to open/shorted circuits
• Helps ensure secure connector mating and correct signal routing when installed properly

• Disconnect power at the breaker or unplug the appliance before starting any repairs
• Compare the new harness to the old one and follow the appliance wiring diagram for correct routing and connector placement
• Secure connectors fully; avoid sharp bends or pinching the wires during reassembly

Wall oven not heating or displaying errors? A faulty cable harness often causes electrical failures. This internal wiring assembly typically requires 1-2 hours to replace with moderate skill.
