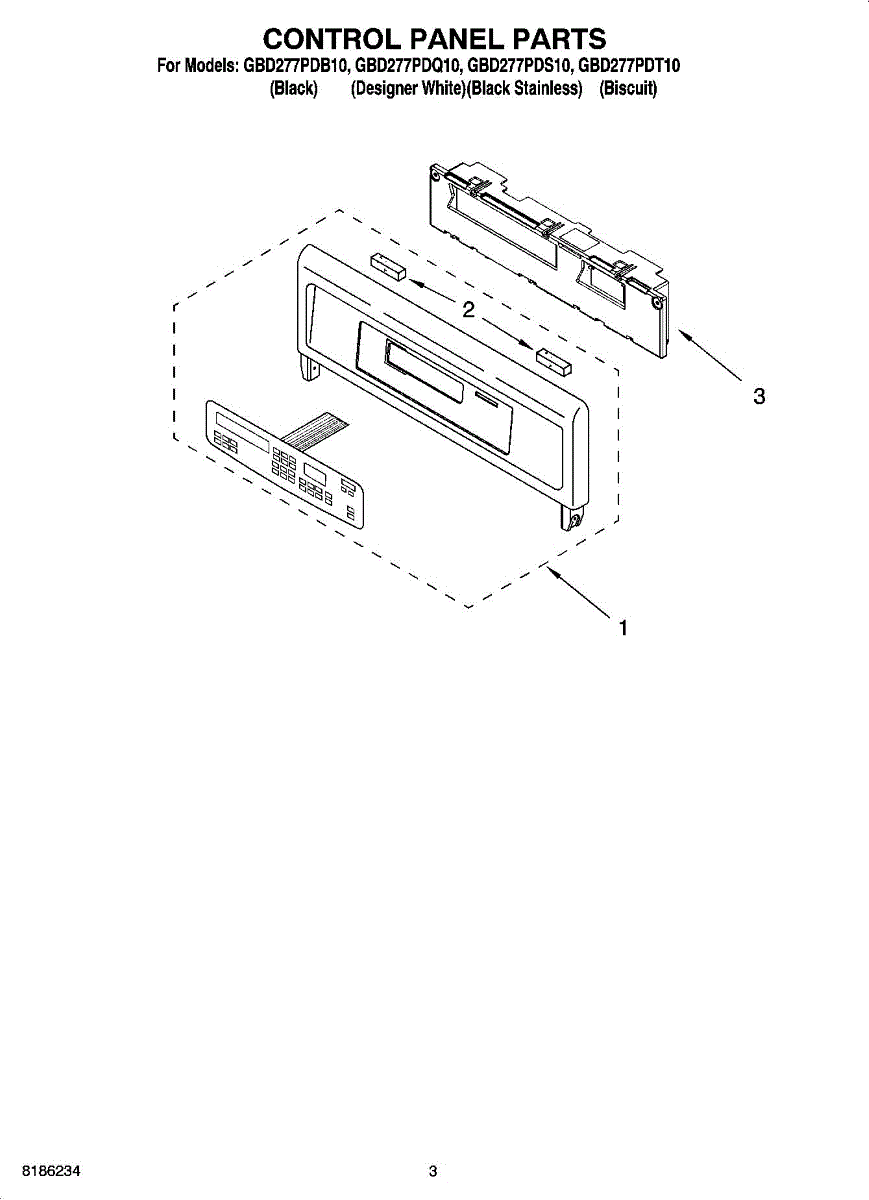

Parts for Whirlpool GBD277PDB10: 02 - Control Panel Parts

Color: White. Membrane switch included.

Color: Black. Membrane switch included. Used on black, stainless and biscuit models.

Screw for side trim.

Screw for control panel.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean

Screw for side trim.
