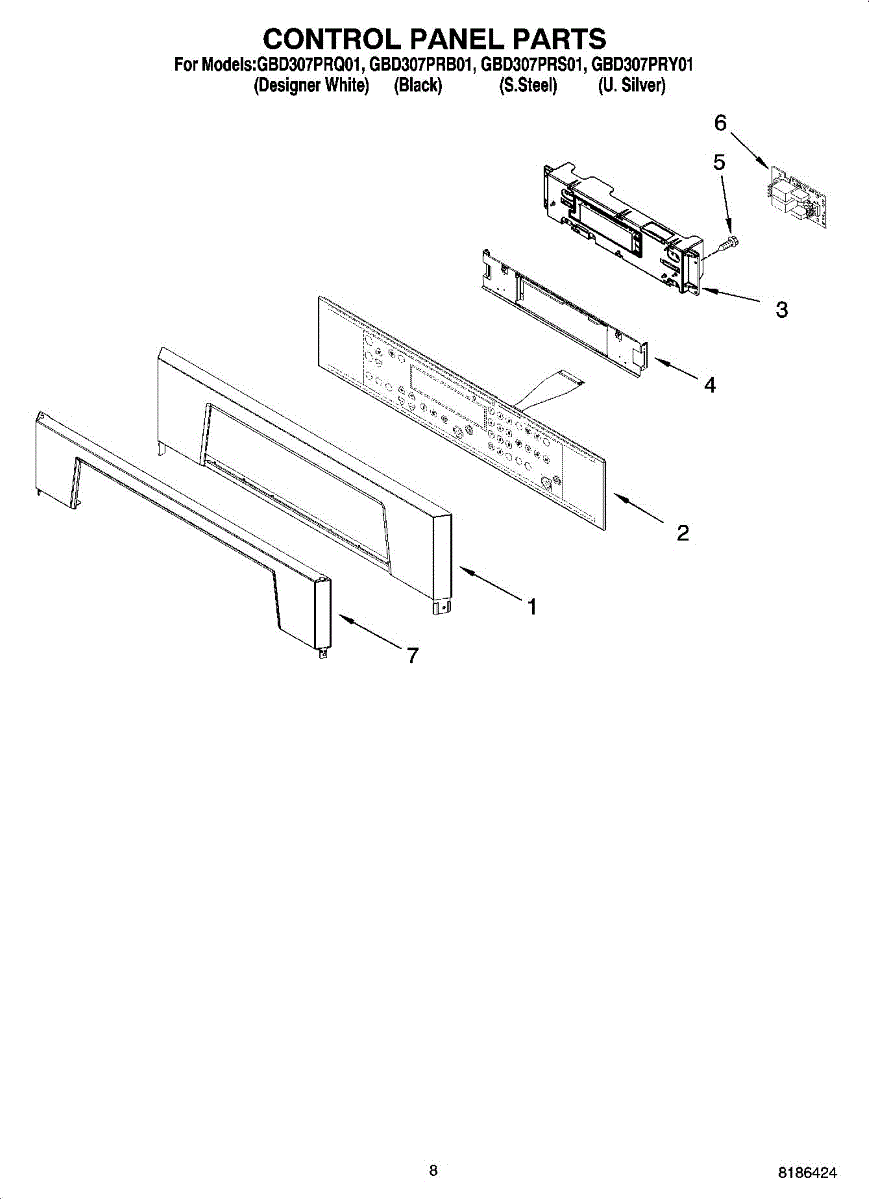

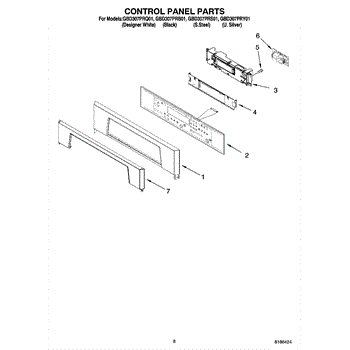

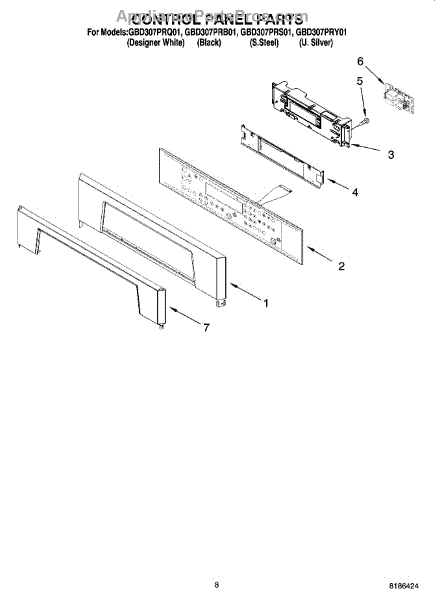

Parts for Whirlpool GBD307PRS01: 06 - Control Panel Parts

This control panel assembly houses the appliance's user interface, buttons and display so you can operate cycles and settings as intended. Replacing a damaged or worn panel restores a clean, functional console and readable controls. What it does

• Replaces the entire front console housing that holds the buttons and display.
• Restores responsive pushbuttons and visible indicators when the original panel is cracked, faded or otherwise damaged.
• Secures and protects internal switch and ribbon cable connections from everyday wear.
• Helps address symptoms such as loose or missing buttons, a cracked face, or faded markings that make controls hard to read.

• Disconnect power before beginning repair to avoid shock or damage to electronics.
• May require removal of the console trim and careful disconnection of ribbon cables or wire harnesses; keep fasteners organized.
• Handle the new panel and its connectors gently to avoid bending pins or scratching the display.

This is the front control panel assembly in a black finish. It restores a clean look and secure mounting for the appliance's user interface area so controls are easy to access and properly supported. What it does:

• Forms the front interface surface and mounting structure for the control components
• Aligns and supports the keypad/user interface and display area
• Shields internal components around the control area from heat, moisture, and debris
• Helps resolve issues such as a cracked, warped, or broken panel and loose/misaligned controls
• Refreshes worn or damaged exterior appearance

• 1 control panel assembly in black

• Disconnect power at the breaker before servicing; allow the appliance to cool completely
• Support the panel while removing the last fasteners to prevent dropping or damage
• Transfer any attached components from the old panel to the new one one-for-one, as applicable
• Seat ribbon cables/connectors fully and avoid pinching wires; use ESD-safe handling if moving electronic boards

Silver Touchpad

Black touchpad

Microcomputer

Screw for control panel.

Screw for control panel.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean

This is a 30-inch stainless-steel trim panel that restores the front appearance and protective finish of the appliance. It gives a clean, finished look while covering damaged or missing factory trim. What it does

• Replaces damaged, dented, scratched or corroded front cladding to restore appearance
• Covers gaps and hides underlying cabinet or bracket edges for a finished look
• Protects the appliance front from everyday bumps and spills
• Matches stainless finish used on the original factory trim

• Removal of existing trim may require removing adjacent screws, clips or handles; retain fasteners for reinstallation
• Handle with care to avoid scratching the stainless finish; use gloves and a soft surface during install
• Align panel to existing mounting points before tightening fasteners to prevent warping or gaps
