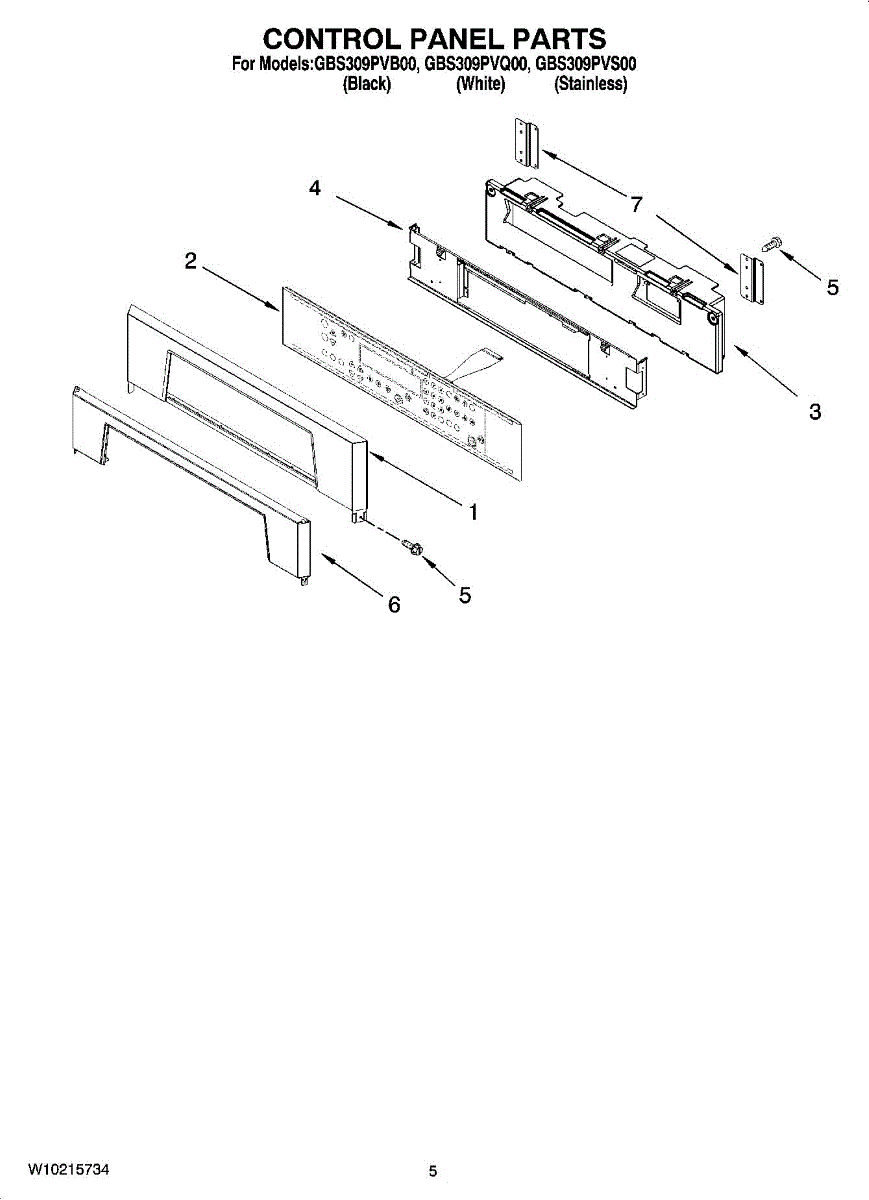

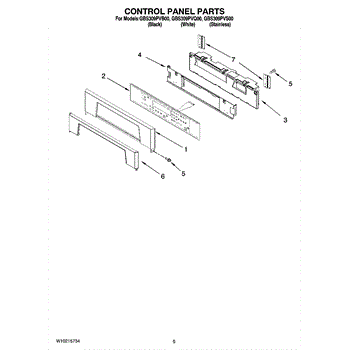

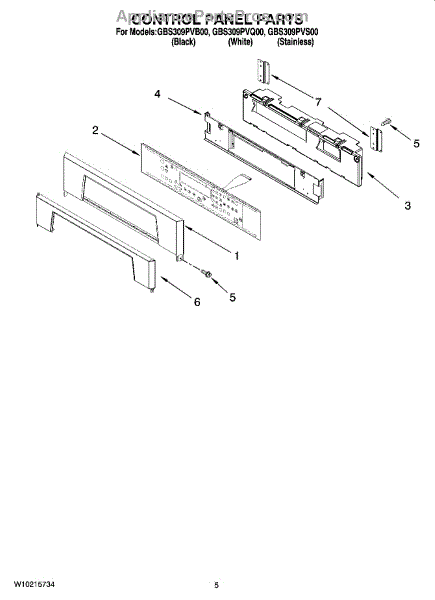

Parts for Whirlpool GBS309PVB00: 04 - Control Panel Parts

This control panel assembly houses the appliance's user interface, buttons and display so you can operate cycles and settings as intended. Replacing a damaged or worn panel restores a clean, functional console and readable controls. What it does

• Replaces the entire front console housing that holds the buttons and display.
• Restores responsive pushbuttons and visible indicators when the original panel is cracked, faded or otherwise damaged.
• Secures and protects internal switch and ribbon cable connections from everyday wear.
• Helps address symptoms such as loose or missing buttons, a cracked face, or faded markings that make controls hard to read.

• Disconnect power before beginning repair to avoid shock or damage to electronics.
• May require removal of the console trim and careful disconnection of ribbon cables or wire harnesses; keep fasteners organized.
• Handle the new panel and its connectors gently to avoid bending pins or scratching the display.

This is the front control panel assembly in a black finish. It restores a clean look and secure mounting for the appliance's user interface area so controls are easy to access and properly supported. What it does:

• Forms the front interface surface and mounting structure for the control components
• Aligns and supports the keypad/user interface and display area
• Shields internal components around the control area from heat, moisture, and debris
• Helps resolve issues such as a cracked, warped, or broken panel and loose/misaligned controls
• Refreshes worn or damaged exterior appearance

• 1 control panel assembly in black

• Disconnect power at the breaker before servicing; allow the appliance to cool completely
• Support the panel while removing the last fasteners to prevent dropping or damage
• Transfer any attached components from the old panel to the new one one-for-one, as applicable
• Seat ribbon cables/connectors fully and avoid pinching wires; use ESD-safe handling if moving electronic boards

This membrane switch touch pad replaces a worn or unresponsive control panel interface so you can restore touch-button control of your range or oven. It provides the button surface and contact layer used to select functions and settings. What it does:

• Acts as the user-facing touch surface for oven/range controls so button presses register correctly
• Re-establishes reliable input when keys are unresponsive, sticky, or intermittently fail
• Works with the underlying control board to select bake/clock/temperature/timer functions
• Helps eliminate ghost presses or missed commands caused by damaged or worn button contacts

• One membrane switch touch pad

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove the oven/range control fascia or trim per service instructions to access the membrane layer
• Handle the membrane carefully—avoid creasing, tearing, or contaminating contact areas

Screw for control panel.

This is a 30-inch stainless-steel trim panel that restores the front appearance and protective finish of the appliance. It gives a clean, finished look while covering damaged or missing factory trim. What it does

• Replaces damaged, dented, scratched or corroded front cladding to restore appearance
• Covers gaps and hides underlying cabinet or bracket edges for a finished look
• Protects the appliance front from everyday bumps and spills
• Matches stainless finish used on the original factory trim

• Removal of existing trim may require removing adjacent screws, clips or handles; retain fasteners for reinstallation
• Handle with care to avoid scratching the stainless finish; use gloves and a soft surface during install
• Align panel to existing mounting points before tightening fasteners to prevent warping or gaps
