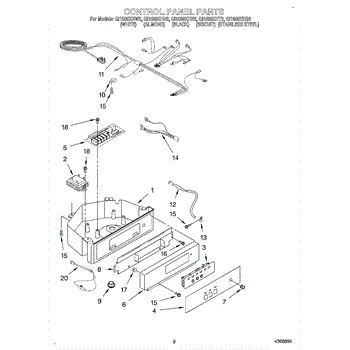

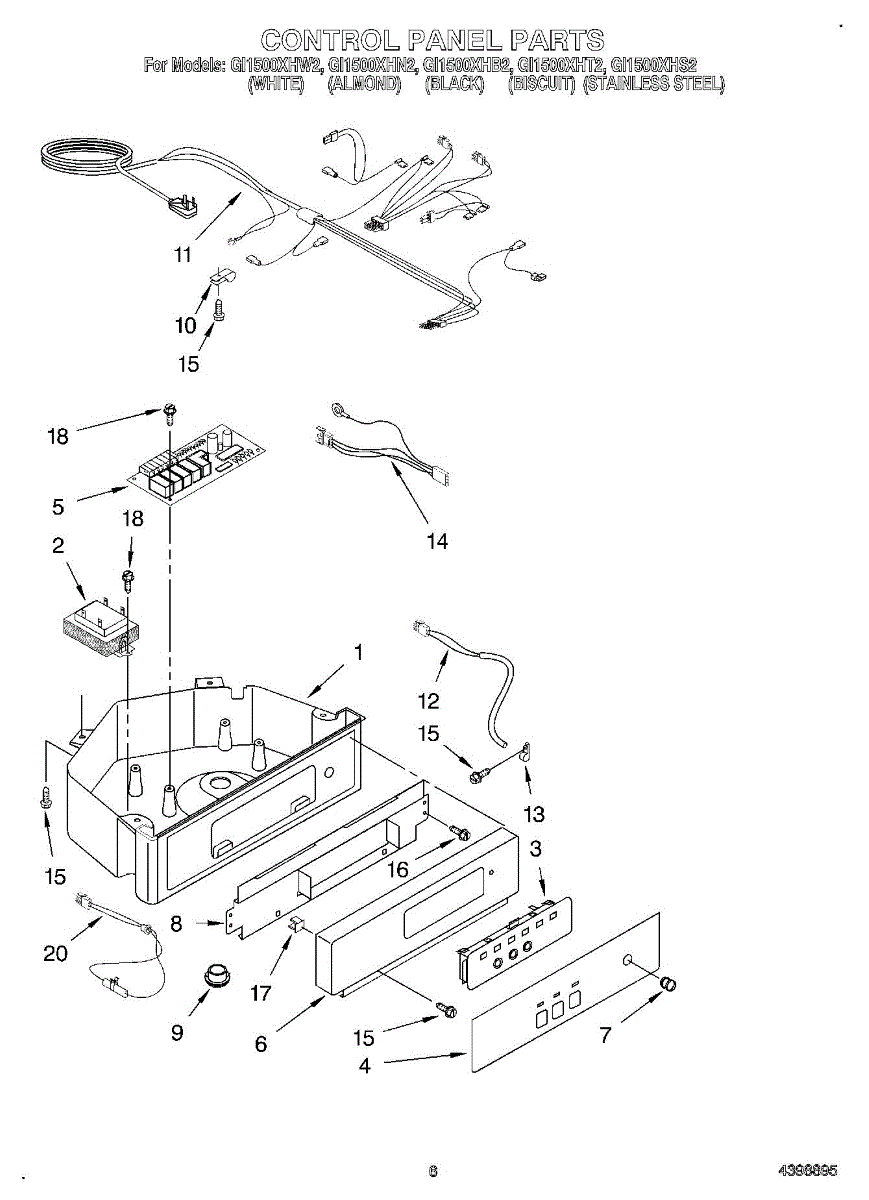

Parts for Whirlpool GI1500XHB2: 04 - Control Panel Parts

For overlay use 2208317W.

This replacement part is a control board for an ice maker. Control boards serve as the main computer that controls the functions of the ice machine.Before installing this part, unplug the ice maker and pull it away from the wall. Then unthread screws of the access cover to the control panel. Use a putty knife to pry the cover off and proceed to remove the screws securing the top panel. Use a nut driver to remove the rear panel. Lift the top panel up and have someone hold it upright. Remove the screws that hold the control housing on the top panel. Once control housing has been released, remove the screws securing the grounding wire to set the panel aside. Then with a Phillips head screwdriver, unthread the screws that hold the control board. Depress the tab to release the board. Note the orientation of the wire connectors and disconnect them from the board. Re-secure the wire connectors to their correct terminals and pop the new control board back in place. Reinstall the panels that were removed. This genuine replacement part is a control board compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand ice machines.

The Thermistor is an OEM part for Whirlpool Ice Machines. It monitors the temperature within the ice machine and sends readings to the control board to regulate the ice-making process.

Over time, the thermistor can become faulty due to electrical issues, normal wear and tear, or exposure to moisture. If the thermistor fails, it can lead to improper ice production or temperature regulation.

Symptoms of a bad ice machine thermistor include:

• Inconsistent ice production
• Ice machine not making ice at all
• Ice cubes that are too large or too small
• The ice machine running continuously or not cycling properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-18 x 5/8 inch.

This replacement screw secures appliance panels, brackets, and internal components so your unit stays assembled, aligned, and quiet. Use it to replace missing, stripped, or corroded hardware and restore a reliable factory-fastened connection.

• Fastens panels, brackets, or trim to the cabinet/frame
• Helps maintain proper alignment of doors, controls, or covers
• Replaces hardware that's missing, rusted, or with a stripped head
• Can help reduce vibration or rattling from loose fasteners

• Disconnect power and shut off gas/water supplies before service
• Match thread and length to the original; transfer any washers if present
• Start threads by hand to avoid cross-threading, then tighten with the correct driver
• Do not overtighten; snug until secure to prevent damage to plastic or sheet metal

A threaded screw used to secure appliance components where an 8-16 thread is specified. Provides a straightforward replacement fastener to restore original fit and keep panels, brackets, and internal parts held securely. What it does:

• Fastens panels, brackets, trim, and small assemblies that use an 8-16 threaded fastener.
• Replaces missing, corroded, stripped, or damaged screws to stop rattling, gaps, or loose parts.
• Restores reliable mechanical connection after service or part replacement.
• Compatible where the OEM specifies an 8-16 screw for mounting or securing components.

• Use the correct driver to avoid stripping the head; start threads by hand to prevent cross-threading.
• Tighten until secure but avoid over-tightening to prevent damage to mounting holes or plastic parts.
• If working near electrical components, disconnect power and follow all safety precautions.
• Inspect mating threads and replace if damaged before installing this screw.
