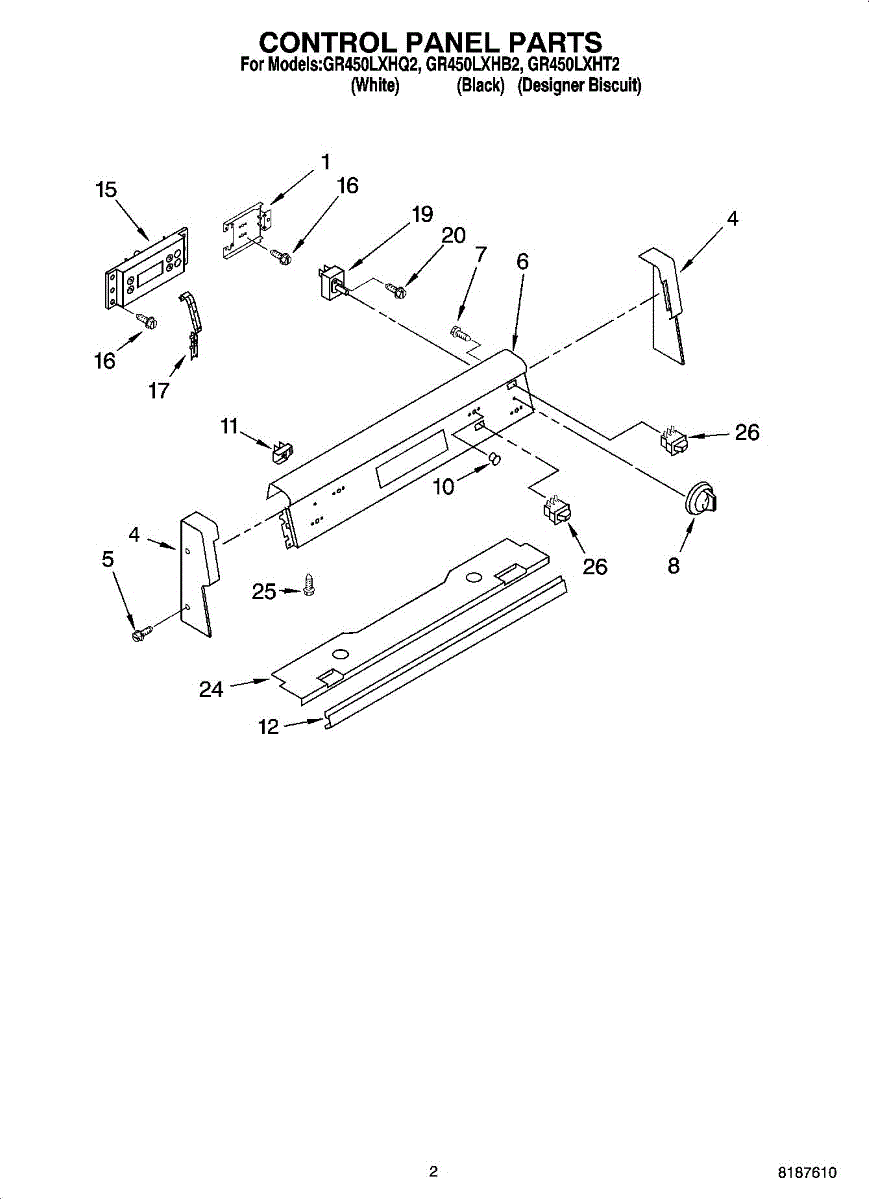

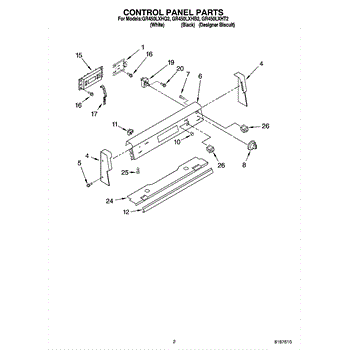

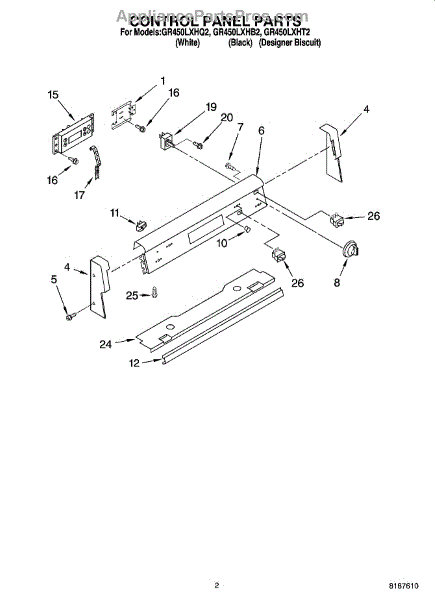

Parts for Whirlpool GR450LXHT2: 02 - Control Panel Parts

Size: 10-16 x 3/8 inch.

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

This white control knob replaces a worn or damaged selector on compatible Whirlpool range and oven controls to restore easy setting selection and a secure grip. Simple, direct replacement that returns normal knob operation. What it does:

• Replaces a stripped, cracked, or missing control knob so you can change settings easily
• Provides a clear pointer and tactile stop for accurate temperature or function selection
• Restores a secure fit to the control shaft for safe, reliable use
• Helps eliminate slipping, wobbling, or intermittent contact caused by a damaged knob

• Disconnect power to the appliance before servicing to avoid shock or injury
• Pull the old knob straight off the control shaft (use gentle rocking if needed) and push the new knob fully onto the shaft until seated
• Verify proper alignment of the pointer/indicator with the control markings before restoring power

Red indicator lens that snaps over a control-panel indicator light to restore visibility and color. Replaces cracked, faded, or missing indicator covers so status lights are easier to see during use. What it does:

• Covers and protects the control-panel indicator light from dirt and damage.
• Restores the red color and improves visibility when the original lens is faded or discolored.
• Keeps light directed through the panel for a clear status signal.
• Common symptoms: cracked or missing lens, washed-out/red light appears dim or uneven.

• Disconnect power to the appliance before attempting replacement to avoid shock or accidental activation.
• Typically snaps into the control-panel opening; some models may use small retainers or screws—retain any fasteners from the original part.
• Replace only with the correct lens to ensure proper fit and color.
• If the indicator still appears dim after replacing the lens, inspect the bulb/LED and wiring (replace only after verifying power is off).

Size: 10-16 x 1/2 inch.

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

For small element with rating of 1800Watt. Typically for right front or left rear element.

This dual infinite surface element switch controls the inner and outer sections of a dual burner. Replacing a faulty switch restores proper selection and smooth temperature control when the burner won't heat, stays on high, or behaves erratically.

• Varies power to both circuits of a dual surface element for adjustable heat
• Enables inner-only or both-ring operation, based on knob position
• Interfaces with the control knob to set and modulate heat levels
• Typical symptoms: no heat, only one ring heats, stuck on high, won't shut off, or inconsistent temperatures

• Disconnect power at the breaker before servicing; ranges use high voltage
• Note terminal labels and wire positions; transfer wires one at a time to matching terminals on the new switch
• Secure the switch to the control panel, align the shaft, and reinstall the knob

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Screw for side trim.

Color: White

Color: Black
