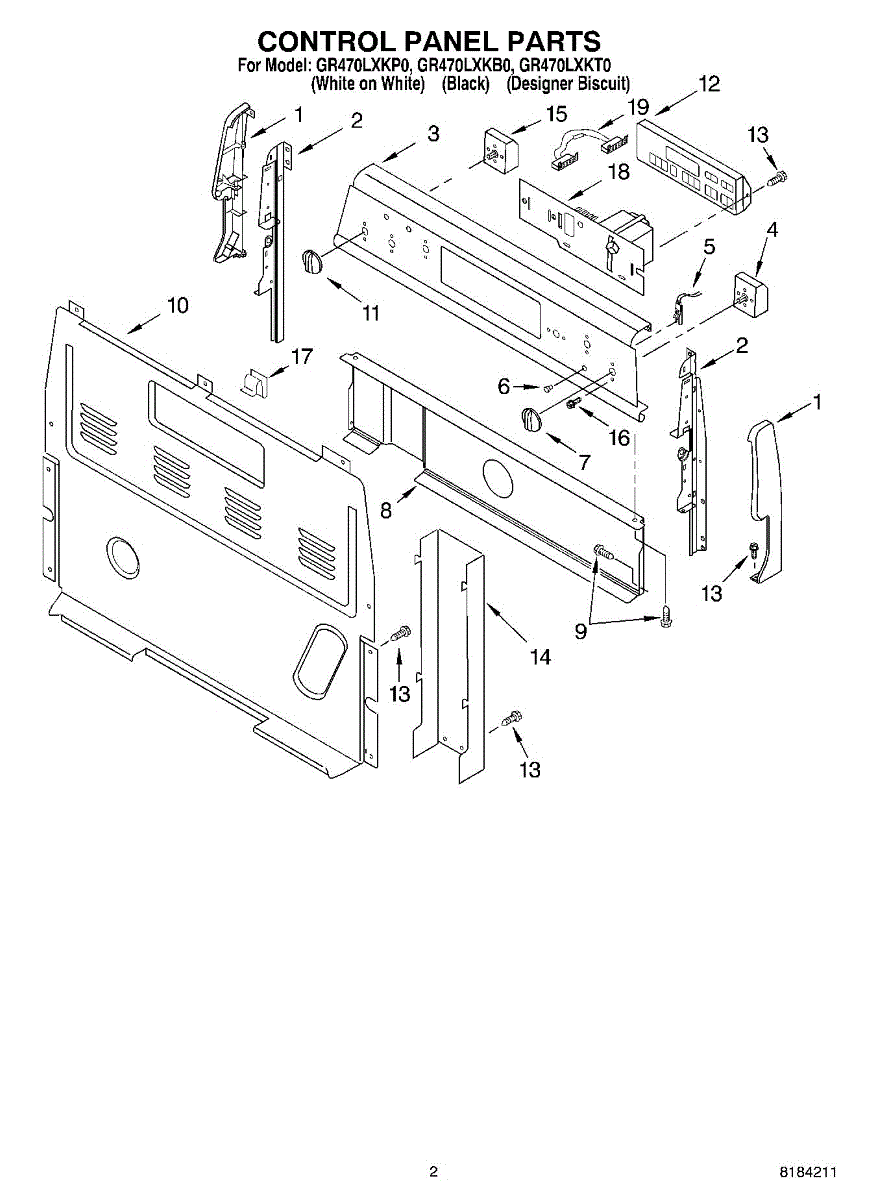

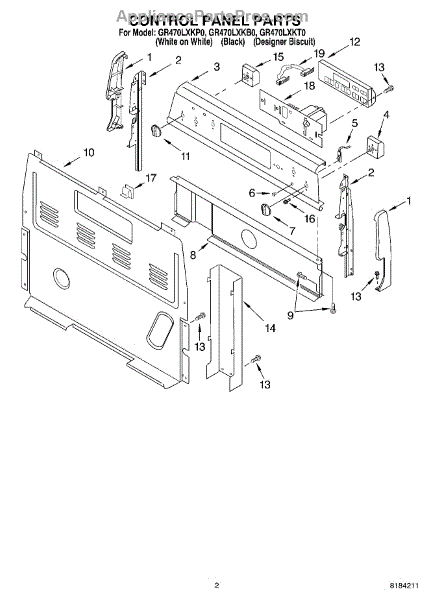

Parts for Whirlpool GR470LXKP0: 02 - Control Panel Parts

Color: Black. Left hand side. For the right hand side order 3186189.

Color: White. Left hand side. For the right hand side order 3186191.

Color: Biscuit. Left hand side. For the right hand side order 8272508.

Color: White. Right hand side. For the left hand side order 3186190.

Color: Biscuit. Right hand side. For the left hand side order 8272507.

Color: Black. Right hand side. For the left hand side order 3186188

Left hand side. For the right hand side order 8523409.

Right hand side. For the left hand side order 8523408.

This dual infinite switch controls a dual radiant surface burner, allowing you to choose and regulate the small (inner), large (outer), or both heating rings. Replacing a failed switch restores proper burner selection and smooth heat control.

• Provides variable power to the inner and outer coils of a dual surface element
• Selects small, large, or dual-ring operation via the control knob
• Regulates heat across settings for accurate temperature control
• Common symptoms: element won't heat, only one ring heats, heat stuck on high, or won't turn off

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard per your model
• Move wires from the old switch to the new one, one at a time, matching terminal positions/labels
• Test burner functions before reassembly

The Infinite Control Switch is an OEM part for Whirlpool ranges and cooktops. This part allows for precise adjustment of the heat level, enabling users to achieve the perfect temperature for various cooking techniques, from simmering to boiling.

Causes of a bad Infinite Control Switch can range from electrical issues, such as short circuits or worn contacts, to mechanical failures within the switch itself.

Symptoms of a malfunctioning Infinite Control Switch include:

• Burners not heating to the set level or overheating
• Inability to adjust the burner temperature
• Burners not turning on or off when the control switch is operated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: Biscuit. For white use WP8522565. For black use WP8522566.

Color: Black. For biscuit use WP8522567. For white use WP8522565.

Color: White. For biscuit use WP8522567, for black use WP8522566.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement terminal block cover encloses the appliance's incoming power connections. It protects the wire terminals from accidental contact and debris, restoring a safe, finished connection area when the original cover is damaged or missing. What it does:

• Covers and shields the power terminal block where the supply wires connect
• Helps prevent accidental contact with live electrical connections
• Helps keep dust and debris out of the connection area
• Common signs: missing or broken cover, cover won't stay attached, visible heat damage or discoloration on the original cover

• One terminal block cover

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block per your model's service information
• Reuse existing mounting hardware; position and secure the new cover without pinching wires
• Inspect wires/terminals for heat damage or looseness and correct before reassembly

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
