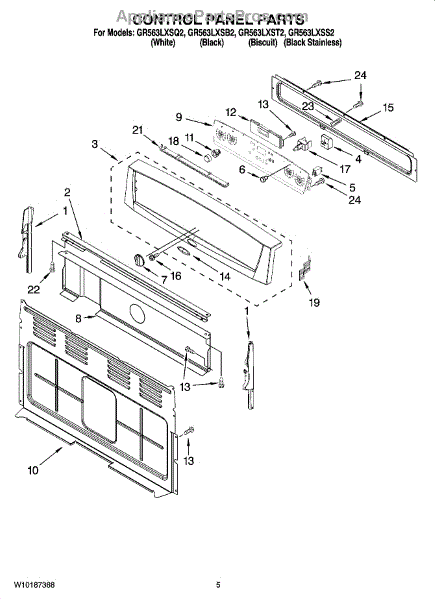

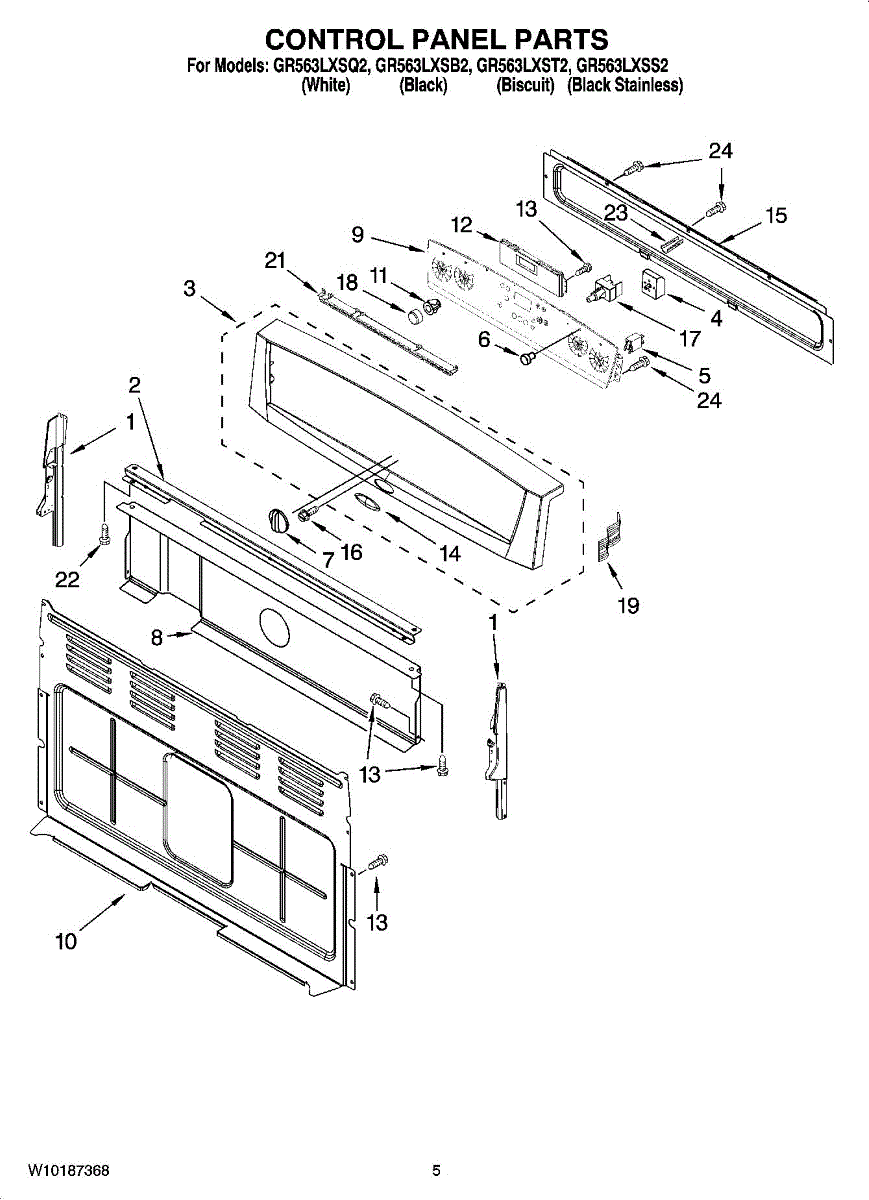

Parts for Whirlpool GR563LXSQ2: 04 - Control Panel Parts

Color: White  Note: Left side endcap

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Endcap panel that covers and finishes exposed edges of range control or cabinet panels. Replace if cracked, broken, or missing to restore appearance.

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Color: Stainless steel. For black use 9762586.For white use 9762585

Color: White. For black use 9762586. For stainless use 9762588

Color: Black. For white use 9762585. For stainless use 9762588.

Burner stuck on high heat or only working at maximum setting? This infinite control switch regulates burner temperature. DIY-friendly, 10-15 minute repair.

Burner stuck on high or won't regulate temperature? This infinite switch controls top burner heat settings. Straightforward DIY fix, 15-30 minutes.

Replace your range's surface unit indicator light when it stays on, flickers, or burns out. Signals when burners are hot for safety. Verify fit.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

White infinite control knob for range cooktop. Replaces cracked, broken, or missing knobs on your stove's burner control panel. Direct fit part.

Replace your cracked, stripped, or missing range control knob to restore front panel appearance. Attaches to the control shaft for setting selection.

Heat shield for electric ranges. Protects components from heat damage. Replace if cracked, warped, or missing to restore proper heat protection.

Color: Black. For white use 9757489

Color: White. For black use 9758489

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

Replace an unresponsive control panel button on your range with this momentary pushbutton switch. Restores user input for temperature and function controls.

White control panel button for electric ranges. Replaces cracked, broken, or missing buttons on your range's control panel. Direct fit replacement part.

Black control panel button for electric ranges. Replaces broken, cracked, or missing buttons on your range's control interface. Direct fit replacement.

Color: Biscuit. For black order WP98008545. For white order WP98008544.

Color: White. Size: 8-18 x 3/8 inch.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
