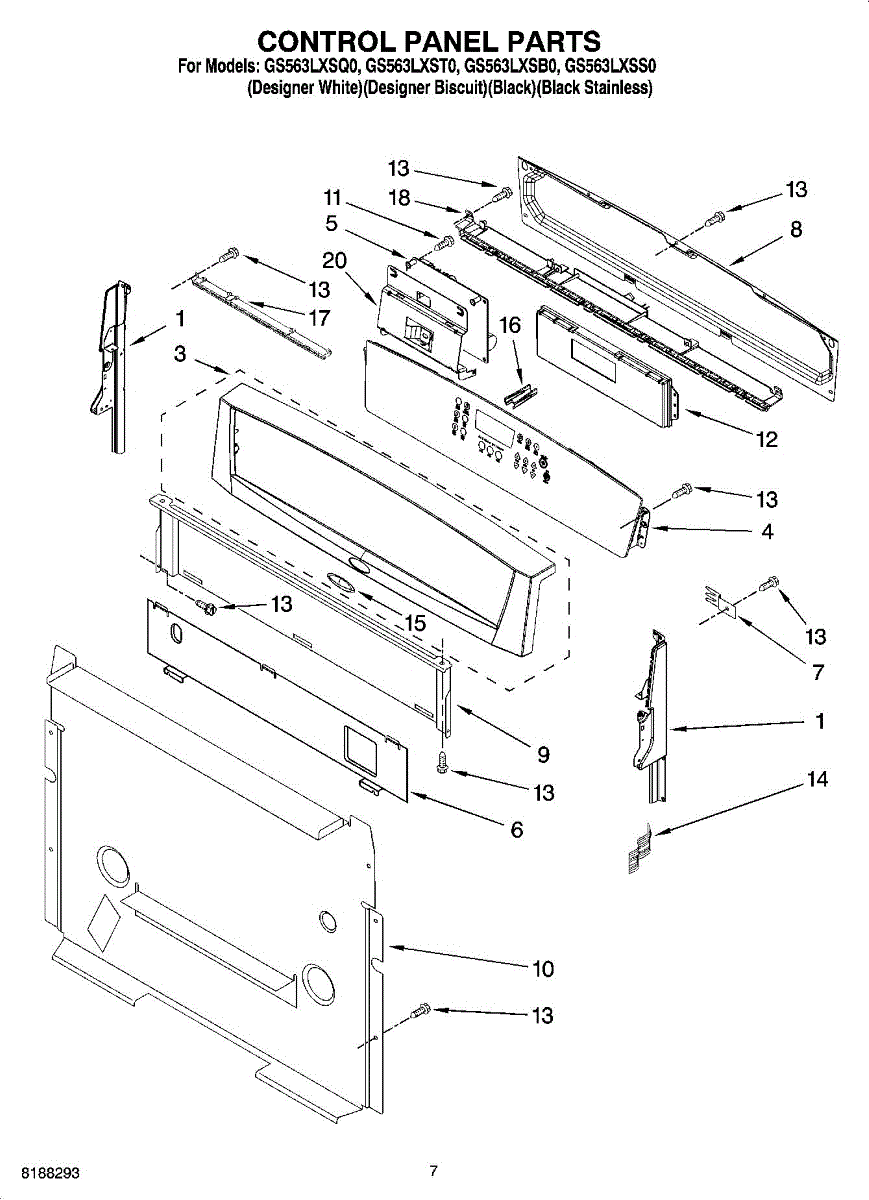

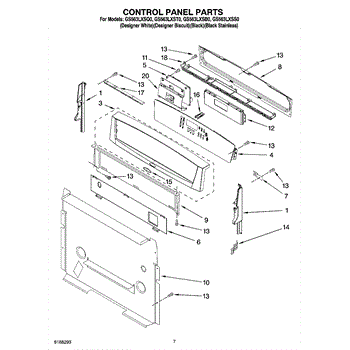

Parts for Whirlpool GS563LXST0: 05 - Control Panel Parts

This end cap panel covers and finishes the exposed edge of a control or cabinet panel for a clean, factory appearance while protecting edges from chips and wear. It restores the look and helps prevent debris buildup in the gap. What it does:

• Covers and protects the exposed edge of a control/cabinet panel to restore a finished appearance
• Hides fasteners and raw panel edges for improved cosmetics
• Prevents dirt and debris from collecting in the panel gap
• Common replacement for cracked, chipped, loose, or missing end caps

• One end cap panel

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed; align end cap and secure with original fasteners
• Handle carefully to avoid scratching the finish; do not overtighten screws
• Replace any damaged clips or mounting hardware to ensure a secure fit

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

Color: Black. For white use 9762585. For stainless use 9762588.

Color: Stainless steel. For black use 9762586.For white use 9762585

Color: White. For black use 9762586. For stainless use 9762588

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 6-32 machine screw is a direct-fit fastener used to secure appliance panels and components. It provides a reliable replacement for stripped or missing screws to restore proper fit and reduce vibration or looseness. What it does:

• Secures panels, brackets, and internal components to keep parts aligned and stable
• Restores proper fastening when original screws are missing, stripped, or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Compatible with metal-to-threaded-hole connections that use 6-32 hardware

• Use the correct driver and avoid over-tightening to prevent stripped threads or damaged components
• Disconnect power and follow appliance safety guidelines before servicing
• If threads are damaged, replace both screw and any damaged insert or nut as needed

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
