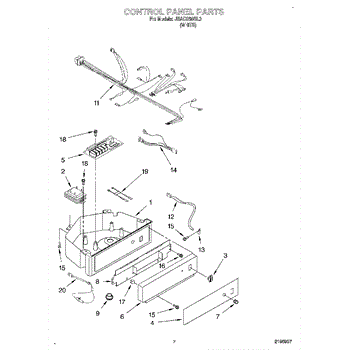

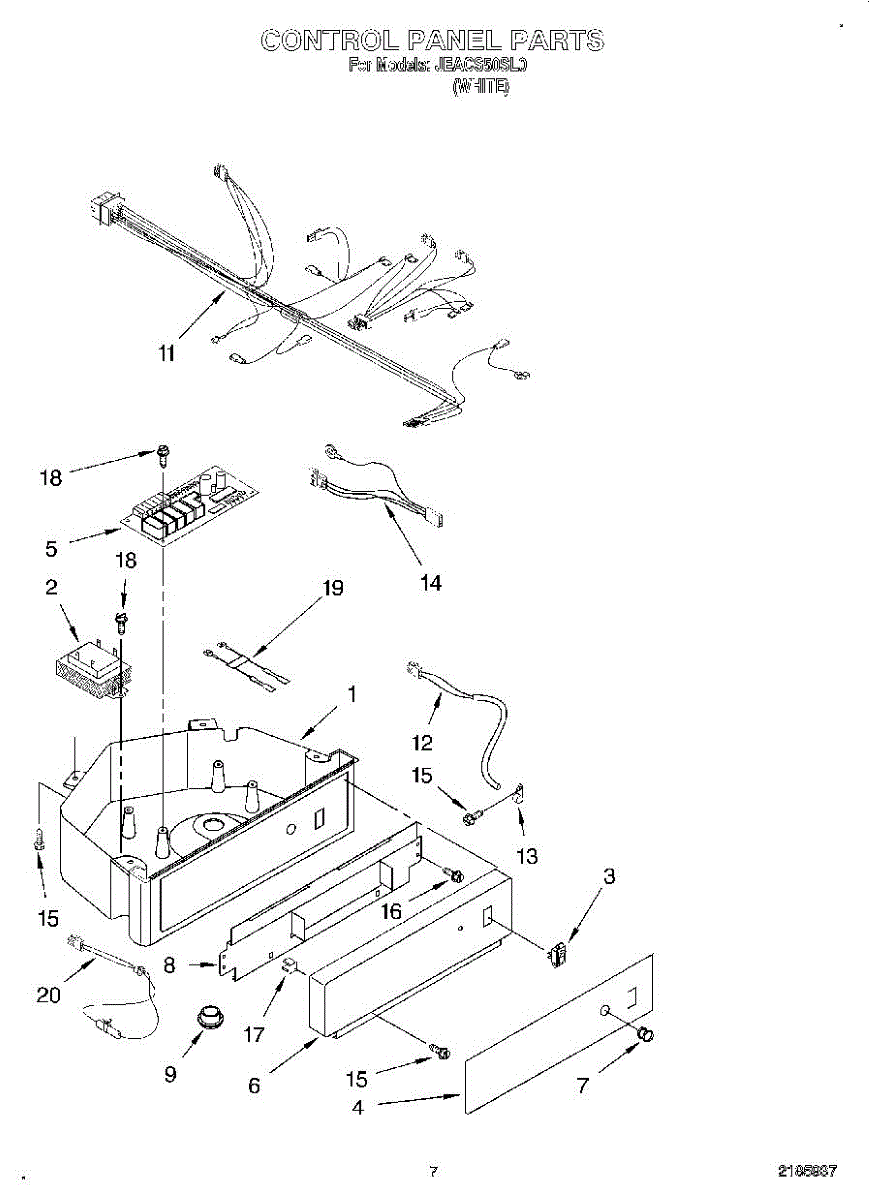

Parts for Whirlpool JEACS50SL0: 05 - Control Panel Parts

This replacement part is a control board for an ice maker. Control boards serve as the main computer that controls the functions of the ice machine.Before installing this part, unplug the ice maker and pull it away from the wall. Then unthread screws of the access cover to the control panel. Use a putty knife to pry the cover off and proceed to remove the screws securing the top panel. Use a nut driver to remove the rear panel. Lift the top panel up and have someone hold it upright. Remove the screws that hold the control housing on the top panel. Once control housing has been released, remove the screws securing the grounding wire to set the panel aside. Then with a Phillips head screwdriver, unthread the screws that hold the control board. Depress the tab to release the board. Note the orientation of the wire connectors and disconnect them from the board. Re-secure the wire connectors to their correct terminals and pop the new control board back in place. Reinstall the panels that were removed. This genuine replacement part is a control board compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand ice machines.

Ice maker won't stop making ice or overflows? The bin thermistor monitors temperature to control ice production. Easy 15-minute DIY repair fix.

This plastic clamp secures components in ice makers and food processors. Replace if broken, cracked, or missing to restore proper assembly. Verify fit.

Size: 8-18 x 5/8 inch.

Secures panels, brackets, and internal components in appliances. Replace missing, stripped, or corroded screws to restore secure assembly and alignment.

Push-in nut for ice makers. Secures internal components during assembly and repair. Replace if missing, stripped, or damaged during maintenance work.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.
