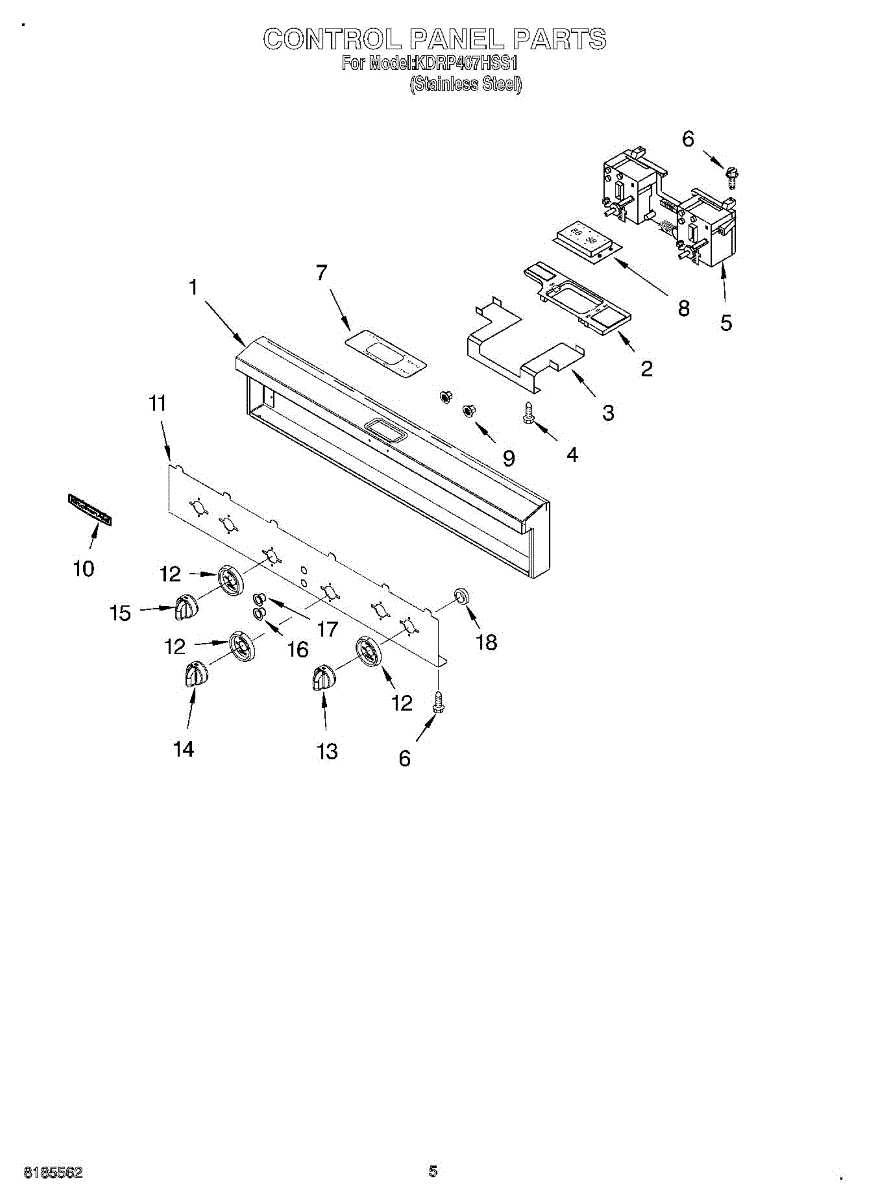

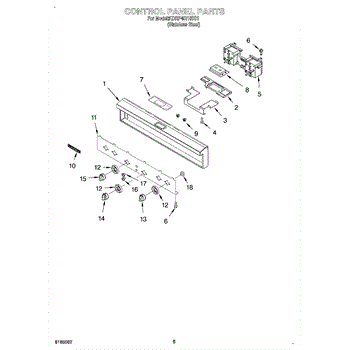

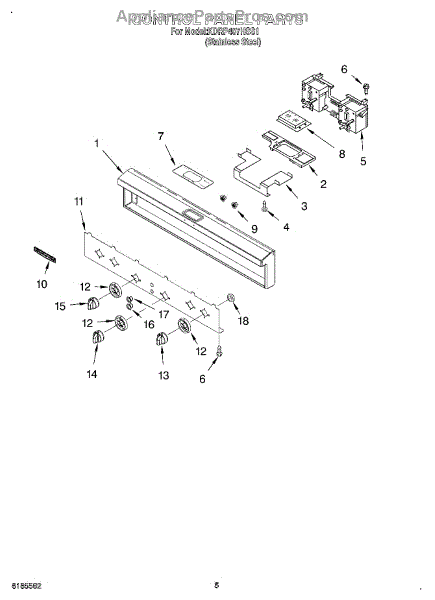

Parts for Kitchenaid KDRP407HSS1: 04 - Control Panel Parts

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement part is an oven control board and display. It houses the buttons that users push to control oven operation, including bake functions, temperature, and access to the timer and clock. Over time and through exposure to heat and moisture, the control board may corrode and fail. If the control board is damaged, the oven may not operate correctly or at all.To replace the oven control board, first unplug the oven from the wall. Next, remove the rear access panel from the stove. This should reveal the back of the control board. Remove the mounting screws and disconnect the wiring. Remove the old control board. When ready to install the new board, first remove the protective film, then place it on the slot. Install the mounting screws and reconnect the wiring. Replace the oven's rear access panel. Always wear gloves when repairing an oven.This is a genuine OEM replacement part. It's manufactured by Whirlpool and will fit Whirlpool, KitchenAid, and Kenmore ovens.

This display module is the electronic board that illuminates the control-panel readout on your oven. Replacing it restores a clear, reliable view of the clock, temperature, and status information so you can set and monitor cooking precisely.

• Drives the control-panel display for time, temperature, and function/status indications
• Receives signals from the main control and renders prompts and error codes
• Common symptoms: dim/faded or blank display, missing segments, flickering, intermittent readout
• Helps when the oven operates but the display is not readable

• Disconnect power at the breaker and allow the unit to cool before servicing
• Remove the control panel/console to access the module; note wire locations or take photos
• Handle the board by the edges and transfer any mounting hardware from the original
• Restore power, set the clock, and verify display operation

This replacement control knob restores a worn or damaged gas range control interface so you can safely and accurately adjust burner/oven settings. It gives a secure grip and reliable rotational control for normal operation. What it does:

• Fits onto the gas control shaft to allow manual selection of burner or oven settings.
• Restores proper tactile feel and alignment when the original knob is cracked, stripped, or missing.
• Helps prevent accidental slips or imprecise adjustments that make flame/temperature control difficult.
• Common symptom: knob spins, won't engage the valve, or is physically broken and cannot be used.

• Turn off gas supply and electric power to the appliance and allow all surfaces to cool before attempting replacement.
• Remove the old knob by pulling it straight off the control shaft; align the new knob to the splines and push it firmly into place.
• Do not force the knob if it doesn't seat smoothly; double-check alignment.

This replacement temp/time control knob restores a secure, easy-to-read interface for setting oven temperature and timer functions. It provides a simple push-on replacement for cracked, worn, or missing control knobs. What it does:

• Rotates to adjust oven temperature or timer settings; tactile fit helps prevent slipping
• Replaces cracked, broken, faded, or missing knobs that are hard to grip or read
• Restores proper alignment on the control shaft for accurate manual adjustments
• Helps eliminate intermittent or imprecise control caused by damaged knobs

• Disconnect power to the appliance before servicing; follow all safety precautions
• This is a push-on knob—pull the old knob straight off the control shaft and align splines before pushing the new knob fully into place
• Do not force the knob; if it does not seat correctly, inspect the control shaft for damage
• If the control shaft is damaged or the knob still slips after installation, the control assembly may require replacement

This selector knob is the user-facing control dial that lets you choose cycles or settings on the appliance. It restores a positive grip and clear detent feedback so the control panel is easy to operate. What it does:

• Replaces a worn, cracked, or missing selector knob to restore manual control of cycles/settings
• Provides a keyed fit to align with the control shaft and maintain proper detents
• Helps stop slipping, spinning, or loose feel when turning the control
• Useful when the original knob is faded, damaged, or no longer engages the shaft

• One selector knob

• Remove power to the appliance before servicing to avoid shock or injury
• Pull the old knob straight off the control shaft; press the new knob onto the shaft until seated
• If resistance or misalignment occurs, verify shaft type and knob orientation before forcing

This is the Enter button used on the appliance control panel to confirm selections and start keypad commands. It restores normal keypad operation when the original enter key is cracked, worn, or missing. What it does:

• Provides a tactile contact point for the control panel to register "enter" or confirm commands
• Replaces a cracked, loose, or missing enter key that won't actuate the switch
• Helps resolve symptoms like an unresponsive enter key or inability to confirm selections
• Works with the existing control panel and switch assembly to restore user input

• One Enter button

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access may require removing the control panel or control board cover—keep track of screws and fasteners
• Replace the key cap carefully; avoid forcing parts or bending contacts
• The underlying switch or membrane may need service
