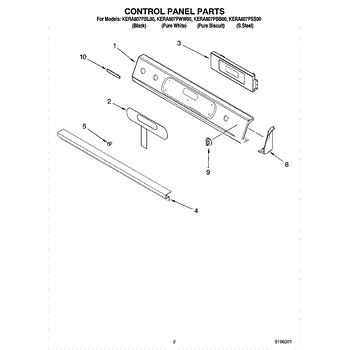

Parts for Kitchenaid KERA807PBB00: 02 - Control Panel Parts

Color: Biscuit

Color: Black

Color: White

This is a switch membrane, also known as a keypad, that is used with ovens, ranges, and stoves. The part is located in the center of the front of the appliance. It is made up of several layers and acts as a switch to turn the appliance on and off. It also includes several buttons so users can choose cooking settings, set temperatures, and otherwise alter the operation of the appliance.Regular use or damage can cause the switch membrane to become damaged. When this occurs, the buttons may not work correctly or there may be no way to turn the appliance on and off. If this is the case with a switch membrane, it should be replaced. Unplug the appliance and remove the screws from the back. Find the tabs on the side and press them to remove the housing. Remove the bottom screws to take off the ribbon connector. Remove the original part and replace it with the OEM replacement component.Created for compatibility with KitchenAid ranges, ovens, and stoves, the switch membrane is sold as a single part. This is an authentic OEM replacement component that is sourced straight from the manufacturer.

Screw for side trim.

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

Color: Black

Color: Biscuit

Color: Black

Color: White
