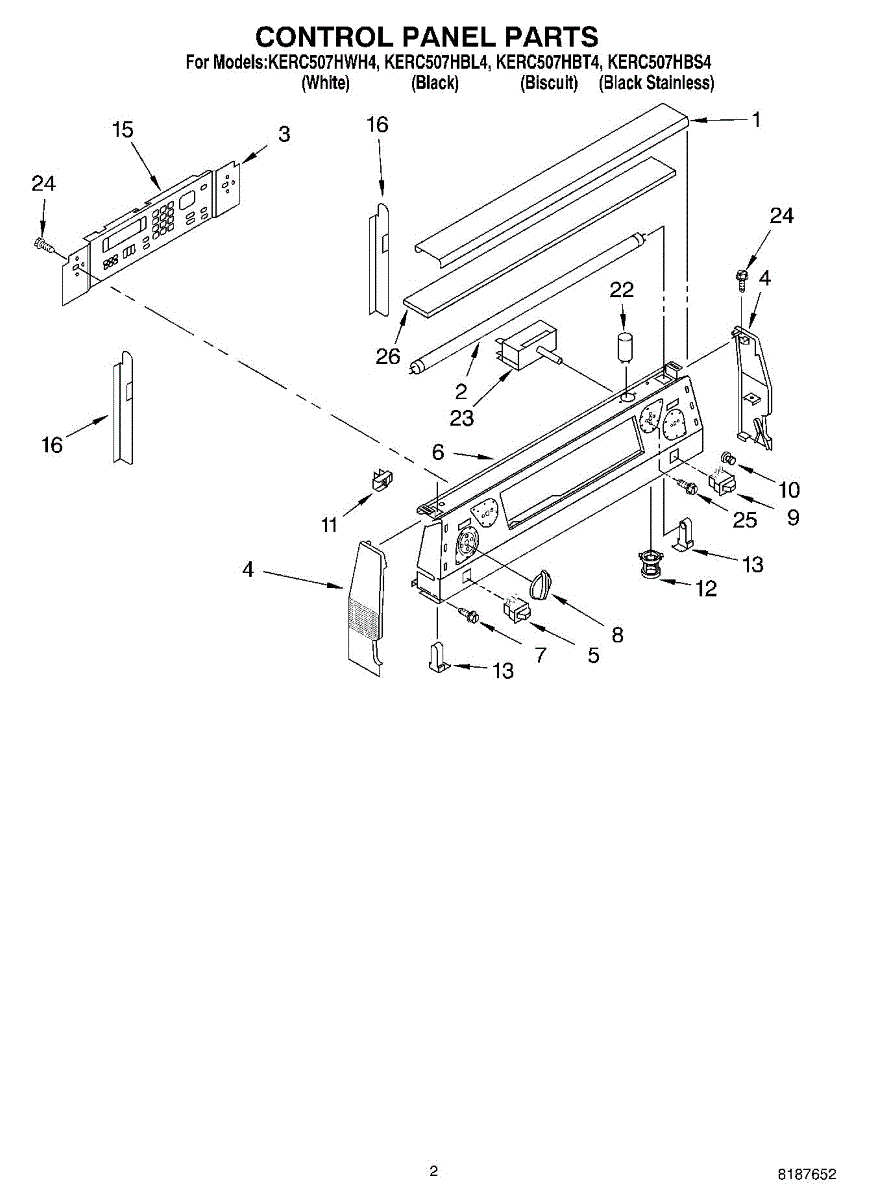

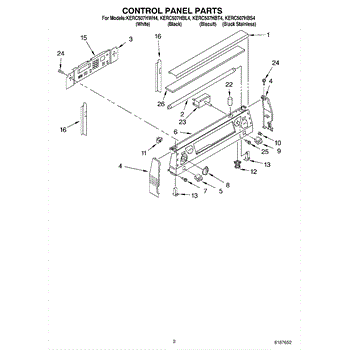

Parts for Kitchenaid KERC507HBS4: 02 - Control Panel Parts

Size: 26 inches long. F18t8/cw/k26.

This replacement screw restores secure fastening for appliance panels and components, helping stop loose parts and rattling so controls and panels stay aligned. Use when original screws are missing, stripped, or damaged. What it does:

• Secures panels, trim, control boards, brackets, or components to the appliance frame
• Stops rattling, vibration noise, and loose or misaligned parts caused by missing or damaged fasteners
• Replaces stripped, corroded, or missing screws to restore proper fit and function
• Matches OEM fit and threading for straightforward hardware replacement when the correct screw is identified

• Turn off power and unplug the appliance before accessing internal components
• Use the correct screwdriver or bit to avoid stripping the head; do not force mismatched drivers
• Tighten until snug—do not overtighten, which can strip threads or crack plastic
• Keep removed hardware organized and verify the replacement screw matches the original before installation

Color: Biscuit. Other colors: For black use WP9750372FF, for white use WP9750372FW.

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

Color: White

Color: Black

Red indicator lens that snaps over a control-panel indicator light to restore visibility and color. Replaces cracked, faded, or missing indicator covers so status lights are easier to see during use. What it does:

• Covers and protects the control-panel indicator light from dirt and damage.
• Restores the red color and improves visibility when the original lens is faded or discolored.
• Keeps light directed through the panel for a clear status signal.
• Common symptoms: cracked or missing lens, washed-out/red light appears dim or uneven.

• Disconnect power to the appliance before attempting replacement to avoid shock or accidental activation.
• Typically snaps into the control-panel opening; some models may use small retainers or screws—retain any fasteners from the original part.
• Replace only with the correct lens to ensure proper fit and color.
• If the indicator still appears dim after replacing the lens, inspect the bulb/LED and wiring (replace only after verifying power is off).

Fluorescent light bulb starter holder.

For the thermal fuse located in the wire harness between the terminal block and electronic control board order WP9781691.

Fluorescent light bulb starter. 22W. FS-25.

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

For small element with rating of 1800Watt. Typically for right front or left rear element.

This dual infinite surface element switch controls the inner and outer sections of a dual burner. Replacing a faulty switch restores proper selection and smooth temperature control when the burner won't heat, stays on high, or behaves erratically.

• Varies power to both circuits of a dual surface element for adjustable heat
• Enables inner-only or both-ring operation, based on knob position
• Interfaces with the control knob to set and modulate heat levels
• Typical symptoms: no heat, only one ring heats, stuck on high, won't shut off, or inconsistent temperatures

• Disconnect power at the breaker before servicing; ranges use high voltage
• Note terminal labels and wire positions; transfer wires one at a time to matching terminals on the new switch
• Secure the switch to the control panel, align the shaft, and reinstall the knob

Size: 10-16 x 3/8 inch.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
