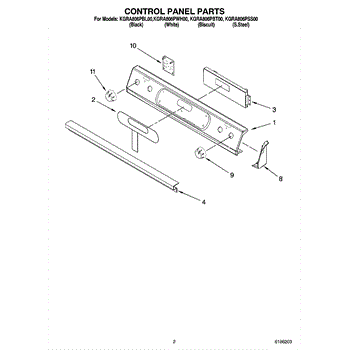

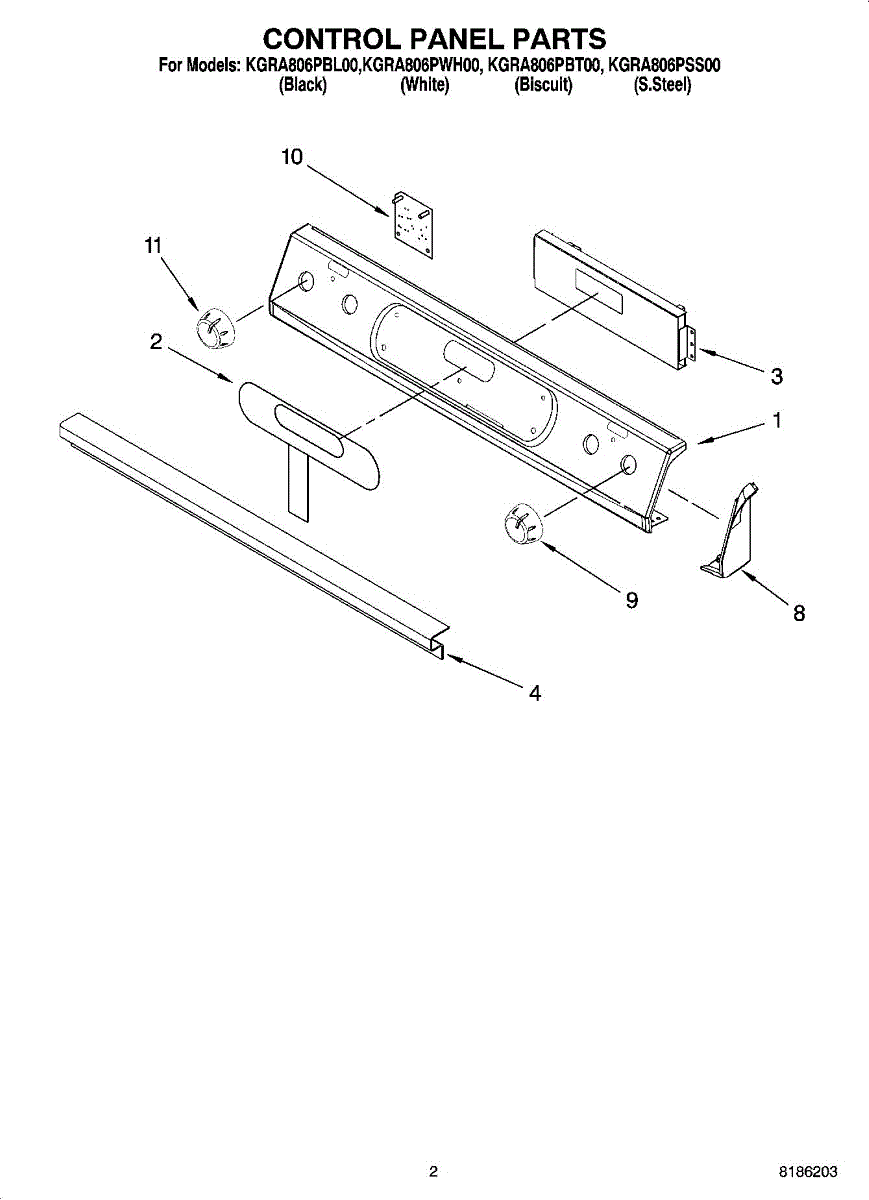

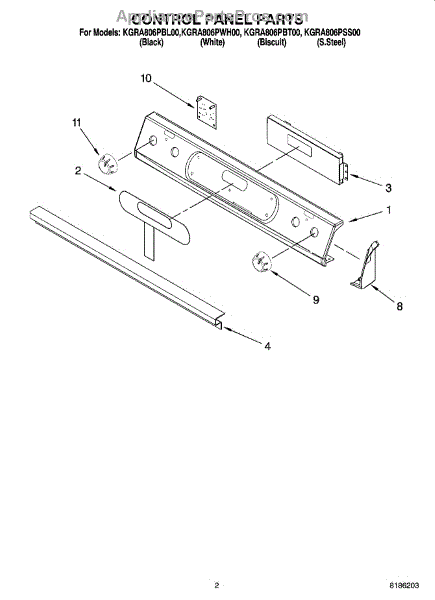

Parts for Kitchenaid KGRA806PSS00: 02 - Control Panel Parts

This membrane switch touch pad replaces the user-interface panel that registers key presses and sends commands to the appliance control. Restores responsive button operation and reliable touch control for the console. What it does:

• Registers user button presses and transmits signals to the control board
• Replaces worn, faded, or unresponsive touch buttons to restore normal operation
• Can resolve intermittent or non-working console buttons and display input issues
• Fits into the console assembly and mates with the control electronics

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove control console trim carefully to avoid damaging clips or ribbon cable
• Handle the flex/ribbon connector and contacts gently; avoid touching conductive traces

This membrane switch in a stainless finish is the touchpad/keypad behind the oven or range control console. It registers your button presses and sends them to the control board to restore reliable input when keys stop responding.

• Provides the touch-sensitive keypad for selecting bake, broil, temperature, timer, and other functions
• Ribbon cable carries keypad signals to the electronic control (clock/oven control)
• Typical symptoms of failure: some or all keys unresponsive, intermittent inputs, unintended beeps, or keypad-related error messages
• A failed keypad can prevent the appliance from starting or accepting commands

• Disconnect power at the breaker before servicing
• Remove the control console/rear cover to access the keypad and control board
• Carefully unplug the ribbon cable; avoid creasing and keep contacts clean
• Align and mount the new membrane, reconnect, reassemble, and test all keys

Screw for side trim.

This is a replacement mounting screw used to secure panels and small components on Whirlpool appliances, restoring proper fastening to reduce rattling and prevent parts from shifting during operation. What it does

• Secures panels, trim pieces or small brackets to the appliance frame or components
• Helps stop loose parts that cause rattling or vibration during use
• Keeps controls and external trim aligned and properly seated
• Replaces missing or worn screws that can lead to unsecured panels or gaps

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and tighten until snug; do not overtighten to avoid damaging threads or plastic parts
• Replace with the same screw type and size for proper fit and function

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
