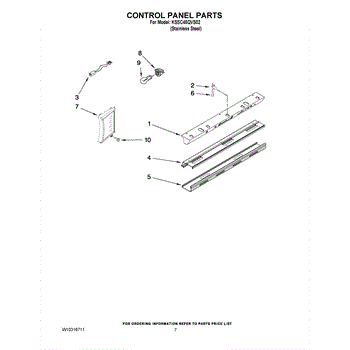

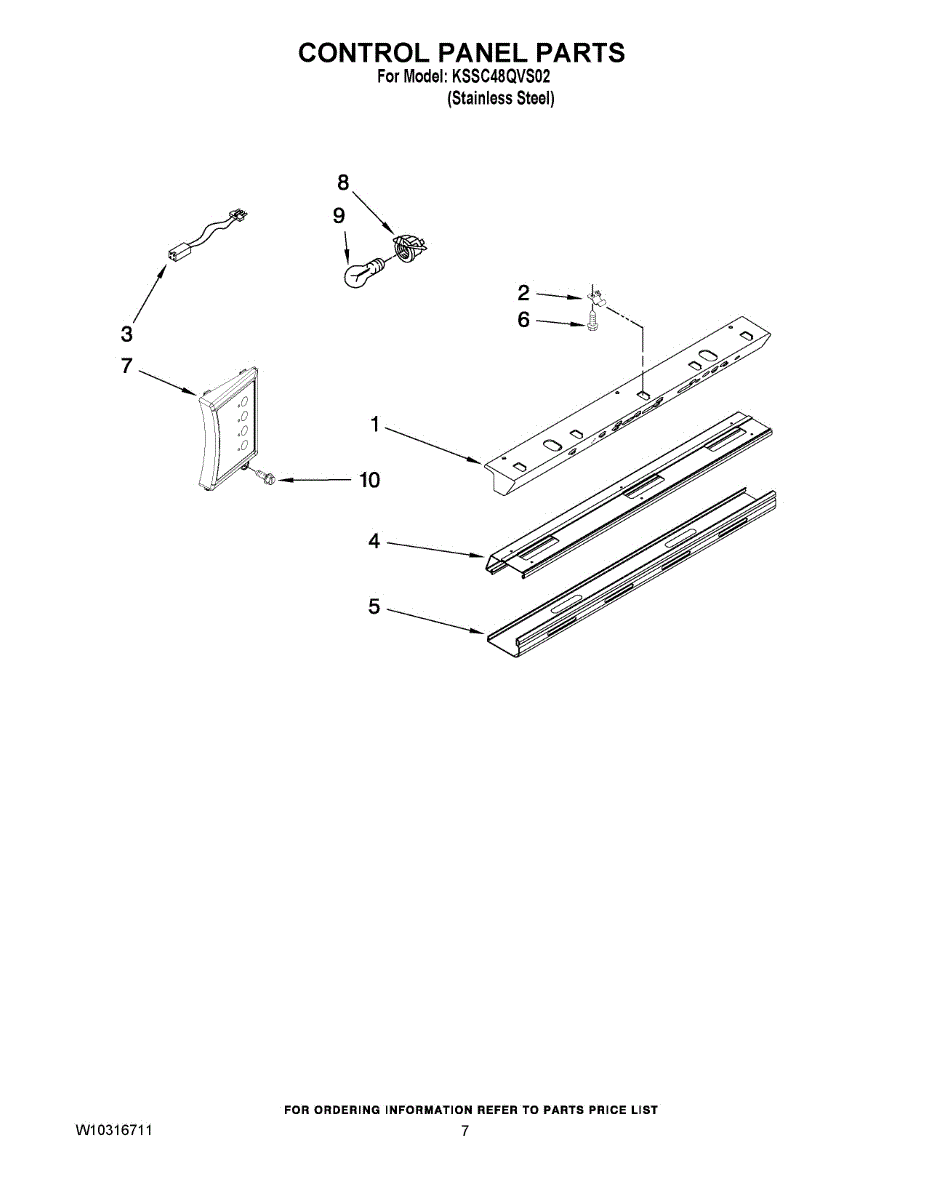

Parts for Kitchenaid KSSC48QVS02: 05 - Control Panel Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This control box assembly houses the appliance's main control electronics to manage cycles and user commands, restoring proper control operation when the original module fails. It fits into the control console and connects to the wire harness. What it does:

• Replaces a failed or unresponsive control module to restore electronic control of settings and cycles
• Allows the user interface and timers to send commands to the appliance's components
• Resolves common symptoms like no-display, unresponsive buttons, or loss of cycle control
• Works with the existing wire harness and console mounting points

• One control box assembly

• Disconnect power before starting — electric shock risk. If appliance has a disconnect plug, remove it or turn off circuit breaker.
• Handle the module by its edges and avoid touching circuit traces or connectors to prevent static damage.
• Transfer any required mounting brackets, bezels, or user-interface parts from the old unit.
• After installation, restore power and run a quick diagnostic or test cycle to ensure proper operation.

Secures internal box components in your refrigerator. Replace if broken or missing to prevent rattling and ensure proper alignment. Confirm fit with your model.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This user control and display board manages the electronic functions and shows status information for your appliance's advanced features. The board processes user inputs and displays settings, timers, and operational status on a digital screen. Replace this board if the display shows garbled text, buttons don't respond properly, or if certain programmed functions stop working correctly.

Light bulb socket holds and powers the bulb inside your refrigerator. Replace if lights don't work despite new bulbs or if socket is cracked or damaged.

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

Replacement screw that fastens panels, brackets, and internal components. Install when original is stripped, rusted, missing, or lost during repairs.
