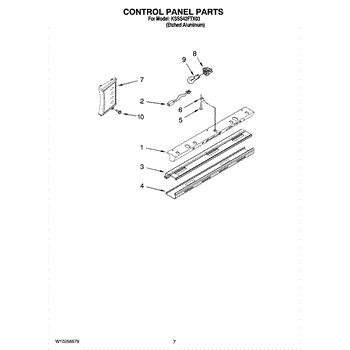

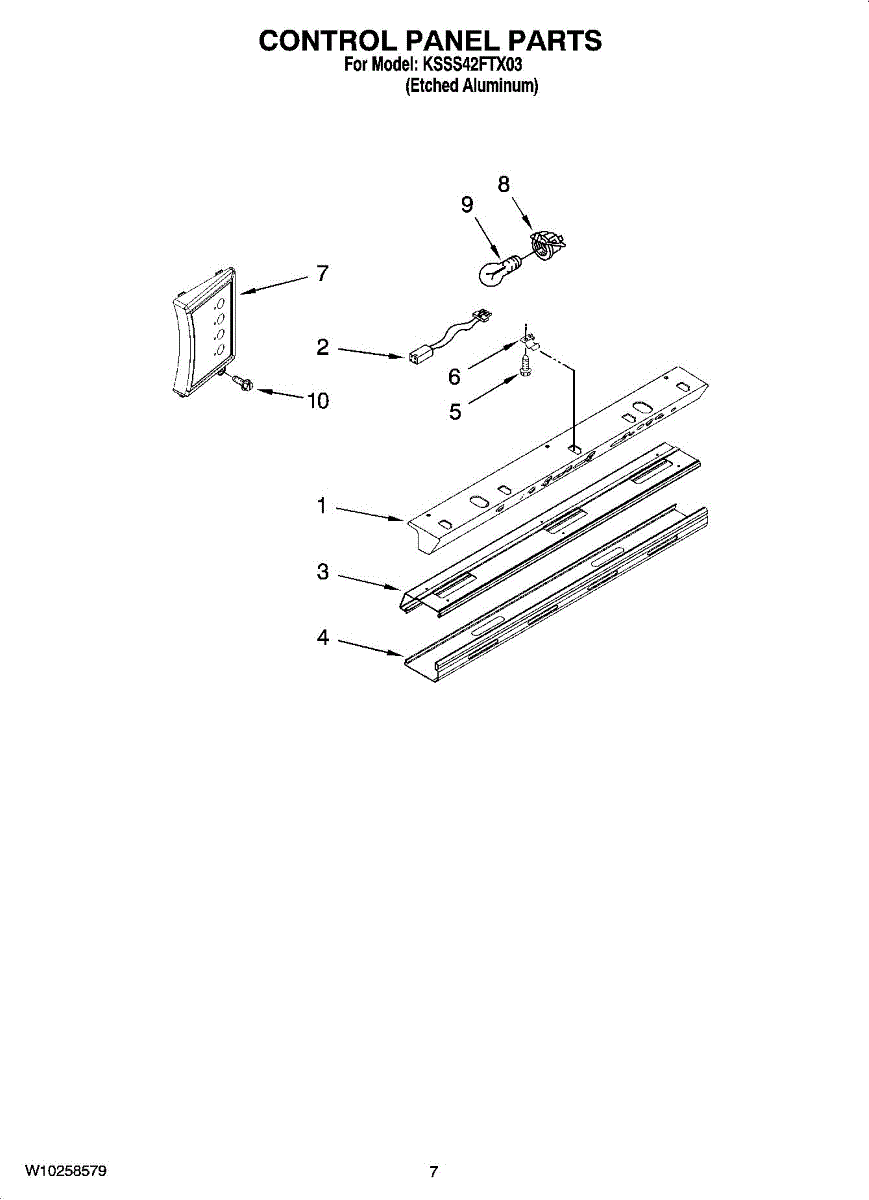

Parts for Kitchenaid KSSS42FTX03: 05 - Control Panel Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This electronic control replaces the failed control box that manages your appliance's core functions, restoring reliable operation of timed cycles and powered components. Installs behind the console or rear access panel. What it does:

• Provides the main electronic control for timed cycles, relays and sensor inputs
• Restores power and command signals to motors, valves and displays when the original control fails
• Helps stop intermittent or erratic operation caused by a faulty control
• Addresses symptoms such as blank or unresponsive controls, no start/no power, or inconsistent cycle behavior

• Disconnect power to the appliance before starting to reduce shock risk.
• Handle the board/box carefully and avoid static discharge; use an ESD strap if available.
• Match connectors and mounting locations exactly; do not force connectors into place.
• After installation, restore power and run a test cycle to ensure proper operation.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Secures internal box components in your refrigerator. Replace if broken or missing to prevent rattling and ensure proper alignment. Confirm fit with your model.

This user control and display board manages the electronic functions and shows status information for your appliance's advanced features. The board processes user inputs and displays settings, timers, and operational status on a digital screen. Replace this board if the display shows garbled text, buttons don't respond properly, or if certain programmed functions stop working correctly.

Light bulb socket holds and powers the bulb inside your refrigerator. Replace if lights don't work despite new bulbs or if socket is cracked or damaged.

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

Replacement screw that fastens panels, brackets, and internal components. Install when original is stripped, rusted, missing, or lost during repairs.
