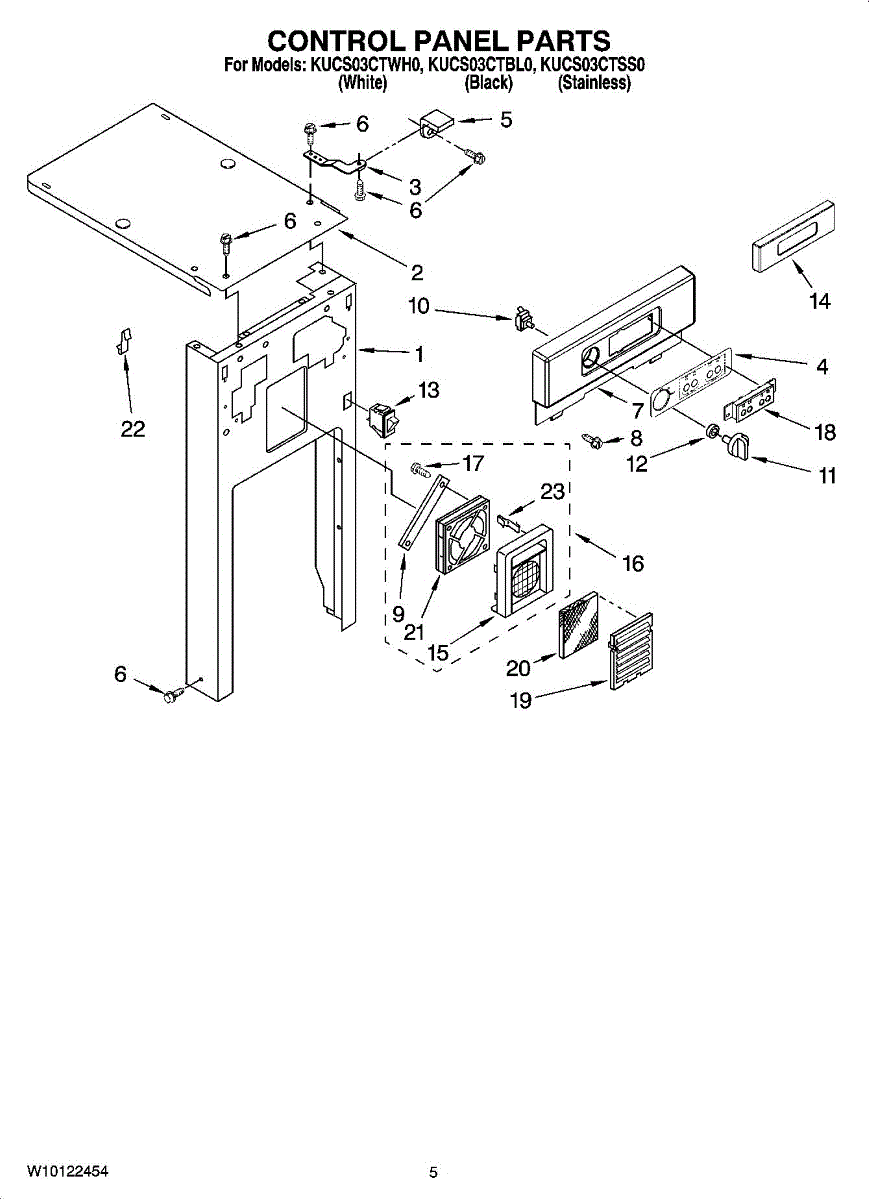

Parts for Kitchenaid KUCS03CTBL0: 05 - Control Panel Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

This replacement insert restores the proper fit and finish of the appliance where a small trim or mounting piece is missing or damaged. It helps secure adjacent panels and prevents gaps or rattling for a cleaner, quieter cabinet. What it does

• Replaces a damaged or missing trim/mounting insert to restore fit and appearance
• Secures panels or components to reduce movement and rattling
• Helps maintain proper alignment of surrounding parts
• Addresses symptoms like visible gaps, loose trim, or vibration noises

• One insert

• Disconnect power before accessing panels or internal areas
• Remove the surrounding trim or panel to access the insert; basic hand tools may be required
• Handle carefully to avoid scratching finished surfaces; do not force parts into place
• Replace fasteners or clips to ensure a secure fit

Size: 8 x 1/2 ab.

This black control escutcheon is the front trim for your appliance's control area, restoring a finished appearance and protecting the control board and buttons from spills and wear. It's a direct-fit replacement that keeps the control area looking and functioning as intended. What it does

• Replaces damaged, cracked, or scratched control panel trim to improve appearance
• Shields control buttons and electronic components from light splashes and debris
• Restores proper alignment and spacing for control knobs/buttons
• Helps prevent contaminants from reaching internal control components

• One black control escutcheon

• Disconnect power to the appliance before starting any repair to avoid shock
• Remove any knobs, trim pieces, or screws securing the existing escutcheon; keep fasteners for reassembly if not supplied
• Handle trim carefully to avoid scratching the new finish; align tabs and screw holes before fastening

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The On/Off Rotary Switch Kit is an OEM part for Whirlpool trash compactors. This kit includes the rotary switch and necessary components to control the power and operation of the trash compactor, allowing users to turn the unit on and off easily.

Causes of a bad rotary switch can include electrical wear and tear, damage from repeated use, or issues with the internal contacts. Over time, these factors can lead to the switch becoming unresponsive or failing to control the compactor properly.

Symptoms of a bad rotary switch include:

• The trash compactor not turning on or off
• Intermittent operation of the compactor
• The switch feeling loose or unresponsive
• Electrical sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This white rotary switch knob restores smooth, accurate control of your appliance's settings. Replace a cracked, stripped, or missing knob to regain a secure grip and positive engagement with the control without replacing the underlying switch.

• Attaches to the rotary control switch shaft; turning the knob selects the setting
• Provides a clear pointer and solid feel for precise adjustments
• Typical symptoms: cracked or missing knob, loose fit, spins without engaging, or hard to select settings
• Fresh cosmetic look to replace yellowed or worn originals

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the shaft; avoid prying against the panel
• Align the knob's insert with the switch shaft shape and press on until fully seated
• Inspect the switch shaft for wear or damage

The Start Switch Knob is an OEM part for Whirlpool trash compactors. This knob allows you to control the start function of the trash compactor, initiating the compacting cycle when turned.

Causes of a bad Start Switch Knob can include wear and tear from frequent use, damage due to excessive force, or issues with the internal connection between the knob and the switch mechanism.

Symptoms of a bad Start Switch Knob include:

• Difficulty turning the knob or engaging the start function
• The compactor not starting or stopping intermittently
• The knob feeling loose or coming off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

Color: Black

Size: 10-24 x 3/8 inch.

This off switch is the OEM-style replacement that controls the on/off circuit for the appliance door/light area, restoring normal power or light behavior. It fits into the original switch location and reconnects the circuit safely. What it does:

• Opens or closes the circuit to turn the light or selected function off when the door is closed or switch is pressed
• Stops the light from staying on if the door switch fails
• Restores control when a worn or damaged switch prevents power interruption
• Helps resolve symptoms like lights that won't turn off, intermittent operation, or unresponsive door-controlled functions

• Disconnect power to the appliance before starting any repairs
• Remove the access panel or door trim to reach the switch; keep screws and parts organized
• Handle terminals carefully; avoid bending or pulling wires—use proper connectors if needed
• Test function after reassembly to confirm proper operation

Replace a broken or missing air freshener cover. This black cover shields and secures the charcoal deodorizer cartridge, helping it stay in place so odors are contained and the compartment maintains a clean, finished look. What it does:

• Covers and protects the deodorizer/charcoal air freshener compartment
• Holds the odor-absorbing cartridge securely in place
• Helps contain odors by ensuring the cartridge is seated correctly
• Common symptoms: cracked, warped, loose, rattling, or missing cover

• 1 black air freshener/filter cover

• Disconnect power before servicing
• Open the access area for the deodorizer/filter
• Remove the old cover; position and secure the new cover per the design (snap or fastener)
• The deodorizer/filter is properly seated and the cover is fully engaged

Color: black. It measures about 4-1/2 inches wide by 4-1/2 inches high.
