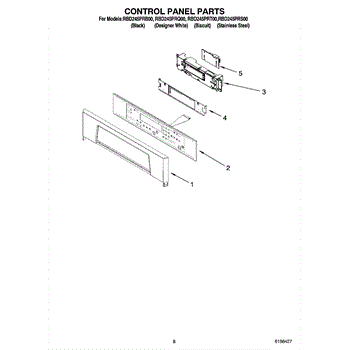

Parts for Whirlpool RBD245PRB00: 06 - Control Panel Parts

This control panel assembly replaces the front user interface for your appliance, restoring button access and the finished white appearance. It provides the housing and tactile surface where the touchpads or buttons are mounted for normal operation. What it does:

• Houses the user controls and provides the front surface for buttons or touchpads
• Restores visible cosmetic finish and button access when the original panel is cracked, faded, or damaged
• Enables the control interface to be properly aligned and secured to the appliance front
• Works with the existing electronic components and fasteners to allow normal control operation

• One control panel assembly (white) as shown

• Designed to replace the existing front control panel; may require removal of trim and disconnecting power before beginning
• Disconnect power at the breaker or unplug the appliance before servicing to avoid electrical shock
• Handle parts carefully to avoid scratching the finished surface and follow OEM disassembly steps for your model
• If the replacement requires transfer of switches, lenses, or small parts, organize removed pieces for correct reassembly

This control panel assembly replaces a worn or damaged front touch/control surface and restores proper user controls and display visibility on the range or oven. Designed to match original fit and appearance. What it does

• Houses the touch buttons, display window and associated front-facing controls used to set oven functions and temperatures.
• Replaces cracked, faded, or unresponsive control surfaces that can interfere with entering settings or reading the display.
• Restores a secure, finished face for the console and helps protect internal control electronics.
• Compatible with service-side mounting and connects to the internal control board via factory wiring harnesses.

• Handle carefully to avoid scratching the finished face; use soft gloves if available.
• Disconnect power at the breaker or unplug the appliance before beginning any service.
• Installation typically requires removal of the oven/range console trim and attachment screws; keep fasteners for reuse.

Color: White

The Membrane Switch is an OEM component specifically designed for Whirlpool free-standing electric ranges, responding to control inputs. This switch features an integrated protective seal and above-illuminated contacts.

Causes of a bad membrane switch include splitting or cracking in the insulated layer from years of use, mineral deposits stiffening and flexing during actuation, or short-circuited traces resulting from moisture penetration.

Symptoms of a bad membrane switch include:

• Unresponsive or intermittent buttons requiring multiple presses
• Blackened or burnt seal from electrical leakage
• Complete circuit failure disabling inputs
• Inaccurate temperature or function selection

Color: Bisque

Replace yours today with this genuine OEM Whirlpool switch. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, fortified seals contain signals while enduring rigorous routines.

Color: Black

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
