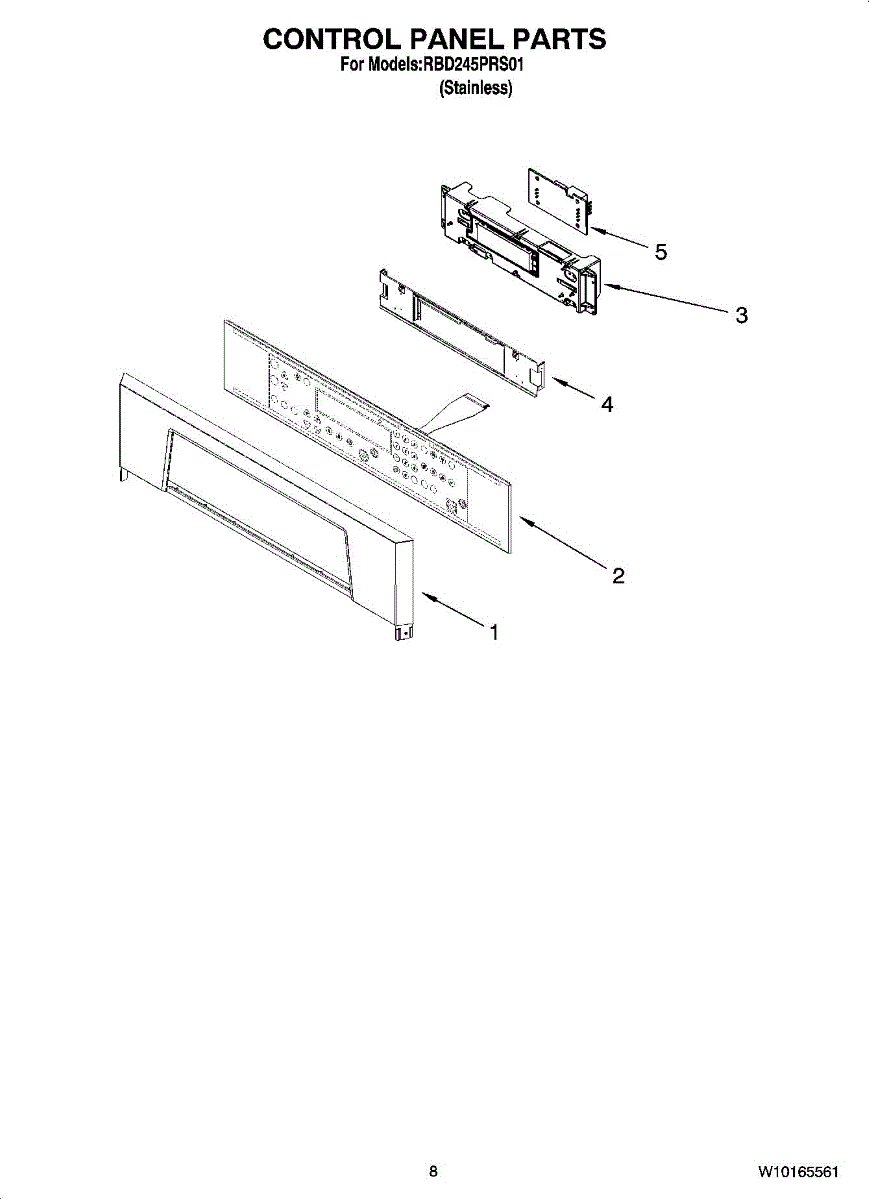

Parts for Whirlpool RBD245PRS01: 06 - Control Panel Parts

This control panel assembly replaces a worn or damaged front touch/control surface and restores proper user controls and display visibility on the range or oven. Designed to match original fit and appearance. What it does

• Houses the touch buttons, display window and associated front-facing controls used to set oven functions and temperatures.
• Replaces cracked, faded, or unresponsive control surfaces that can interfere with entering settings or reading the display.
• Restores a secure, finished face for the console and helps protect internal control electronics.
• Compatible with service-side mounting and connects to the internal control board via factory wiring harnesses.

• Handle carefully to avoid scratching the finished face; use soft gloves if available.
• Disconnect power at the breaker or unplug the appliance before beginning any service.
• Installation typically requires removal of the oven/range console trim and attachment screws; keep fasteners for reuse.

Color: Black

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
