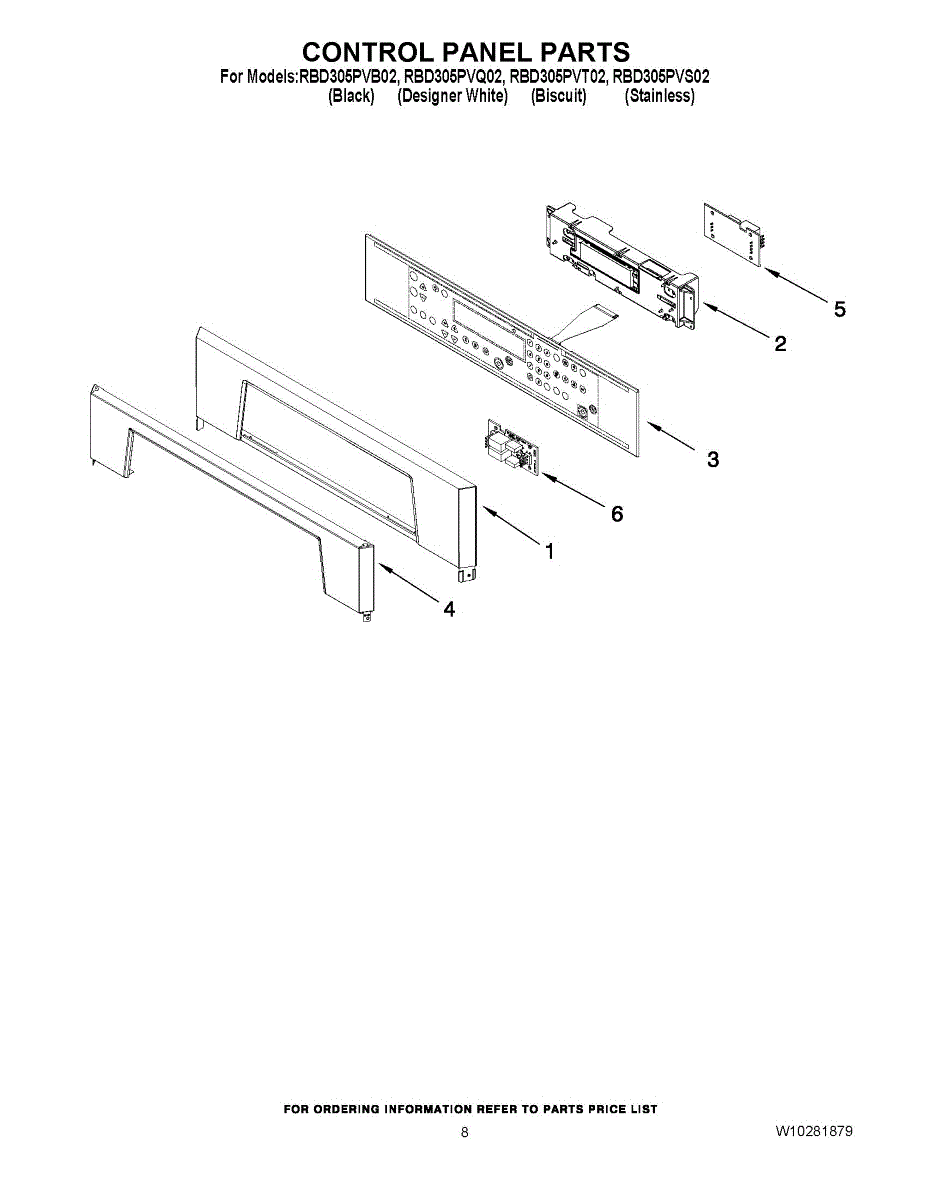

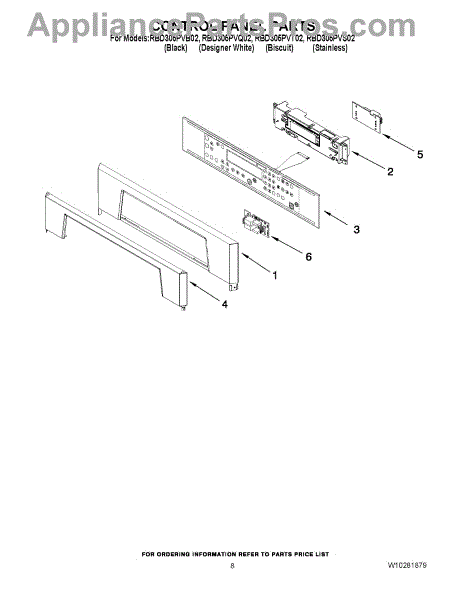

Parts for Whirlpool RBD305PVS02: 06 - Control Panel Parts

If your oven display is unreadable or buttons don't respond, this control panel assembly restores your console. Moderate DIY repair with careful disassembly.

Black control panel assembly that forms the front interface surface for your oven. Replace if cracked, broken, or mounting tabs are damaged or missing.

Replacement trim panel for your oven. Installs along the front control area to provide a finished appearance. Order a new panel if yours is cracked or damaged.

Restores the front appearance of your oven's control panel area. Replace this stainless steel trim cover if the original is dented, scratched, or damaged.

This latch sister board controls the oven's motorized door lock used for self-clean and safety interlock functions. Replacing a failed board restores reliable lock/unlock operation so your oven can start cycles and complete cleaning as designed.

• Powers the door-latch motor when commanded by the main control
• Engages or releases the door lock during self-clean cycles
• What's included: One latch sister board.

Install notes:

• Disconnect power at the breaker before servicing
• Use ESD protection and handle the board by the edges
• Access is typically behind the control/upper panel; photograph wiring and transfer connectors one at a time
• After reassembly, verify latch operation before running a full self-clean
