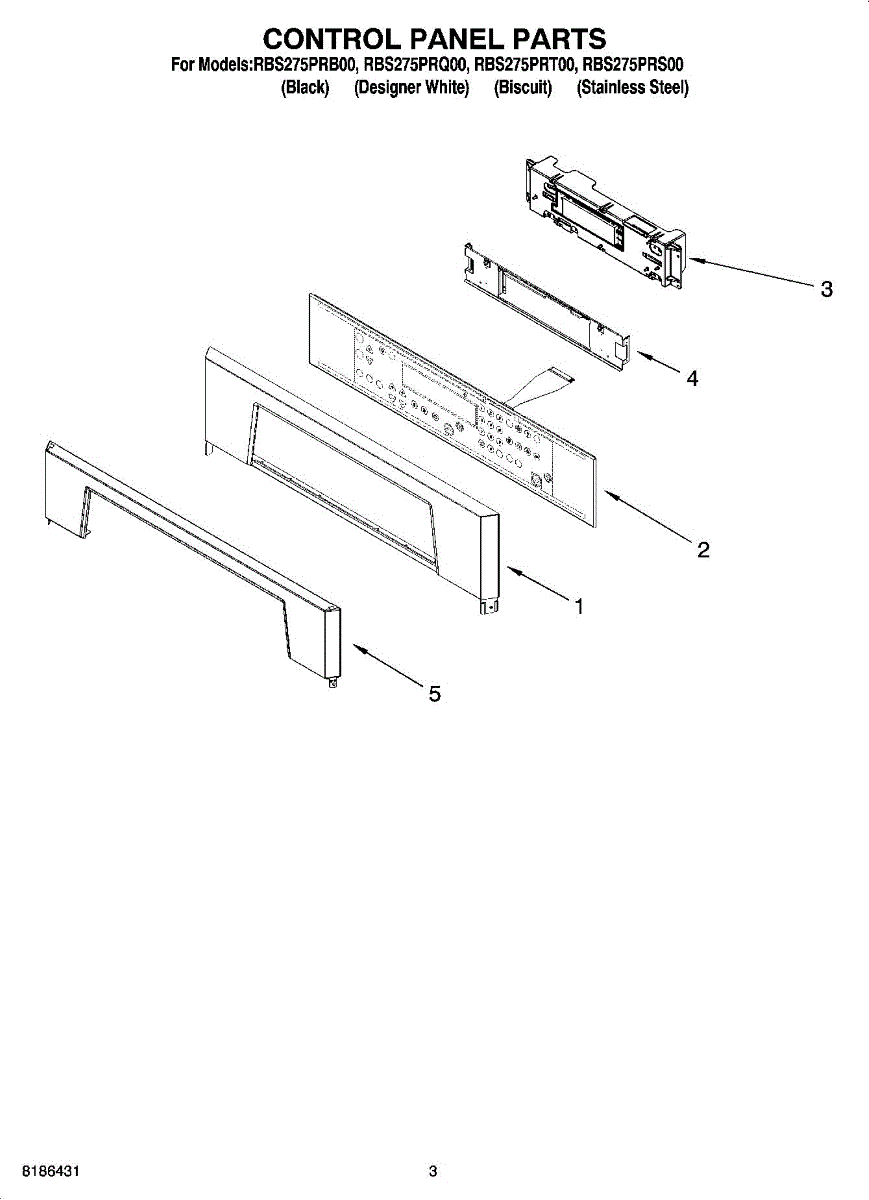

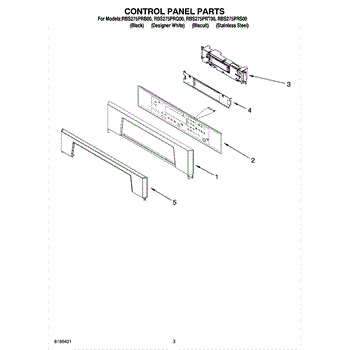

Parts for Whirlpool RBS275PRS00: 02 - Control Panel Parts

This control panel assembly provides the user interface and housing for oven/range controls, restoring button access, display visibility, and function selection so the appliance responds correctly to settings and commands. What it does:

• Replaces the front control interface and bezel so buttons, touchpads, and the display operate reliably
• Restores visible readout and selector feedback when the original panel is cracked, faded, or malfunctioning
• Addresses symptoms such as unresponsive controls, missing or dim display segments, or cosmetically damaged panels
• Acts as the mounting surface for buttons, switches, and electronics that communicate with the control board

• One control panel assembly (black) as shown

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove backguard or console trim per service manual to access mounting screws and harness connections
• Handle the panel and any display lens carefully to avoid scratching or damaging the keypad/overlay

Screw for side trim.

This membrane switch, also called the touchpad/keypad, sits behind the control panel. It reads your button presses and sends them to the electronic control, restoring dependable response when keys are unresponsive, intermittent, or stuck. What it does:

• Translates touch inputs into signals for the control board
• Common fix for dead, intermittent, or hard-to-press keys
• Helps resolve stuck/phantom key presses and random beeping
• Restores the ability to start/stop functions and adjust settings

• One membrane switch (touchpad) assembly

• Disconnect power to the appliance before servicing
• Access the console/control area; note routing and orientation of the flat ribbon connector(s)
• Insert the ribbon straight into the control board connector and lock the retainer; avoid creasing the flex
• Align and press the keypad evenly if adhesive-backed; reuse any trim/overlay as designed for your model

This membrane switch, also called the touchpad/keypad, sits behind the control panel. It reads your button presses and sends them to the electronic control, restoring dependable response when keys are unresponsive, intermittent, or stuck. What it does:

• Translates touch inputs into signals for the control board
• Common fix for dead, intermittent, or hard-to-press keys
• Helps resolve stuck/phantom key presses and random beeping
• Restores the ability to start/stop functions and adjust settings

• One membrane switch (touchpad) assembly

• Disconnect power to the appliance before servicing
• Access the console/control area; note routing and orientation of the flat ribbon connector(s)
• Insert the ribbon straight into the control board connector and lock the retainer; avoid creasing the flex
• Align and press the keypad evenly if adhesive-backed; reuse any trim/overlay as designed for your model

Screw for control panel.

Screw for side trim.
