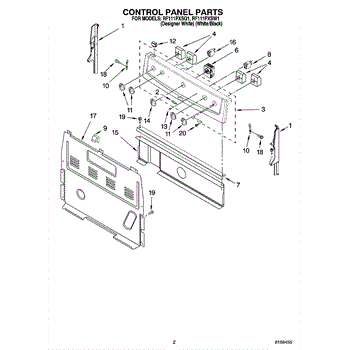

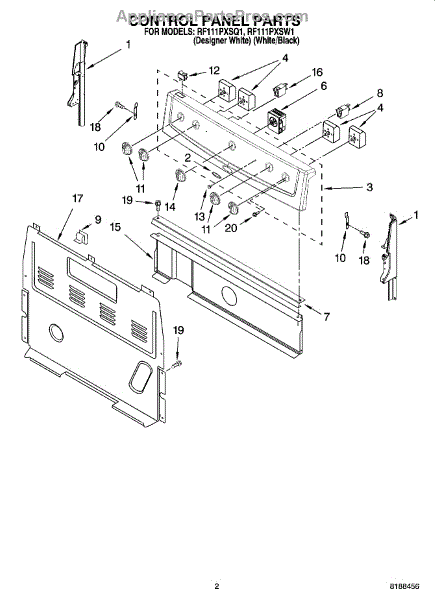

Parts for Whirlpool RF111PXSW1: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

The Range Infinite Control Switch is an OEM part for Whirlpool ranges. This switch is used to control the heat levels of the surface burners, allowing for precise temperature adjustments. It works by regulating the electrical current that flows to the burner elements, enabling users to set the burners to their desired heat setting from low to high.

Symptoms of a failing Range Infinite Control Switch include:

• The burner not heating up or getting too hot regardless of the setting
• Inconsistent or fluctuating heat levels
• The control knob feeling loose or not turning smoothly
• The burner not turning on or off properly
• Electrical sparking or unusual noises from the control switch area

Causes of a bad infinite control switch can include wear and tear from regular use, internal electrical failures, damage from overheating, or mechanical issues within the switch mechanism.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This range control switch regulates power to a surface heating element, letting you adjust the burner from low to high for precise cooking. A worn or failed switch can cause erratic heat or a burner that won't respond to settings.

• Varies power to the surface element for steady, selectable heat
• Common failure symptoms: burner won't heat, stuck on high, won't turn off, or only one temperature
• Restores proper control of the affected surface burner

• Disconnect power before servicing; this is a live-voltage component
• Match and transfer wires terminal-for-terminal from the old switch
• Handle the control shaft carefully to avoid damage
• Test the burner at multiple settings after installation

This indicator light housing secures and positions a control-panel indicator so the status light is visible and protected. It keeps the light assembly aligned for clear operation and a finished appearance. What it does:

• Holds the indicator lamp/LED in the control panel and keeps it properly aligned.
• Protects the light assembly from dirt and moisture around the control area.
• Helps restore a broken, cracked or loose indicator opening so the light displays correctly.
• Common symptom: visible light not aligned, flickering appearance, or a cracked/loose indicator bezel.

• Remove power to the appliance before attempting any access or service.
• Access typically requires removing the control panel or console; keep small screws and clips organized.
• Inspect the mating light and wiring; this part secures the light but does not include the lamp/LED.

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

Color: Black

The Top Burner Control Knob is an OEM part for Whirlpool ranges. This knob allows you to control the heat level of the stovetop burners, providing precise adjustments for cooking.

You should replace the control knob if it becomes damaged or worn out. Causes of a bad control knob can include frequent use, accidental impact, or exposure to high temperatures, which can result in the knob becoming loose, cracked, or difficult to turn.

Symptoms of a bad top burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Cracks or visible damage
• Inconsistent heat levels when adjusting the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Surface unit indicactor light.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

Color: White. Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
