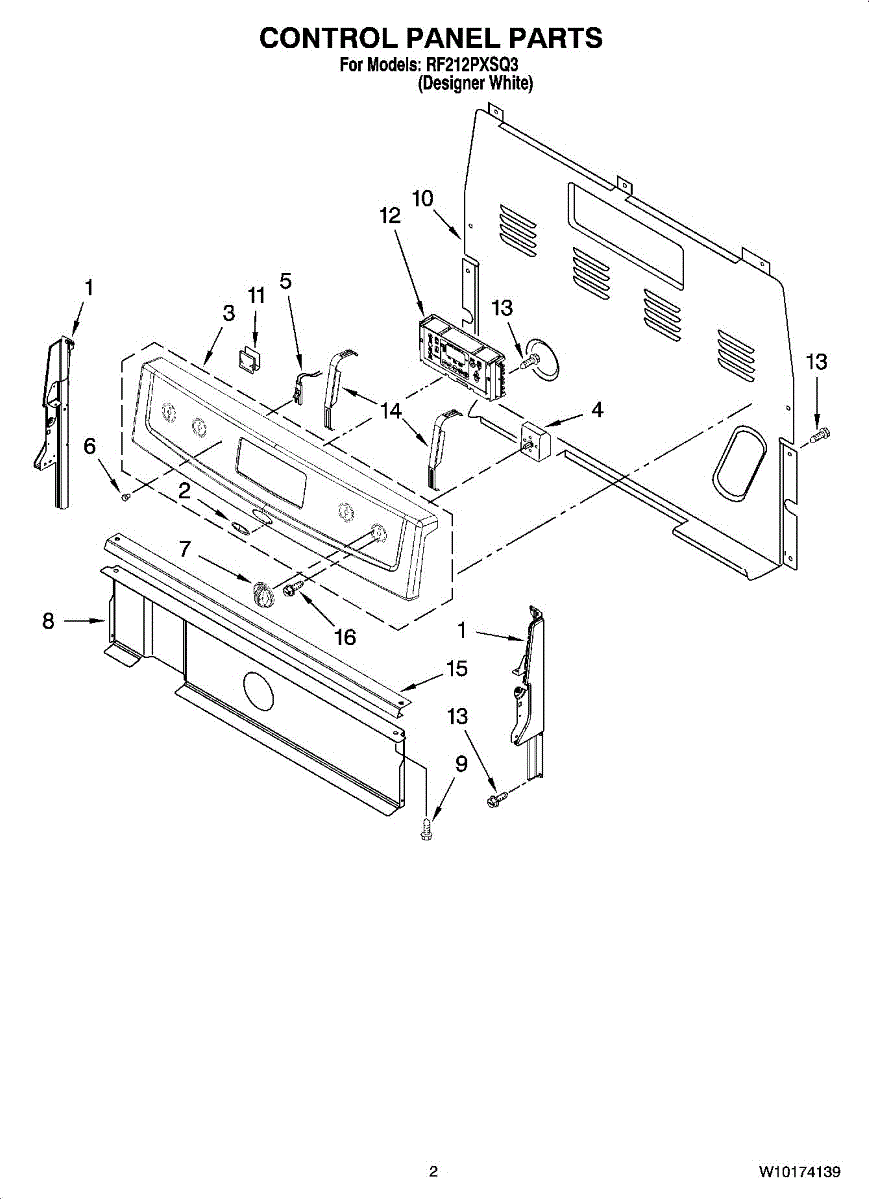

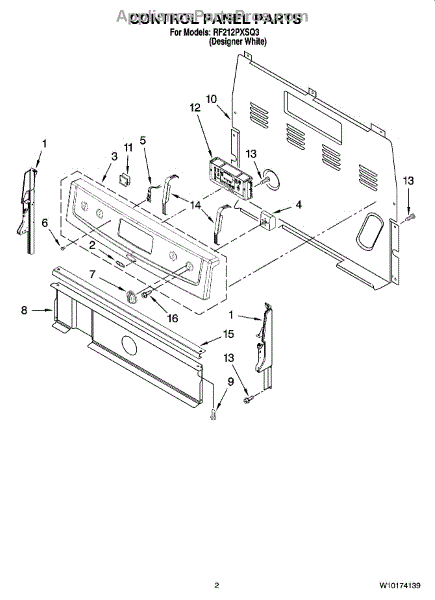

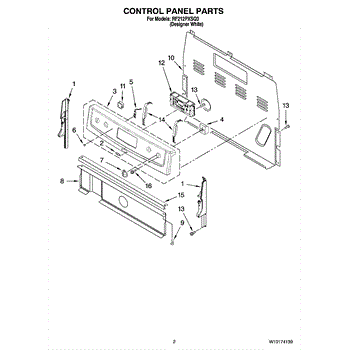

Parts for Whirlpool RF212PXSQ3: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: White  Note: Right side endcap

The Infinite Control Switch is an OEM part for Whirlpool ranges and cooktops. This part allows for precise adjustment of the heat level, enabling users to achieve the perfect temperature for various cooking techniques, from simmering to boiling.

Causes of a bad Infinite Control Switch can range from electrical issues, such as short circuits or worn contacts, to mechanical failures within the switch itself.

Symptoms of a malfunctioning Infinite Control Switch include:

• Burners not heating to the set level or overheating
• Inability to adjust the burner temperature
• Burners not turning on or off when the control switch is operated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Infinite Control Switch is an OEM part for Whirlpool ranges. This switch is used to control the heat levels of the surface burners, allowing for precise temperature adjustments. It works by regulating the electrical current that flows to the burner elements, enabling users to set the burners to their desired heat setting from low to high.

Symptoms of a failing Range Infinite Control Switch include:

• The burner not heating up or getting too hot regardless of the setting
• Inconsistent or fluctuating heat levels
• The control knob feeling loose or not turning smoothly
• The burner not turning on or off properly
• Electrical sparking or unusual noises from the control switch area

Causes of a bad infinite control switch can include wear and tear from regular use, internal electrical failures, damage from overheating, or mechanical issues within the switch mechanism.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Surface unit indicactor light.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

The Top Burner Control Knob is an OEM part for Whirlpool ranges. This knob allows you to control the heat level of the stovetop burners, providing precise adjustments for cooking.

You should replace the control knob if it becomes damaged or worn out. Causes of a bad control knob can include frequent use, accidental impact, or exposure to high temperatures, which can result in the knob becoming loose, cracked, or difficult to turn.

Symptoms of a bad top burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Cracks or visible damage
• Inconsistent heat levels when adjusting the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 8-18 x 3/8 inch.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This is a Whirlpool oven control board. It manages and monitors oven temperatures and features a digital display and user interface buttons. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction. If the control board has failed, it will not respond to user input.Before installing this part, be sure to cut power to the appliance and allow it to cool completely. The stove may need to be pulled away from the wall to access the screws holding the control panel in place. Remove the screws from each side of the control panel to gain access to the old control board. Disconnect any wire harnesses connected to it and remove any screws mounting it in place before installing the new part.This is a genuine OEM part compatible with ranges manufactured by Whirlpool brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product is just the panel and contains no additional parts or hardware.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking
