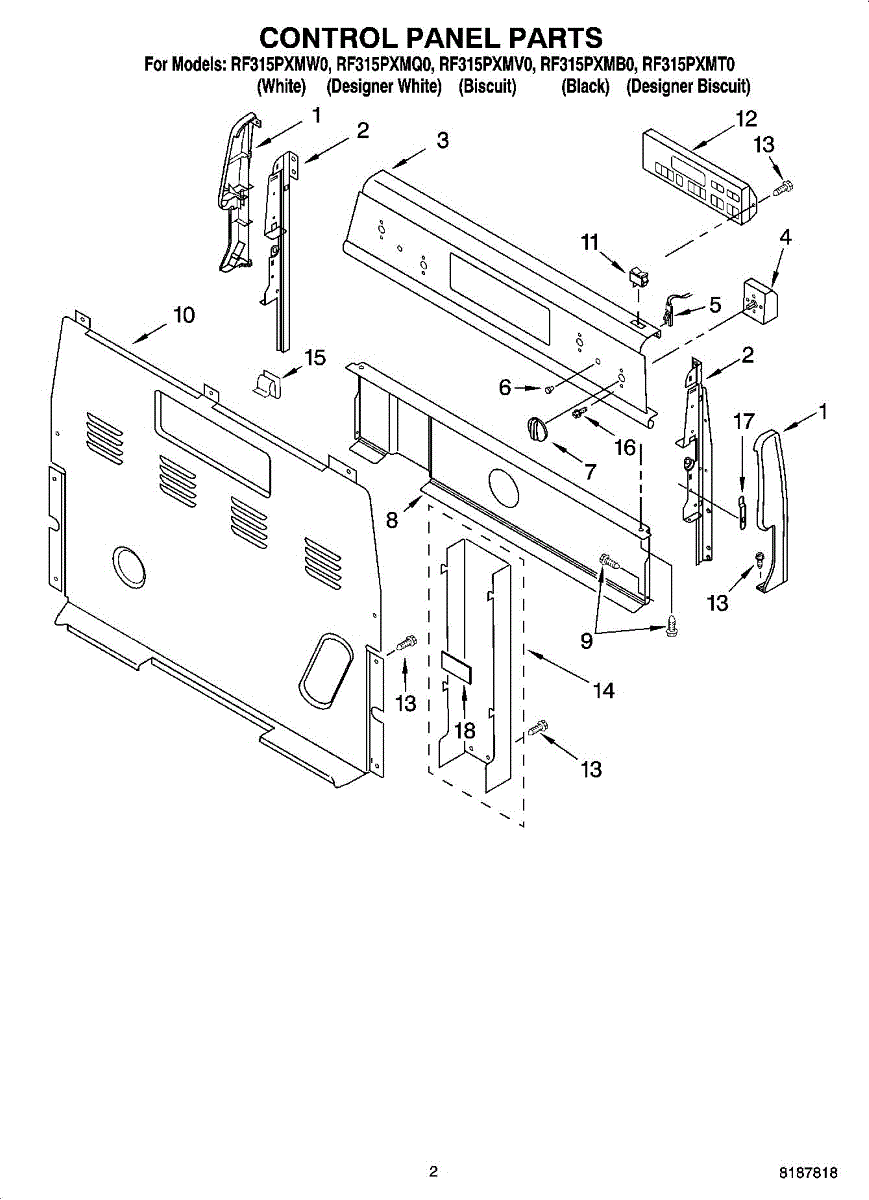

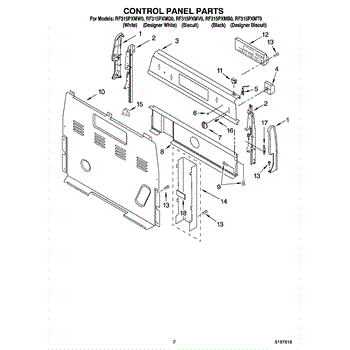

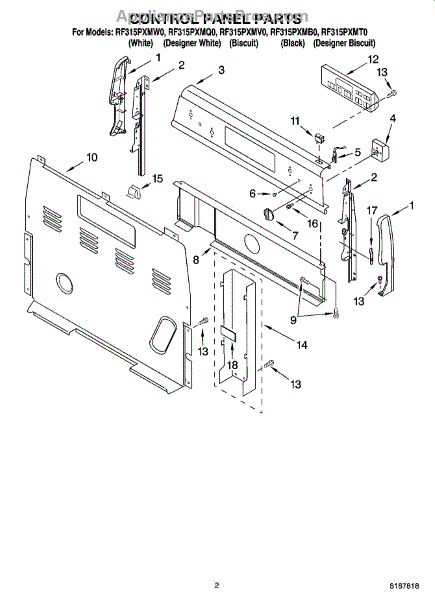

Parts for Whirlpool RF315PXMT0: 02 - Control Panel Parts

Color: Black. Left hand side. For the right hand side order 3186189.

Color: White. Left hand side. For the right hand side order 3186191.

Color: Biscuit. Left hand side. For the right hand side order 8272508.

Color: White. Right hand side. For the left hand side order 3186190.

Color: Biscuit. Right hand side. For the left hand side order 8272507.

Color: Black. Right hand side. For the left hand side order 3186188

Left hand side. For the right hand side order 8523409.

Right hand side. For the left hand side order 8523408.

Color: White.

Color: Black.

Color: Biscuit.

Machine screw with 8-32 threading used to secure control panels, brackets, covers, and internal components. Replace missing, stripped, or damaged screws.

If your burner indicator light stays on when off or burners spark and smoke, the infinite control switch may be faulty. Simple 15-minute DIY fix.

Burner stuck on high or won't heat properly? This surface element switch controls your range burner temperature. Simple 15-minute DIY fix.

Replace your range's surface unit indicator light when it stays on, flickers, or burns out. Signals when burners are hot for safety. Verify fit.

Broken indicator light lens? This red lens covers the control panel light opening, restoring visibility and protection. Easy DIY fix in under an hour.

Black burner control knob for cooktop infinite switches. Replace cracked, broken, or missing knobs. Pulls off switch shaft for easy installation.

Color: Biscuit. For white use WP8522565. For black use WP8522566.

White infinite control knob for ranges and cooktops. Replaces lost, cracked, or broken knobs. Mounts onto the infinite switch stem on your control panel.

Protective cover that conceals your range's control box and wiring. Replaces cracked, broken, or missing covers to restore a finished look.

Color: Biscuit

Range burner not heating or stuck on high? This infinite switch controls surface element temperature. Direct replacement fixes heating issues. Moderate DIY.

Fix a compactor that won't activate extra pack or dense pack mode. This rocker switch restores full functionality. Simple 5-minute DIY repair.

This part is a replacement oven control board. It can be used to replace a broken or malfunctioning part in ranges and is sold individually.The control panel is critical for proper equipment functionality and will require immediate replacement if the user notices the temperature or heat settings can't be controlled or maintained effectively. The appliance should be completely disconnected from the power source and work gloves should be worn to make before any attempt at a repair or replacement is made. Special tools may be required to install this part. This is a genuine OEM part manufactured by Whirlpool and has been sourced directly from the manufacturer. This part is suitable for use on several different ranges manufactured by Whirlpool, Maytag, Kitchenaid, Magic Chef, Amana, and other brands. This is a genuine part made of high-quality, durable materials.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Exposed wiring at the back of your range? This terminal block cover shields power connections from contact and debris, restoring safe operation.

Secures the rear cover panel on your electric range. Replace this clip if it's broken, cracked, or missing to properly hold the back cover in place.

Machine screw with 8-32 threading used to secure control panels, brackets, covers, and internal components. Replace missing, stripped, or damaged screws.

Secures wiring and components to prevent movement and disconnection in your electric range. Replace if clips are broken or wires are loose. Verify fit with your model number.
