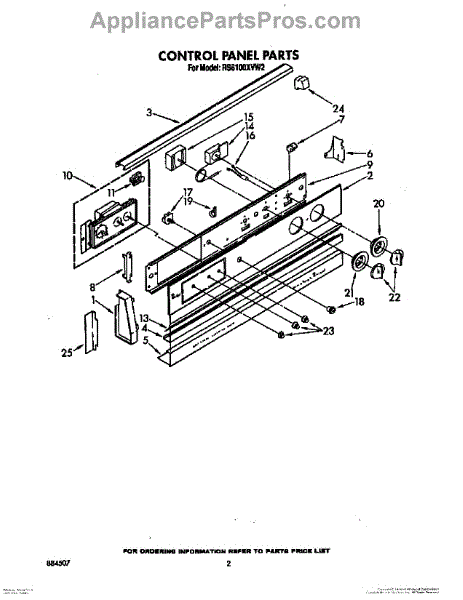

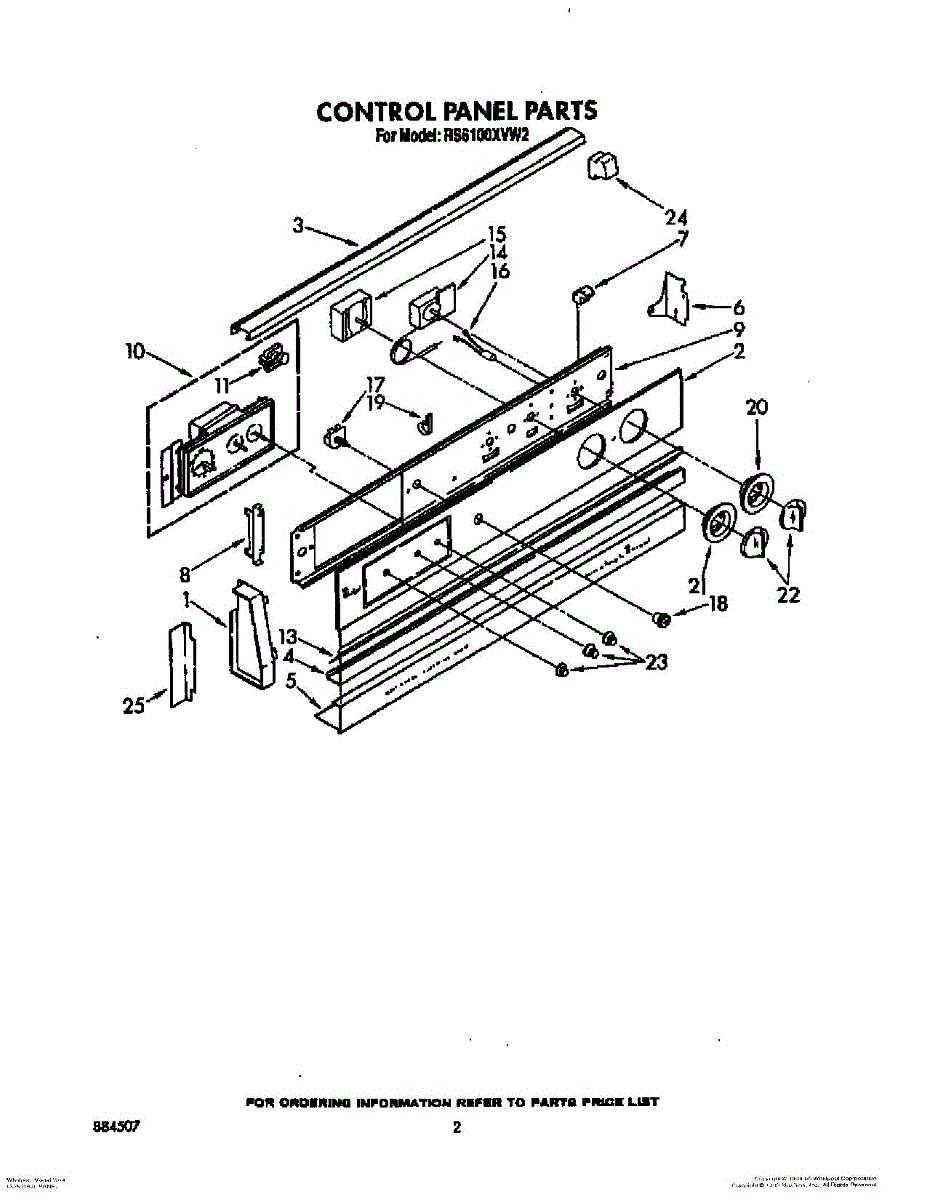

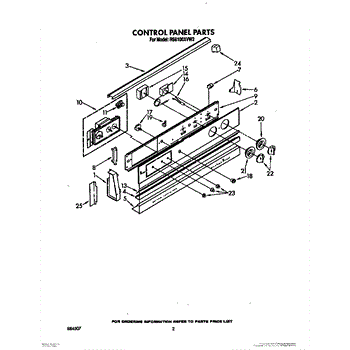

Parts for Whirlpool RS6100XVN2: 02 - Control Panel Parts

Size: 10-32 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This insulating part provides thermal protection for internal appliance components, helping reduce heat transfer and protect wiring and nearby parts from heat-related damage. It's a simple replacement to restore proper insulation where worn or missing. What it does:

• Shields nearby components from excessive heat and helps maintain safe operating temperatures
• Protects wiring, connectors, and plastic parts from heat exposure that can cause melting or failure
• Helps reduce heat transfer that can worsen component wear or trigger thermal faults
• Commonly replaced when insulation is torn, brittle, scorched, or missing

• One insulating part as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Verify the part position and orientation before removal; take photos to aid reassembly
• Use basic hand tools; avoid compressing or damaging the insulating material during installation
• If you see heat damage to wires or other components, inspect and replace those parts as needed.

This part has been discontinued and is no longer available.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Printed indicator plate that mounts behind your range control knob. Replaces worn, faded, or missing escutcheons with clear setting marks.

Replacement control knob for range top burners. Installs on the control panel to adjust burner flame levels. Replace if cracked, broken, or missing.

This part has been discontinued by the manufacturer and is No Longer Available.

This replacement timer knob attaches to the control panel timer so you can set and adjust time reliably. Replacing a worn or missing knob restores a secure grip and clear pointer orientation for everyday use.

• Attaches to the timer shaft to turn and set the kitchen timer
• Common fix for knobs that are cracked, stripped, loose, or missing
• Helps when the timer can't be set or the shaft spins without turning
• Restores smooth rotation and proper alignment on the control panel

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the timer shaft
• Align the new knob with the shaft and press firmly until fully seated
• Test timer operation and pointer alignment before restoring power
