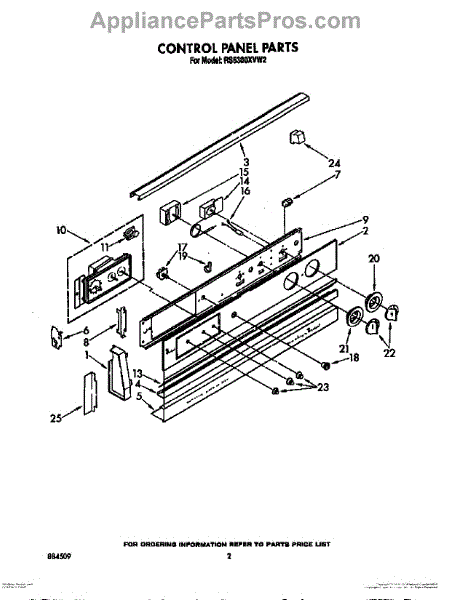

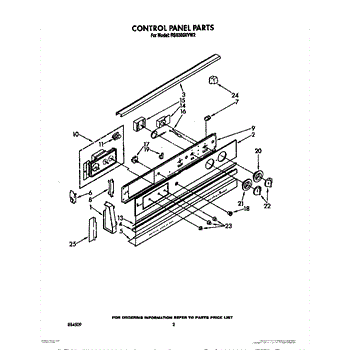

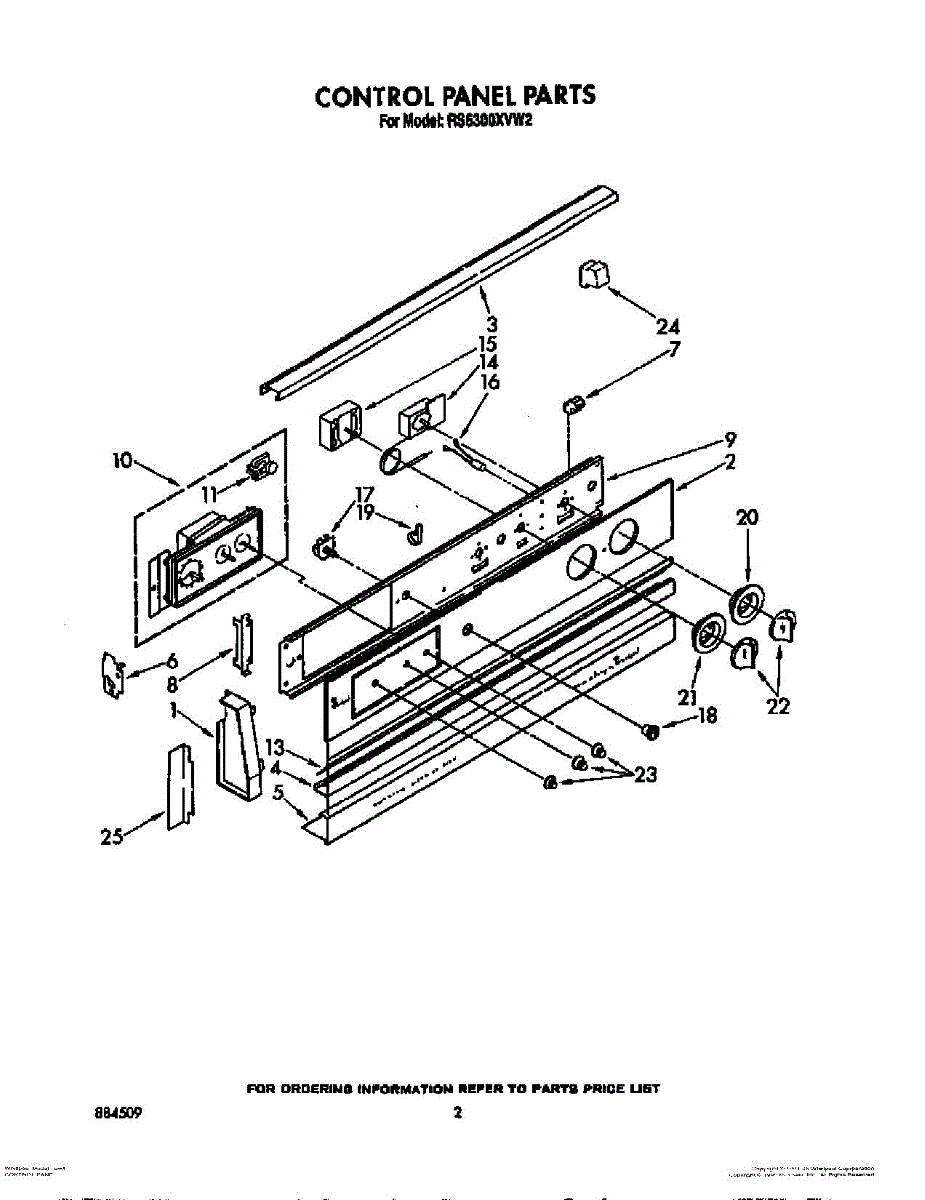

Parts for Whirlpool RS6300XVN2: 02 - Control Panel Parts

Size: 10-32 x 1/2 inch.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This insulating part provides thermal protection for internal appliance components, helping reduce heat transfer and protect wiring and nearby parts from heat-related damage. It's a simple replacement to restore proper insulation where worn or missing. What it does:

• Shields nearby components from excessive heat and helps maintain safe operating temperatures
• Protects wiring, connectors, and plastic parts from heat exposure that can cause melting or failure
• Helps reduce heat transfer that can worsen component wear or trigger thermal faults
• Commonly replaced when insulation is torn, brittle, scorched, or missing

• One insulating part as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Verify the part position and orientation before removal; take photos to aid reassembly
• Use basic hand tools; avoid compressing or damaging the insulating material during installation
• If you see heat damage to wires or other components, inspect and replace those parts as needed.

This part has been discontinued and is no longer available.

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This replacement dial is the printed indicator plate that sits behind a control knob. It restores clear, easy-to-read setting marks so you can quickly choose the desired option and operate the appliance confidently.

• Mounts behind a selector/control knob to display settings and reference marks
• Helps ensure accurate selection and proper knob orientation
• Replace when markings are faded/illegible or the dial is cracked, warped, or missing
• Symptoms include difficulty reading settings and cosmetic damage on the control panel

• Disconnect power to the appliance before servicing
• Pull the control knob straight off the shaft
• Remove the old dial; align the new dial with the panel/indexing
• Reinstall the knob and verify pointer-to-mark alignment

The Top Burner Control Knob is an OEM part for Whirlpool ranges. It is used to adjust the flame level of the top burners on your stove, ensuring precise control over cooking temperatures.

Causes of a bad burner control knob can include repeated use, which may wear down the internal mechanisms, accidental impact that can crack or break the knob, or exposure to high temperatures that can warp or damage the material.

Symptoms of a bad burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Inaccurate control over burner flame levels
• A loose or wobbly knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is No Longer Available.

This replacement timer knob attaches to the control panel timer so you can set and adjust time reliably. Replacing a worn or missing knob restores a secure grip and clear pointer orientation for everyday use.

• Attaches to the timer shaft to turn and set the kitchen timer
• Common fix for knobs that are cracked, stripped, loose, or missing
• Helps when the timer can't be set or the shaft spins without turning
• Restores smooth rotation and proper alignment on the control panel

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the timer shaft
• Align the new knob with the shaft and press firmly until fully seated
• Test timer operation and pointer alignment before restoring power
