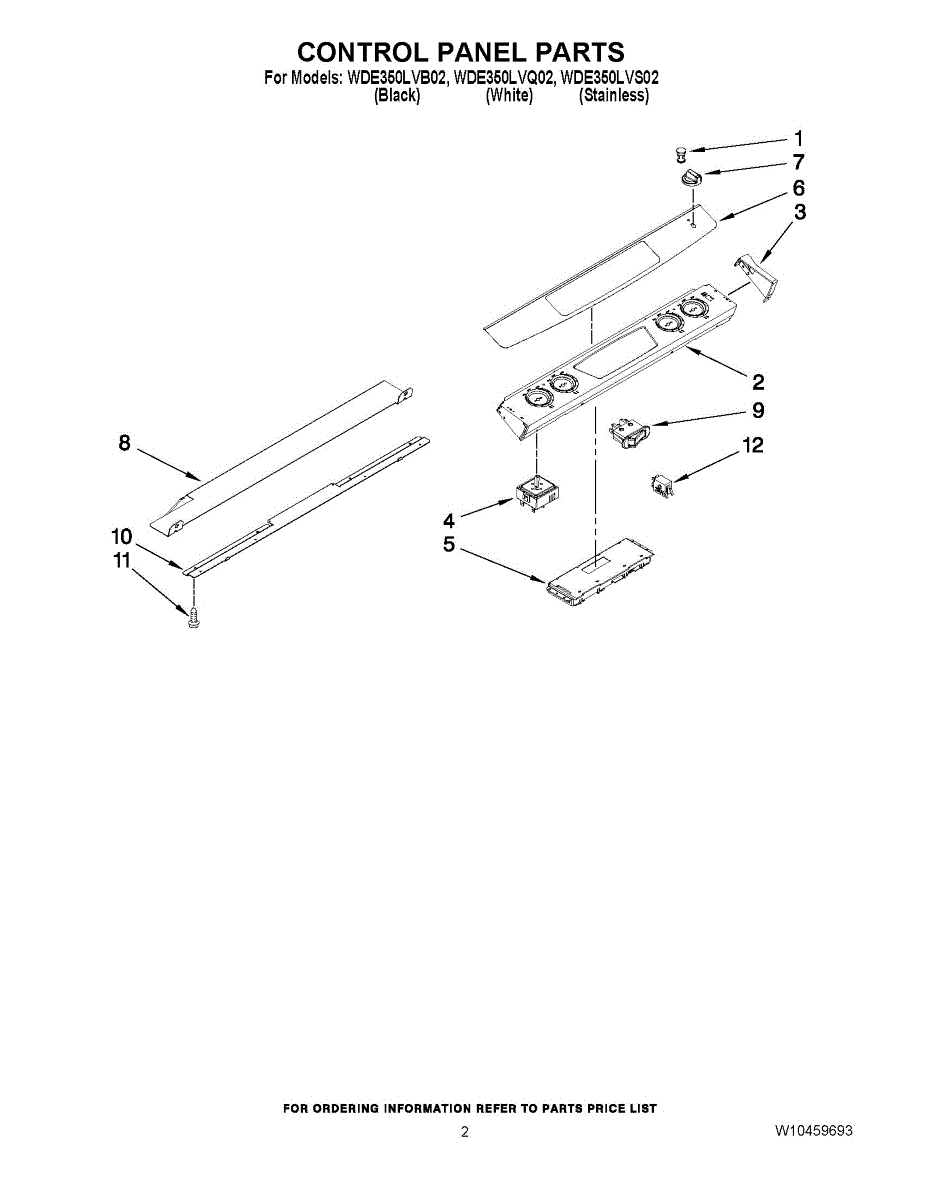

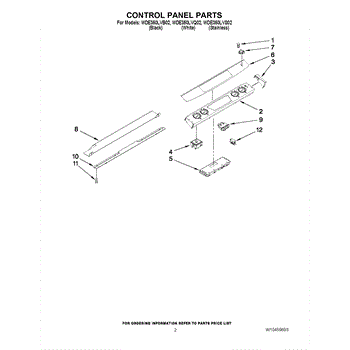

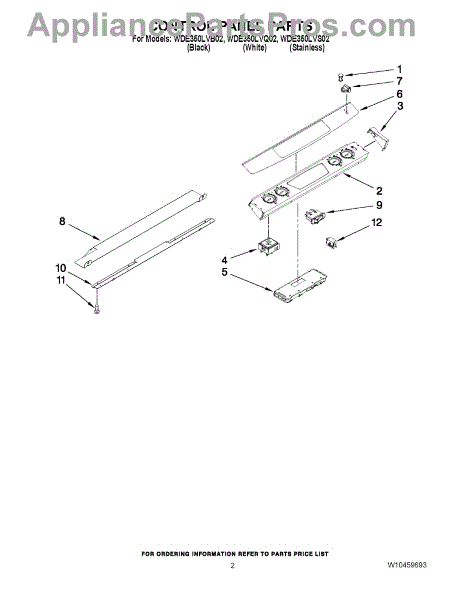

Parts for Whirlpool WDE350LVS02: 02 - Control Panel Parts

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops, intricately designed to regulate the heat of the burners. This essential component allows for precise temperature control, enabling users to adjust the heat setting from low to high with infinite variability, hence its name.

The primary causes for these issues often stem from electrical problems within the switch itself, such as worn contacts or internal components failing.

Symptoms of a malfunctioning Infinite Switch include:

• The burner not heating up or only reaching a single temperature, regardless of the setting
• The burner heating intermittently or not turning on at all
• Unpredictable temperature fluctuations, making cooking difficult and unreliable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This electronic control board is the appliance's central controller, coordinating power to key components so cycles start, run, and finish correctly. Replacing a failed board restores reliable, automatic operation and resolves control-related faults. What it does:

• Orchestrates timing and power to major loads (motors, valves, heaters, pumps)
• Failure may present as no start, won't complete cycle, intermittent operation, or unresponsive/erratic controls
• Can prevent individual components from running even when they test good
• Susceptible to damage from power surges, overheating, or moisture intrusion

• 1 electronic control board

• Disconnect power at the breaker before servicing; verify power is off
• Use ESD protection and handle the board by the edges only
• Access the control compartment, photograph wiring, and move connectors one at a time to matching terminals
• After installation, run a diagnostic/test cycle per your tech sheet

This membrane switch touch pad replaces a worn or unresponsive oven control panel interface so you can restore reliable button response and control. It provides the tactile surface and circuit contact for user input. What it does:

• Registers button presses on the oven/control console and sends signals to the control board
• Restores touch response when buttons are sticky, unresponsive, or intermittently working
• Helps fix issues where display responds but specific touch areas do not
• Matches original fit and button layout for a direct replacement

• Disconnect power to the appliance before beginning any service to avoid shock or damage
• Typically installs behind the control console; some disassembly of the console or trim may be required
• Handle gently to avoid creasing or damaging the flexible contacts and adhesive backing
• Reuse existing mounting hardware unless replacement hardware is explicitly supplied

Color: White

Color: White

Color: Black

Color: Black

The Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows for easy adjustment of temperature settings, ensuring that you can accurately select the desired level of heat for your cooking needs.

Causes of a bad Knob can include physical damage from impact or excessive force, wear and tear from regular use, or environmental factors that cause the material to degrade over time.

Symptoms of a malfunctioning Knob include:

• Difficulty in turning or adjusting the knob
• The knob not engaging with the control mechanism properly
• Visible wear, damage, or breakage that affects functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.


This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation
