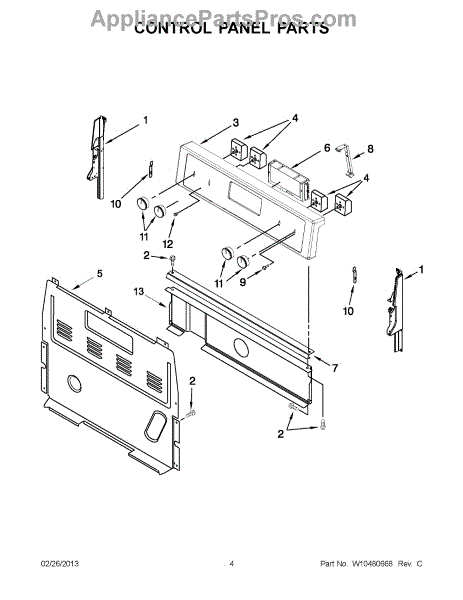

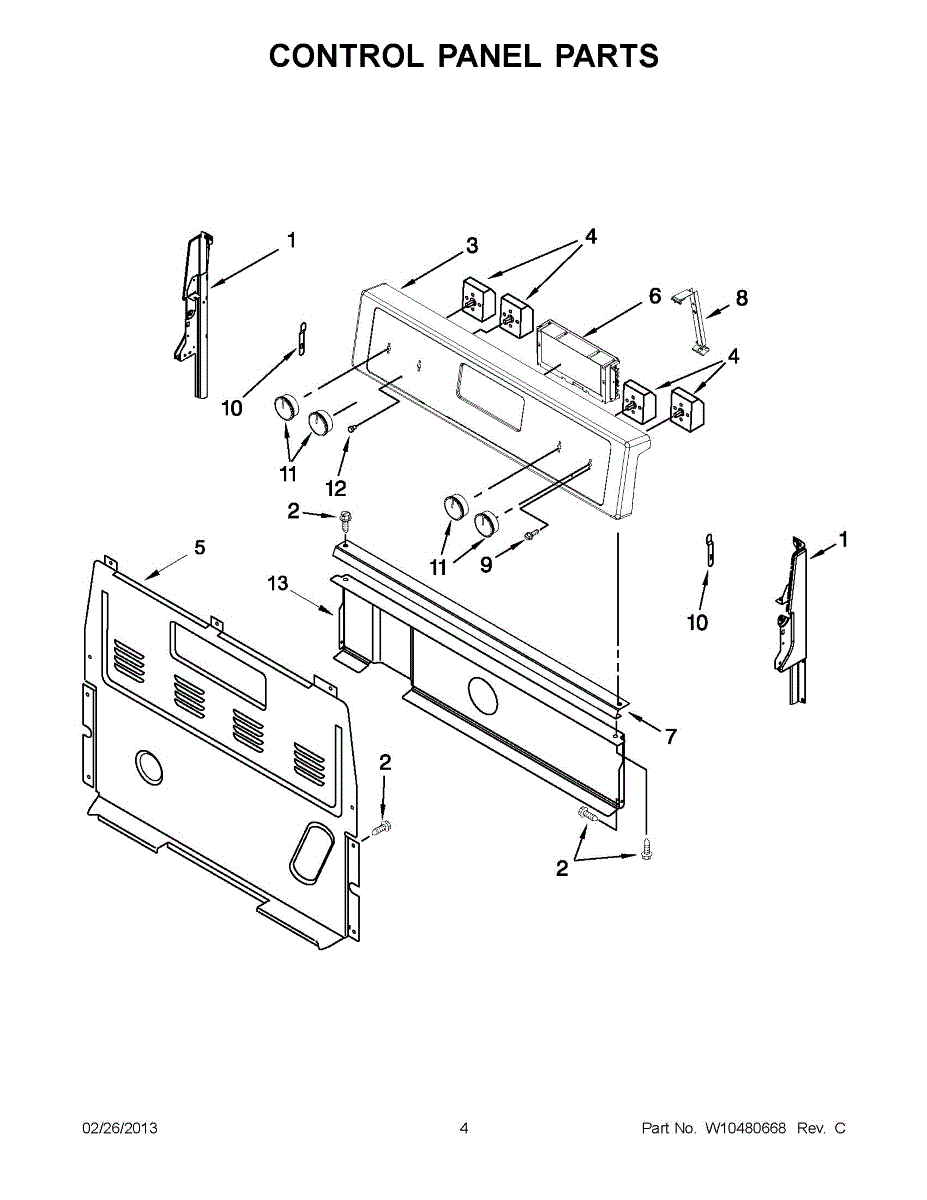

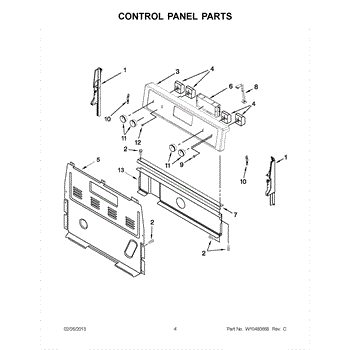

Parts for Whirlpool WFC130M0AB0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Control Panel is an OEM component specifically designed for Whirlpool electric ranges. Found at the front-facing edge of the cooktop, the control panel contains electronic interfaces that operate the various surface and oven functions.

Composed of a durable stainless steel exterior with sealed membrane switches mounted behind, the control panel houses circuit boards that receive input signals to ignite burners and initiate oven cycles. Indicator lights and digital displays provide function feedback.

Causes of a bad control panel include moisture intrusion over years of use degrading connections or printed circuits. Accidental surface impacts could also damage underlying switches or crack the sealing.

Symptoms of a bad control panel include:

• Unresponsive control touches or stuck buttons
• Flickering or non-functional knobs
• Error messages on oven displays

Compatible with additional brands including KitchenAid, Jenn-Air, and some Kenmore electric range models.

This control panel is the user-facing console that houses the oven/range controls and display, restoring clear button access and readable status feedback. Replace a damaged or unresponsive console to regain normal control operation. What it does:

• Provides the touchpad/buttons and display used to set temperatures, timers, and modes.
• Sends user commands to the oven/range electronic control so selections start the appliance.
• Replaces a cracked, faded, or physically damaged panel to restore usable controls.
• Helps address symptoms like unresponsive buttons, unreadable display, or intermittent control behavior.

• Always disconnect power (unplug or switch off circuit breaker) before starting repair.
• Handle the display and electronic interfaces carefully; avoid bending or stressing the panel.
• Installation typically requires removing trim or console screws and transferring any mounting hardware or connectors.

The Range Infinite Control Switch is an OEM part for Whirlpool ranges. This switch is used to control the heat levels of the surface burners, allowing for precise temperature adjustments. It works by regulating the electrical current that flows to the burner elements, enabling users to set the burners to their desired heat setting from low to high.

Symptoms of a failing Range Infinite Control Switch include:

• The burner not heating up or getting too hot regardless of the setting
• Inconsistent or fluctuating heat levels
• The control knob feeling loose or not turning smoothly
• The burner not turning on or off properly
• Electrical sparking or unusual noises from the control switch area

Causes of a bad infinite control switch can include wear and tear from regular use, internal electrical failures, damage from overheating, or mechanical issues within the switch mechanism.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. This part controls the temperature of the small burner on electric ranges and cooktops by regulating the power supplied to the burner. The infinite switch allows for precise temperature settings, providing the flexibility to cook a wide variety of dishes by adjusting the heat level as needed.

Over time, infinite switches can wear out or malfunction, leading to issues with controlling the burner's temperature.

Symptoms of a bad Infinite Switch include:

• The burner does not heat or heats intermittently
• The burner heats to full power regardless of the setting
• Inability to adjust the burner's temperature accurately
• Physical damage to the switch, such as cracking or melting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This electronic control board is the appliance's brain, processing inputs from the user controls and sensors to power components as designed. Replacing a failed board restores accurate cycle timing, responsive controls, and reliable operation. What it does

• Coordinates cycle timing and routes power to components based on the selected settings
• Interprets inputs from sensors and the user interface to control operation
• Helps resolve issues such as unresponsive controls, won't start, won't advance/complete the cycle, or recurring error codes
• Controls relays that switch loads like motors, pumps, fans, valves, and heaters

• 1 electronic control board

• Disconnect power by unplugging the unit or switching off the breaker before service
• Use ESD precautions; handle the board by the edges and avoid touching soldered components
• Photograph wiring and move connectors one at a time to the new board; ensure each locks fully
• Reuse any brackets/covers from the original board; the model's tech sheet for any post-install diagnostics or configuration steps if applicable

The Oven Control Board is an OEM replacement part for Whirlpool ranges. It works to power bake/broil cycles, signals burners to ignite and coordinates the various heating elements, fans, and temperature sensors that allow the range to precisely cook and bake.

Causes of a bad Oven Control Board can include damage from power surges, water leaks or spills that corrode circuits over time, or failures in electronic components like printed circuit boards.

Symptoms of a bad Oven Control Board include:

• Burners or heating elements not working properly
• Inability to regulate or maintain set oven temperatures
• Error codes displayed on the control panel
• Unresponsive or malfunctioning controls and dials
• Dangerous arcing or sparking noises from internal wires

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

Color: Black

Color: White

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens
