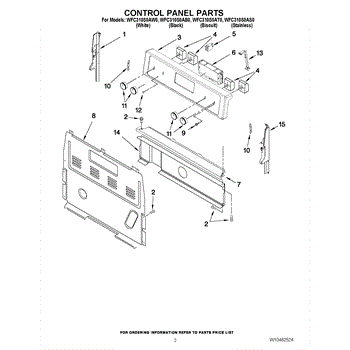

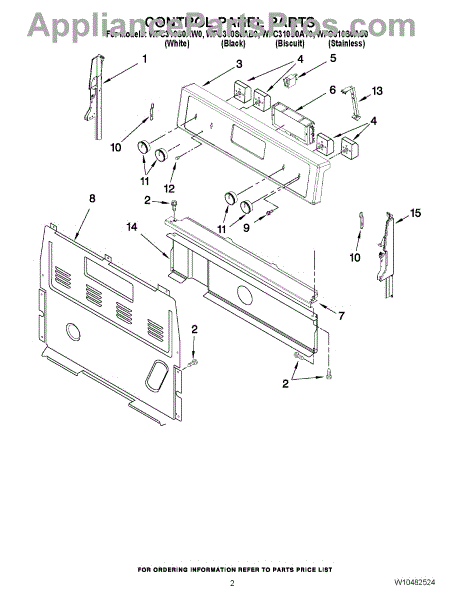

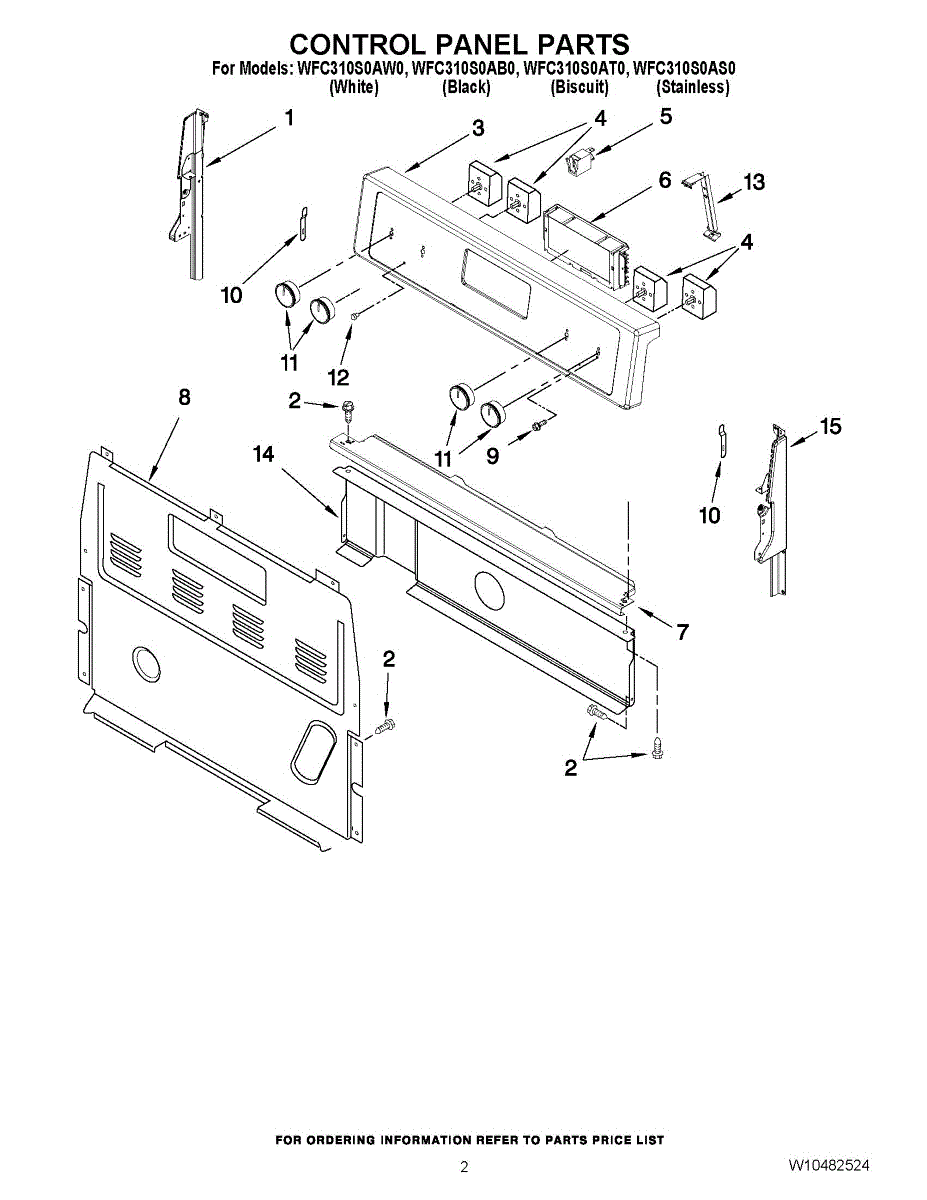

Parts for Whirlpool WFC310S0AT0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Control Panel is an OEM component specifically designed for Whirlpool electric ranges. Found at the front-facing edge of the cooktop, the control panel contains electronic interfaces that operate the various surface and oven functions.

Composed of a durable stainless steel exterior with sealed membrane switches mounted behind, the control panel houses circuit boards that receive input signals to ignite burners and initiate oven cycles. Indicator lights and digital displays provide function feedback.

Causes of a bad control panel include moisture intrusion over years of use degrading connections or printed circuits. Accidental surface impacts could also damage underlying switches or crack the sealing.

Symptoms of a bad control panel include:

• Unresponsive control touches or stuck buttons
• Flickering or non-functional knobs
• Error messages on oven displays

Compatible with additional brands including KitchenAid, Jenn-Air, and some Kenmore electric range models.

This control panel is the user-facing console that houses the oven/range controls and display, restoring clear button access and readable status feedback. Replace a damaged or unresponsive console to regain normal control operation. What it does:

• Provides the touchpad/buttons and display used to set temperatures, timers, and modes.
• Sends user commands to the oven/range electronic control so selections start the appliance.
• Replaces a cracked, faded, or physically damaged panel to restore usable controls.
• Helps address symptoms like unresponsive buttons, unreadable display, or intermittent control behavior.

• Always disconnect power (unplug or switch off circuit breaker) before starting repair.
• Handle the display and electronic interfaces carefully; avoid bending or stressing the panel.
• Installation typically requires removing trim or console screws and transferring any mounting hardware or connectors.

The Infinite Control Switch is an OEM part for Whirlpool ranges and cooktops. This part allows for precise adjustment of the heat level, enabling users to achieve the perfect temperature for various cooking techniques, from simmering to boiling.

Causes of a bad Infinite Control Switch can range from electrical issues, such as short circuits or worn contacts, to mechanical failures within the switch itself.

Symptoms of a malfunctioning Infinite Control Switch include:

• Burners not heating to the set level or overheating
• Inability to adjust the burner temperature
• Burners not turning on or off when the control switch is operated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Surface Element Switch is an OEM replacement part for Whirlpool ranges and ovens. This component serves as the control mechanism for the 8-inch surface heating element, allowing you to precisely regulate the temperature or turn the burner on and off.

Symptoms of a faulty surface element switch may include:

• The heating element not turning on or off properly
• Issues with adjusting or maintaining the desired heat level
• Flickering or erratic behavior of the burner

Causes of needing to replace the surface element switch can include normal wear and tear over time, electrical malfunctions, or damage from exposure to high heat or spills.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore range and oven models.

For small element switch use- 3149404

Surface unit indicactor light.

This electronic control board replaces the dryer or washer console's main control module to restore button/knob response and cycle control. It provides reliable command processing so your appliance can run selected settings correctly. What it does:

• Manages user inputs and starts, stops, and sequences cycles per selected settings
• Controls timer, display, and electronic functions for stable operation
• Can resolve symptoms like unresponsive buttons, incorrect cycle behavior, or failure to start when the board is defective
• Works with associated sensors and user interface components when those parts are functioning

• Disconnect power before accessing or replacing the control to avoid shock or damage
• Handle the board by edges and avoid touching components or connectors to prevent ESD damage
• Verify connectors and harness seating during reassembly; replace damaged wiring or connectors as needed

This electronic control board replaces the dryer or washer console's main control module to restore button/knob response and cycle control. It provides reliable command processing so your appliance can run selected settings correctly. What it does:

• Manages user inputs and starts, stops, and sequences cycles per selected settings
• Controls timer, display, and electronic functions for stable operation
• Can resolve symptoms like unresponsive buttons, incorrect cycle behavior, or failure to start when the board is defective
• Works with associated sensors and user interface components when those parts are functioning

• Disconnect power before accessing or replacing the control to avoid shock or damage
• Handle the board by edges and avoid touching components or connectors to prevent ESD damage
• Verify connectors and harness seating during reassembly; replace damaged wiring or connectors as needed

This electronic control board replaces the dryer or washer console's main control module to restore button/knob response and cycle control. It provides reliable command processing so your appliance can run selected settings correctly. What it does:

• Manages user inputs and starts, stops, and sequences cycles per selected settings
• Controls timer, display, and electronic functions for stable operation
• Can resolve symptoms like unresponsive buttons, incorrect cycle behavior, or failure to start when the board is defective
• Works with associated sensors and user interface components when those parts are functioning

• Disconnect power before accessing or replacing the control to avoid shock or damage
• Handle the board by edges and avoid touching components or connectors to prevent ESD damage
• Verify connectors and harness seating during reassembly; replace damaged wiring or connectors as needed

The Control-Electronic Assembly is an OEM replacement part for Whirlpool electric ranges. As the "brain" of the appliance, it contains circuits and components that allow operation of controls, temperature regulation and cooking modes.

Symptoms of a bad control-electronic assembly include:

• Failure to power on or select desired functions
• Improper cooking as sensors malfunction
• Inability to adjust temperature settings accurately
• Diagnostic trouble codes appearing

Causes can involve moisture over time compromising circuits or failures in electronic modules.

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

Color: White

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This end cap panel covers and finishes the exposed edge of a control or cabinet panel for a clean, factory appearance while protecting edges from chips and wear. It restores the look and helps prevent debris buildup in the gap. What it does:

• Covers and protects the exposed edge of a control/cabinet panel to restore a finished appearance
• Hides fasteners and raw panel edges for improved cosmetics
• Prevents dirt and debris from collecting in the panel gap
• Common replacement for cracked, chipped, loose, or missing end caps

• One end cap panel

• Disconnect power to the appliance before starting any repair
• Remove adjacent trim or screws as needed; align end cap and secure with original fasteners
• Handle carefully to avoid scratching the finish; do not overtighten screws
• Replace any damaged clips or mounting hardware to ensure a secure fit

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap
