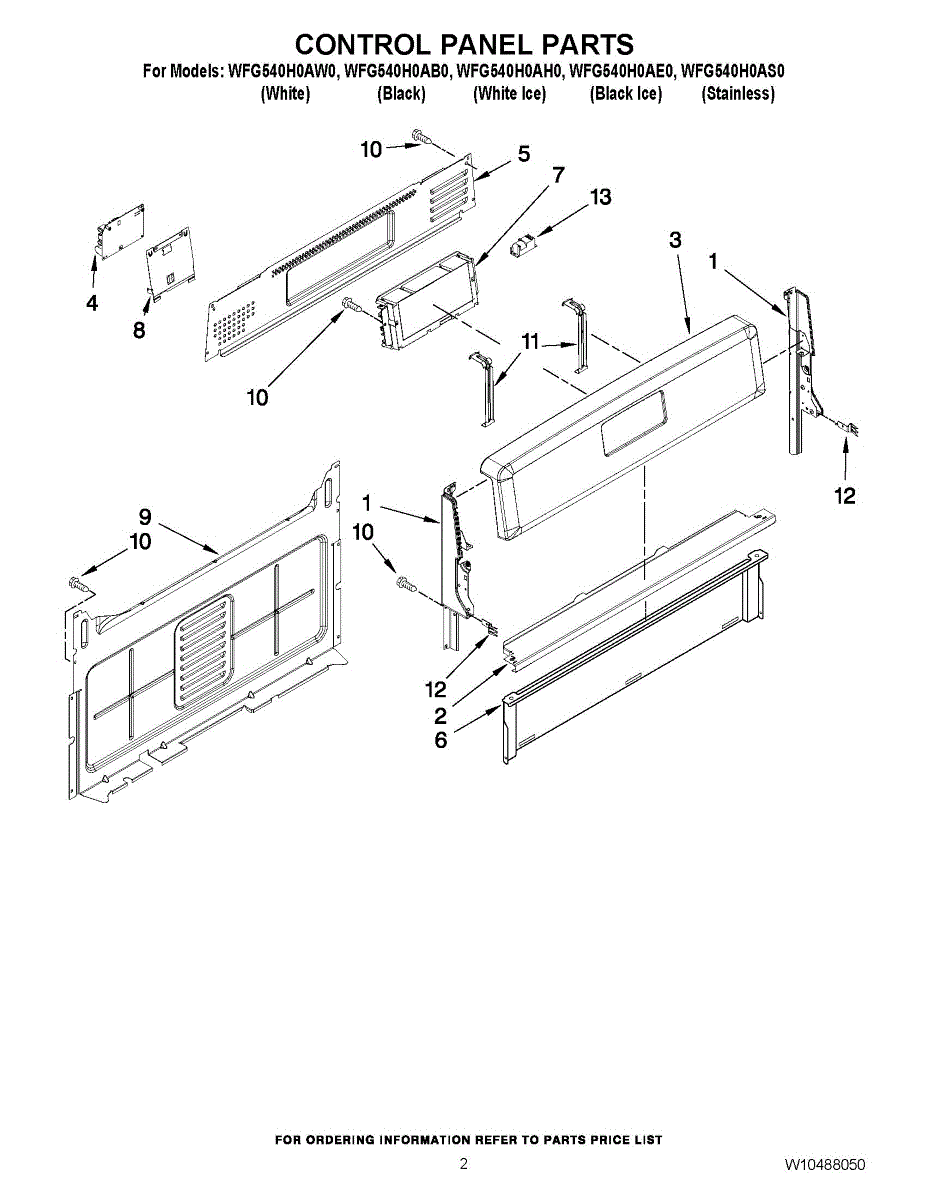

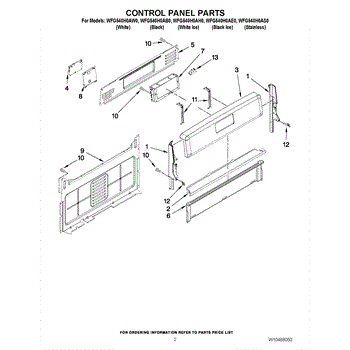

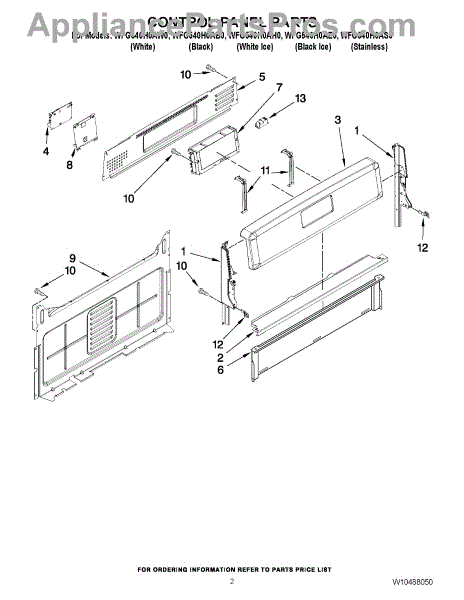

Parts for Whirlpool WFG540H0AB0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This control panel is the user-facing console that houses the oven/surface controls and display, restoring clear button response and readable display for safe, reliable operation. It replaces a cracked, worn, or nonresponsive console. What it does:

• Holds the touchpads/buttons and display that let you select bake, broil, temps and timers.
• Sends user commands to the oven's control board so functions start and stop as intended.
• Commonly fixes symptoms like unresponsive buttons, faded or cracked overlays, and erratic or blank displays.
• Restores a clean, readable surface for accurate temperature and timer input.

• One control panel (console assembly).

• Disconnect power at the breaker before starting any work to avoid shock.
• Handle the panel and display carefully to avoid scratching or cracking the overlay.
• Some installations require access behind the range or removing trim; keep hardware organized for reassembly.

This control panel is the appliance's main electronic user interface, restoring access to cycle selection, settings, and status feedback so you can operate the unit normally. It replaces a cracked, unresponsive, or malfunctioning front control assembly. What it does:

• Provides the touchpad/buttons and display for selecting cycles and options
• Sends user commands to the appliance's main control for operation
• Common symptoms it resolves: unresponsive or stuck buttons, blank or unreadable display, incorrect or missing control feedback
• Restores normal user interaction when the front control has cosmetic damage or intermittent function

• Disconnect power to the appliance before starting any repair
• Handle the panel gently to avoid damaging the display, ribbon cable, or connectors
• Installation typically requires removing the front fascia or door trim; keep track of screws and clips

This control panel is the front fascia that houses the cycle buttons and indicators on your appliance. Replacing a damaged or unresponsive panel restores reliable selections and a clean, factory appearance.

• Provides the user interface for selecting cycles and options
• Communicates button presses to the control system to start and customize operation
• Covers and protects components while finishing the appliance's front
• Common symptoms: cracked/broken console, worn or sticky buttons, selections not registering, intermittent response

• Disconnect power at the breaker before servicing
• Remove mounting screws/clips to release the existing console; support it to avoid straining wiring
• Transfer the user interface module and any brackets from the old panel as needed; avoid pinching ribbon cables
• Reinstall hardware and verify button response before completing reassembly

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This part is an oven control board for an electric range. The main functions of this control board include selecting oven temperature and setting cooking timers. The control board is also the location of the clock display, temperature display, and self-cleaning option.This part may need to be replaced if the display is no longer readable because it is damaged, shattered or is for some other reason not properly displaying information. This part may also need to be replaced if one or more display buttons on the display are not responding properly. When preparing to replace this part, The first step is to unplug the oven from its power source. A nut driver set is needed in order to gain access to the control board. Protective work gloves should be worn while replacing this part.This part is designed specifically for a Whirlpool range, and this control and overlay is sold as a single unit. It is an authentic OEM replacement part that is directly sourced from the manufacturer.

This electronic control board is the appliance's main logic board that manages cycles and user commands so the appliance runs correctly and responds to front-panel inputs. Replacing a faulty board restores control and normal operation. What it does:

• Receives and processes input from the user interface and sensors to start and manage cycles
• Controls timers, relays, and other components to sequence operations
• Can resolve symptoms such as unresponsive controls, intermittent cycle operation, or error codes related to the control system
• Replaces a visibly damaged or malfunctioning board to restore reliable control

• Disconnect power before accessing or replacing the control board to avoid shock or damage
• Handle the board by its edges and avoid touching circuitry; observe ESD precautions if possible
• Verify connector orientation and secure all harnesses; confirm board seating before reassembly

This electronic control board replaces the refrigerator's main user interface and control module to restore digital controls and programmed features. It provides the board-level electronics that manage display, buttons, and control signals. What it does:

• Receives button/knob inputs and runs the unit's control logic
• Manages display readouts and electronic indicators
• Sends control signals to compressor, fans, and dispenser/ice functions
• Stops unit response or causes error codes when failing

• Disconnect power to the appliance before starting any work.
• Handle the board by edges and avoid static discharge; use anti-static precautions if available.
• Verify the appliance model and part number match before installing.

This electronic control board serves as the appliance's brain—processing inputs and directing power so cycles and settings run correctly. Replacing a failed board can restore normal operation when the unit is unresponsive, erratic, or displaying fault codes.

• Coordinates cycles, timing, and settings based on user and sensor inputs
• Distributes power to motors, valves, heaters, and other components as needed
• Failure symptoms: no power or non-responsive controls
• Failure symptoms: cycles won't start/finish, random beeping, or error codes

• Disconnect power before servicing; allow capacitors to discharge
• Use ESD protection and handle the board by the edges
• Photograph wiring and move connectors one at a time to matching ports
• Refer to the unit's tech sheet; some models may require a diagnostic/setup step after installation

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage
