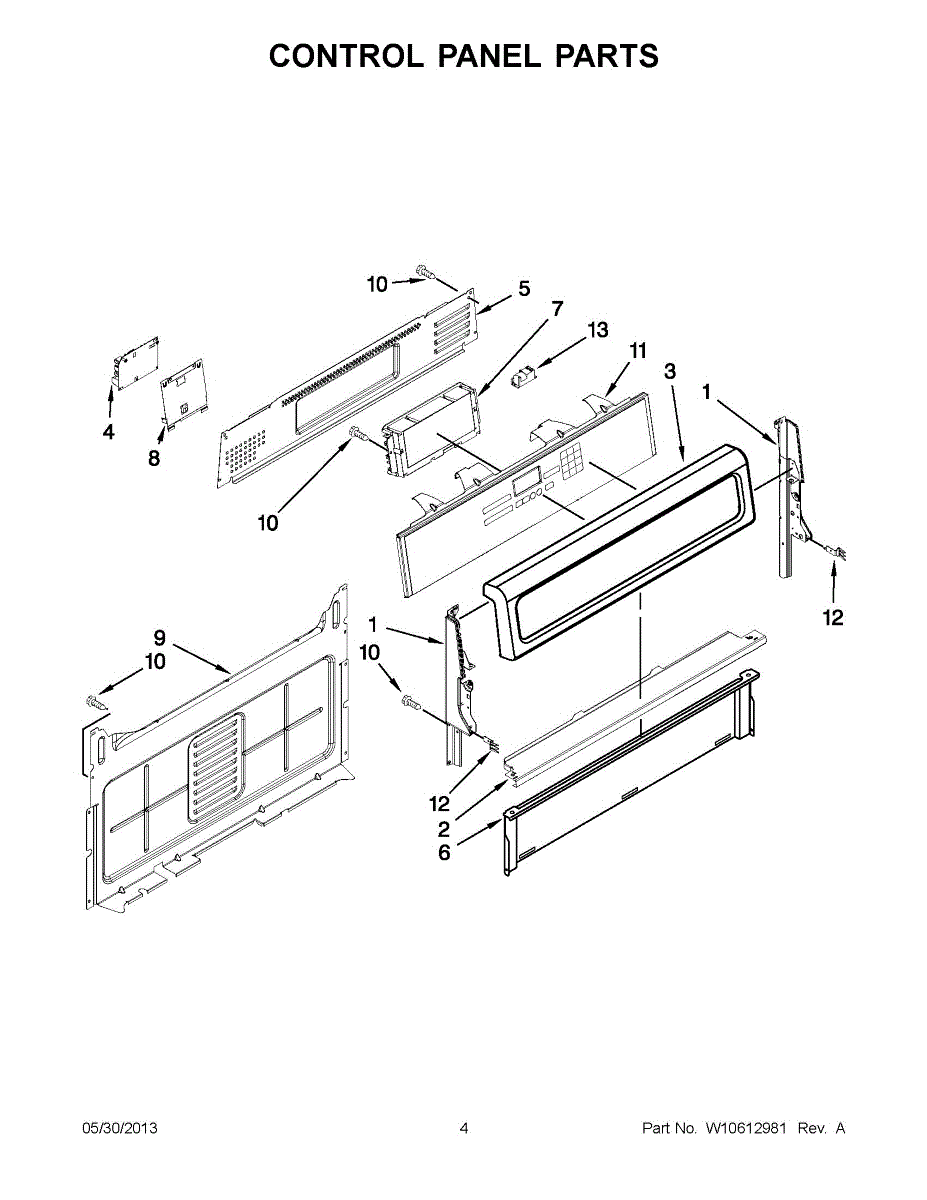

Parts for Whirlpool WFG710H0AE0: 02 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

Color: White

Color: Black

Color: Stainless

The Spark Module is an OEM replacement part for Whirlpool ranges. It is an electrical component that generates the spark needed to ignite the gas burners. By sparking consistently and reliably, the module allows the cooktop burners to ignite with each use.

Causes of a bad spark module can include normal wear and tear over time, exposure to moisture or residue, or issues with the electronic components that produce the spark.

Symptoms of a bad spark module include:

• Burners that will not ignite or light consistently
• Burners that ignite but then immediately go out
• Only some of the burners lighting while others do not
• A clicking sound coming from the ignitors but no visible spark

Note: For harness from spark module to igniters use part number 9756892.

This OEM Whirlpool replacement spark module is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This electronic control board manages the oven/range functions and user controls so the appliance responds to button presses and follows programmed bake/ignite cycles. Replaces a failed control board to restore normal control and timing functions. What it does:

• Receives input from the console and operates bake/broil/ignition sequences
• Controls timers, display readouts, and user-command processing
• Can cause blank display, unresponsive touchpad/buttons, or failure to start heating/ignite when faulty
• Re-establishes proper control logic and signal routing when replaced

• Disconnect power and turn off gas supply before starting any repairs
• Handle the board by the edges and avoid static discharge; wear an ESD strap if available
• Reassemble panels and restore power/gas only after connections are secure; test all functions per the service manual

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Grey

Color: Black

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter
