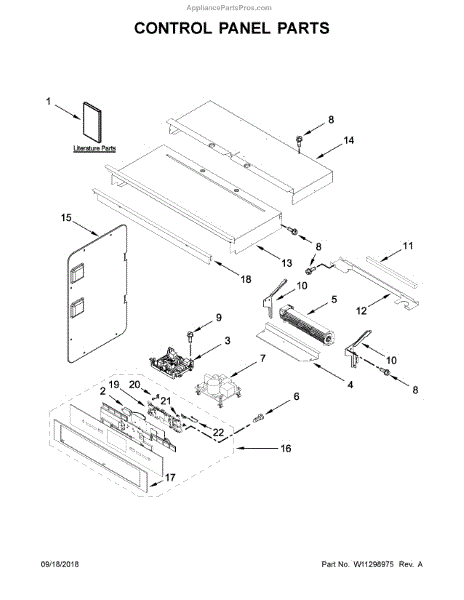

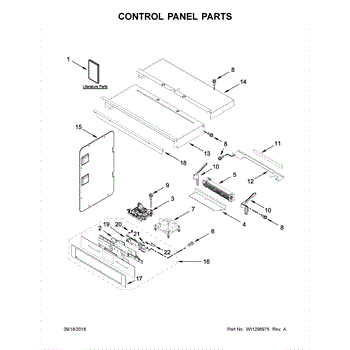

Parts for Jenn-Air JMW2430DB03: Control Panel Parts

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This power supply is the electronic control board that provides the regulated voltages and control signals needed for the appliance's user console and main controls to operate reliably. It restores proper power distribution so controls can respond. What it does:

• Converts incoming AC to the low-voltage DC used by the console and control circuitry.
• Powers display, buttons, and control relays so the appliance can receive and execute commands.
• Common symptom: blank or unresponsive display/console.
• Common symptom: intermittent or total loss of control functions, or failure to start cycles.

• Disconnect power before servicing to avoid electrical shock.
• Handle the board by its edges and avoid ESD (static) damage—use proper grounding.
• Reassemble panels and secure connectors fully; test control functions after installation.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This control panel is the appliance's main user interface that houses the buttons/touchpads and display, restoring normal control and feedback. Replace a cracked, worn, or unresponsive panel to regain reliable operation. What it does:

• Provides the user interface for selecting cycles, options, and settings.
• Routes button/touch inputs to the appliance control electronics.
• Restores visible status information when the display or indicators are damaged.
• Resolves symptoms like unresponsive buttons, missing or unreadable display, or intermittent control behavior.

• Disconnect power before starting work to avoid shock or injury.
• Handle the display/buttons carefully to avoid scratching or cracking; replace damaged clips or trim as needed.
• Verify connector type and orientation before disconnecting; do not force wiring or terminals.

This wire harness is a factory-style wiring assembly that routes power and signals between controls and components, restoring reliable electrical connections for proper appliance operation. What it does:

• Provides organized electrical connections between the control and downstream components
• Restores power and signal paths when original wiring is damaged or burned
• Can resolve symptoms such as no power to a component, intermittent operation, or blown fuses/ breakers related to wiring faults
• Protects against loose or corroded connections that cause erratic appliance behavior

• One complete wire harness assembly as shown

• Disconnect all power before starting work to avoid shock or injury
• Route the harness following OEM wire clips and harness guides; avoid pinching or contact with sharp edges or hot surfaces
• Match connector shapes and colors; ensure each connector seats fully and locks
• If insulation or connectors are damaged elsewhere, inspect and repair those areas before restoring power

This genuine replacement wire harness routes power and signals between control components to restore reliable electrical connections. It replaces damaged or worn wiring to help fix intermittent power, non-responsive controls, or component failures. What it does

• Connects control board, switches and sensors to supply power and signal paths
• Restores broken or frayed wiring that can cause intermittent operation or no power
• Provides correct factory-configured terminals and connector shapes for a secure fit
• Helps resolve symptoms like unresponsive controls, lighting or motor not operating reliably

• One wire harness (single assembly)

• Disconnect power before beginning service to avoid shock or short circuits
• Inspect connectors and routing; replace any retaining clips or grommets that are damaged
• Route harness the same way as the original to prevent chafing or pinching

This wire harness is the factory-style replacement that routes power and signals between components to restore reliable electrical connections and appliance function. It replaces a damaged or worn harness to help stop intermittent faults and loss of power. What it does:

• Carries power and control signals between modules, switches, and motors
• Restores continuity when frayed wires or broken terminals cause intermittent operation
• Helps eliminate symptoms such as loss of power to components, lights or controls not responding, or blown fuses
• Maintains secure plug-and-socket connections to prevent arcing and shorts

• Disconnect power (unplug or switch off breaker) before starting any repair
• Handle connectors by the plug body, not the wires, to avoid damage
• Route and secure the harness to match original routing and strain reliefs

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
