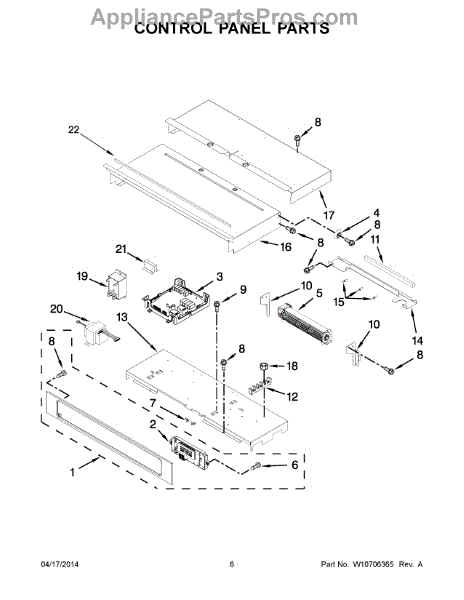

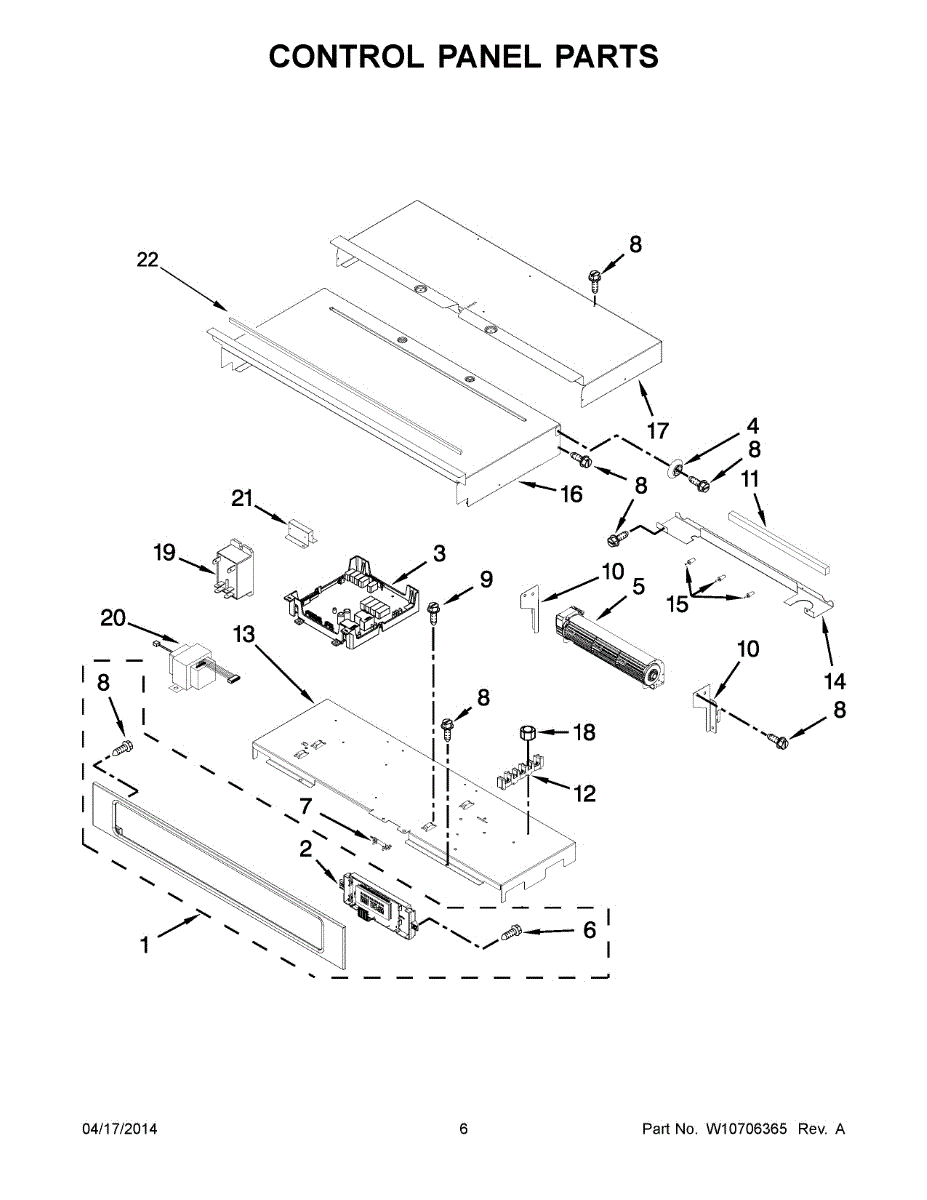

Parts for Kitchenaid KEBK276BBL01: 04 - Control Panel Parts

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Thermal Fuse is an OEM part for Whirlpool ovens. This part cuts off power to the oven if it detects excessively high temperatures, preventing potential overheating and ensuring safe operation.

Over time, the thermal fuse can fail due to regular use, exposure to high temperatures, or electrical issues.

Symptoms of a bad thermal fuse include:

• Oven not powering on
• Oven not heating up
• Interruption of cooking cycles
• No response from oven controls

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

This control transformer supplies low-voltage power to the appliance's control system so the electronic control board and user interface can operate reliably. Replaces a failed transformer to restore control power and responsive displays. What it does:

• Converts incoming mains power to the low-voltage feed used by the control board and user interface.
• Restores power when a burned or shorted transformer causes blank displays or unresponsive controls.
• Helps re-enable electronic functions like timers, touchpads, and control relays when the original transformer has failed.
• Common symptom: control panel or display is dead while other components still receive power.

• One control transformer.

• Always disconnect household power at the breaker before servicing the appliance.
• Handle the transformer and wiring carefully; avoid pulling on wires or touching terminals.
• Match wire terminals and mounting location exactly to the original; secure fasteners and any insulation or covers.
