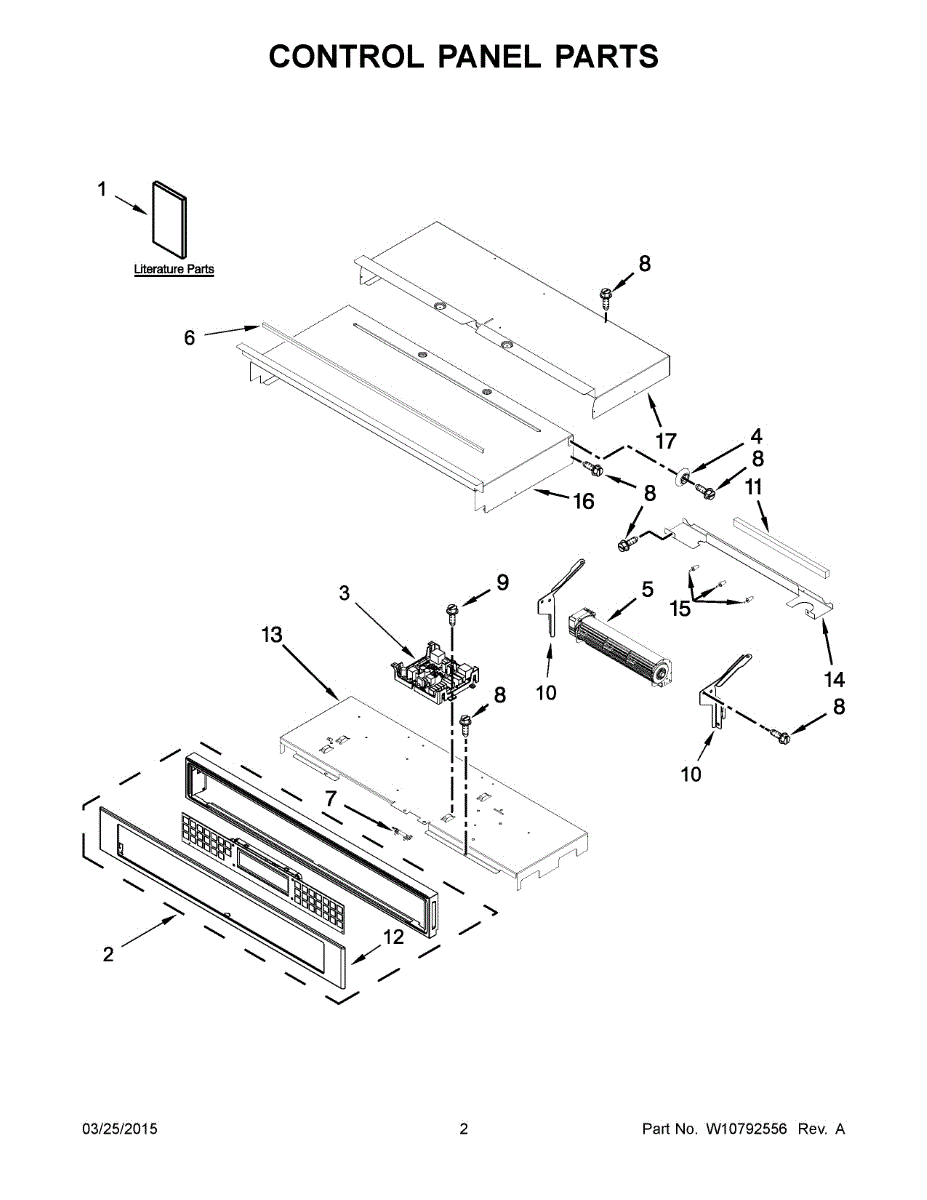

Parts for Kitchenaid KEBS209ESS00: 02 - Control Panel Parts

The Console is an OEM replacement part for Whirlpool wall ovens. It is responsible for covering and protecting the control panel, providing a clear and organized interface for you to operate and control your oven. It features clearly labeled buttons and indicators that allow you to set the desired cooking temperature, select cooking modes, and control various oven functions.

A bad wall oven control panel overlay console assembly can occur due to wear and tear, physical damage, or malfunctioning electronic components. If you notice symptoms such as unresponsive buttons, a cracked or damaged overlay, or difficulty in selecting or adjusting settings, it may be time to replace the assembly.

Symptoms of a bad console include:

• Unresponsive buttons
• Cracked or damaged overlay
• Difficulty in selecting or adjusting settings

Repair your wall oven by replacing the faulty or damaged control panel overlay console assembly with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This electronic control board is the brain of the appliance, coordinating power and communication between sensors, switches, and electrical loads. Replacing a failed board can restore proper start-up, cycle timing, and responsive controls. What it does:

• Manages program logic and cycle sequencing
• Distributes power to motors, valves, heaters, and fans as commanded
• Interfaces with the user controls/display and monitors sensors and switches
• Common failure symptoms: won't power on or start, unresponsive buttons, cycle won't advance or ends immediately, erratic lights/display, or recurring error codes

• 1 electronic control board

• Disconnect power at the breaker or unplug before servicing; if the appliance uses gas, shut off the gas supply
• Use ESD protection; handle the board by the edges and avoid touching circuitry
• Photograph wiring and move connectors one at a time to the matching terminals
• On some models, post-install programming/model code entry may be required—follow the unit's tech sheet or service instructions

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Thermal Fuse is an OEM part for Whirlpool ovens. This part cuts off power to the oven if it detects excessively high temperatures, preventing potential overheating and ensuring safe operation.

Over time, the thermal fuse can fail due to regular use, exposure to high temperatures, or electrical issues.

Symptoms of a bad thermal fuse include:

• Oven not powering on
• Oven not heating up
• Interruption of cooking cycles
• No response from oven controls

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Color: Stainless

This wire harness routes power and signals between appliance components to restore reliable electrical connections. Replacing a damaged harness helps eliminate intermittent faults and restores proper operation of affected circuits. What it does:

• Carries power and control signals between modules, switches and motors
• Restores circuit continuity when original harness shows burns, breaks or loose connectors
• Can stop intermittent operation, no-power symptoms, or components that won't respond
• Matches OEM routing and connector types to fit and function like the original

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Compare connectors and routing to the original harness; replace only if it matches
• Handle connectors carefully and avoid pulling on individual wires

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

This wire harness provides the factory-style electrical connections needed to restore secure, organized wiring in your appliance. Replacing a damaged harness helps re-establish reliable power and signal paths for controls and components. What it does:

• Connects multiple internal components with pre-terminated wiring and color-coded connectors
• Ensures correct signal and power routing between control boards, switches, and motors
• Commonly used to address intermittent power, loss of functions, or components that don't respond
• Keeps wiring bundled and secured to prevent chafing or short circuits

• Disconnect power (unplug or switch off breaker) before starting any repair
• Match connector shapes and wire colors; route and secure harness along the original path
• Inspect connectors and insulation; replace the entire harness if any wire or terminal is damaged
