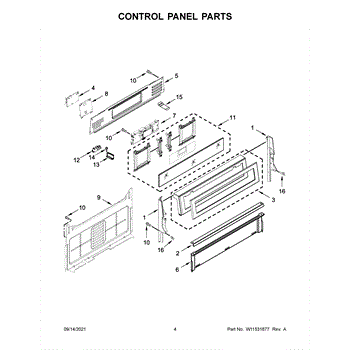

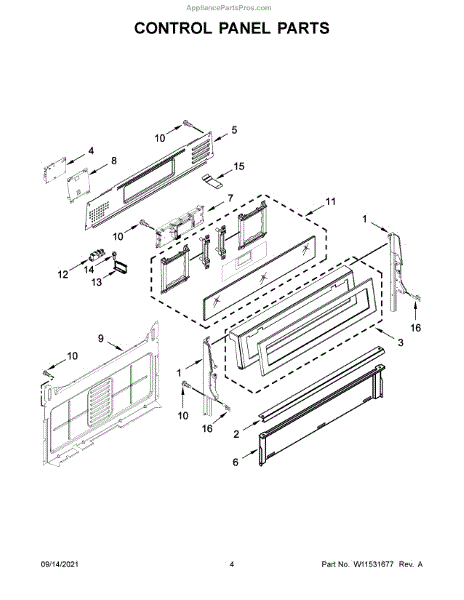

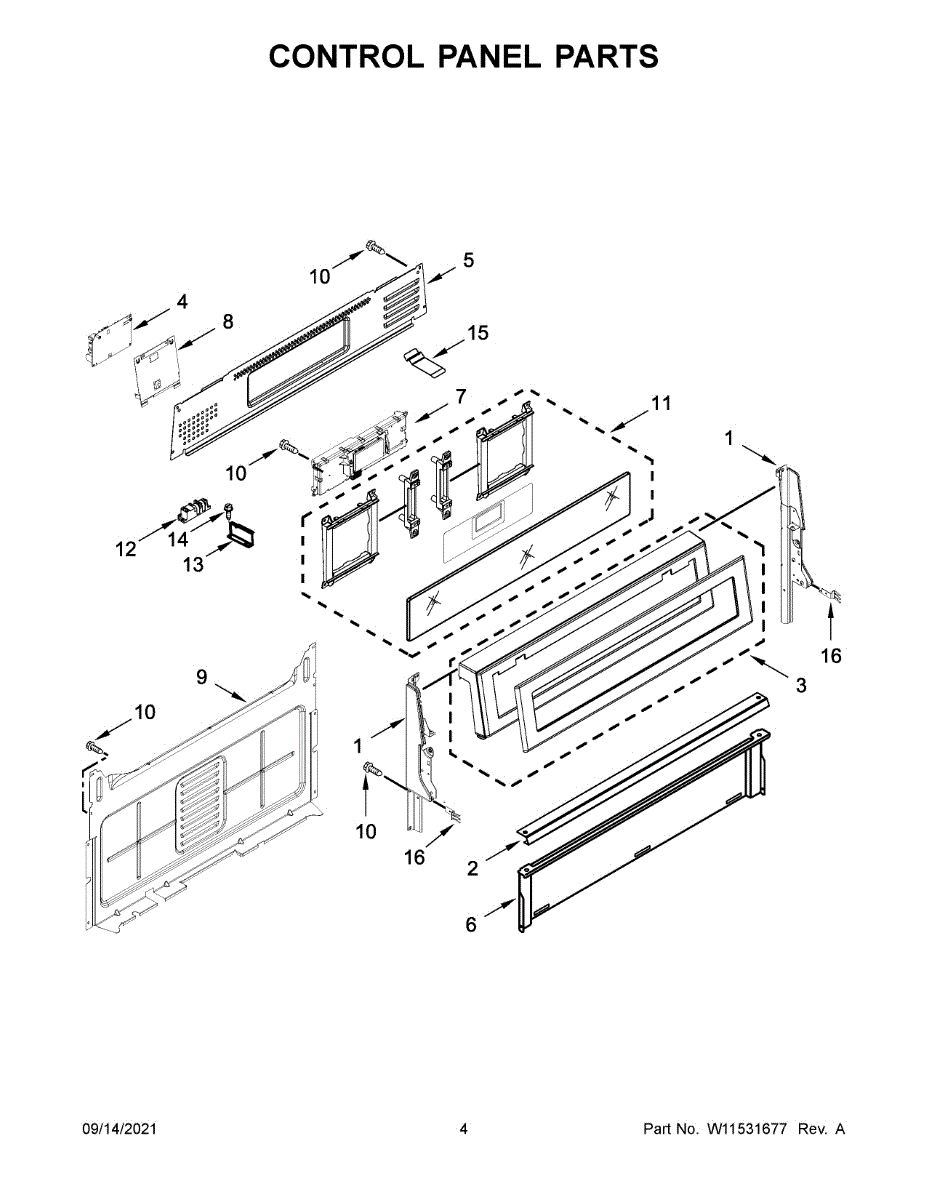

Parts for Kitchenaid KFGG500ESS3: Control Panel Parts

If your range display is unresponsive or damaged, this control panel console restores full command of cooking functions and settings for your oven.

Gas range won't ignite or no clicking when preheating? The spark module generates sparks to ignite burners. Intermediate repair, requires panel access.

Rear cover panel for gas ranges. Replaces cracked, damaged, or missing covers on the back of your range. Restores appearance and protects components.

Metal heat shield that protects range components from direct heat damage. Installs near oven cavity. Replace when original is warped, cracked, or missing.

Range not responding to buttons or display blank? This electronic control board manages timing, cycles, and display functions. Restores full control operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Fix unresponsive range buttons with this membrane switch touch pad. Restores control panel functionality when buttons don't register or work intermittently.

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Support bracket for gas ranges. Secures and stabilizes internal components. Replace if bent, cracked, or broken to restore proper structural support.
