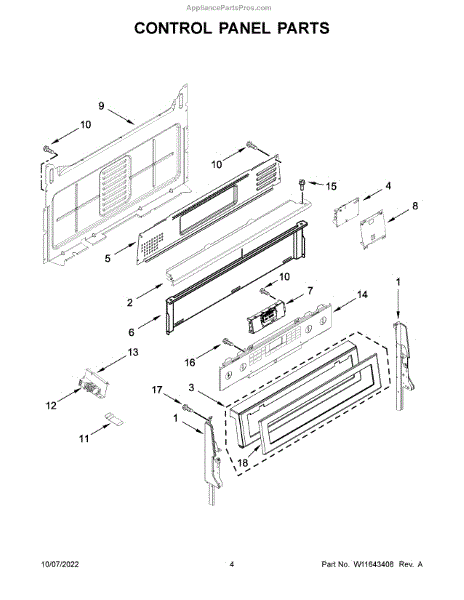

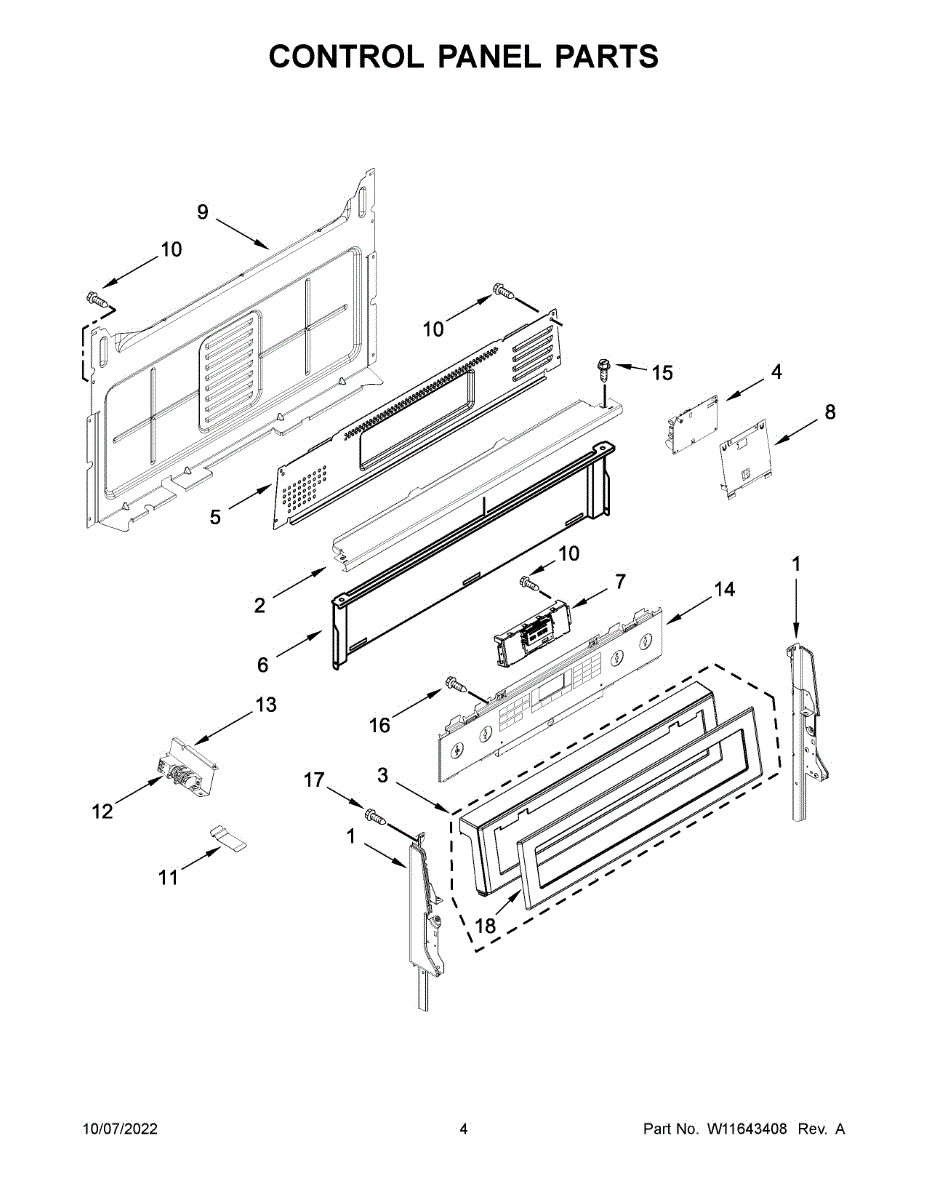

Parts for Kitchenaid KFGG504KPS3: Control Panel Parts

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

This control panel is the electronic user interface that lets you select cycles and settings and lets the appliance communicate status. Replacing a faulty panel restores reliable control and clear feedback for normal operation. What it does:

• Houses the touchpads/buttons and display used to choose cycles and options
• Sends commands to the appliance's main control board to start and change functions
• Common symptom: unresponsive buttons or controls that won't accept selections
• Common symptom: display is blank, missing segments, or shows error codes tied to the panel

• Disconnect power to the appliance before starting any work to avoid shock or damage
• Handle the panel gently to avoid scratching the overlay or damaging connectors
• Carefully unplug and plug any ribbon or wire connectors; ensure correct alignment before testing

The Spark Module is an OEM replacement part for Whirlpool gas ranges. It is responsible for generating the spark necessary to ignite the gas burners on your cooktop, ensuring reliable and consistent ignition every time. It controls the timing and distribution of the sparks, allowing for the proper ignition of each burner.

Symptoms of a faulty spark module include:

• No spark or ignition when turning on the burners
• Weak or intermittent sparks
• Difficulty in lighting the burners consistently

A bad spark module can occur due to electrical malfunctions, wear and tear over time, or exposure to moisture or grease. If you experience issues such as no spark at all, weak or intermittent sparks, or difficulty in igniting the burners, it may be time to replace the old or damaged spark module with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This membrane switch is the flat touch pad used to send user commands to the appliance control board. It restores responsive button input and lets the control register selections without replacing the entire console. What it does

• Provides the button surface and contact interface for user inputs on the control panel
• Sends key presses to the control board when touched; failed switches can cause unresponsive or intermittent buttons
• Commonly replaces worn, cracked, or non-responsive touch areas that fail to activate cycles or settings
• Works with the existing control board and bezel—no electronic board included

• One membrane switch / touch pad

• Disconnect power (unplug or turn off circuit breaker) before starting any work
• Remove the outer console or control bezel per the service manual to access the switch
• Handle the flat flex cable and connector carefully; avoid bending or creasing the conductive traces

Size: 8-18 x 1/2 inch.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

This factory fastener secures appliance panels, brackets, or internal components. Replacing a missing, rusted, or stripped screw restores a tight fit, reduces vibration/noise, and helps keep parts properly aligned for reliable operation.

• Fastens components to the appliance cabinet or frame
• Replaces missing, corroded, or damaged fasteners
• Helps correct loose, rattling, or misaligned panels and trim
• Supports stable, rattle-free performance when originals are worn or stripped

• Disconnect power; shut off gas or water before servicing
• Match to the original location; start threads by hand to avoid cross-threading
• Use the correct driver that fits the screw head to prevent stripping
• Snug firmly but do not overtighten; repair damaged threads if needed
