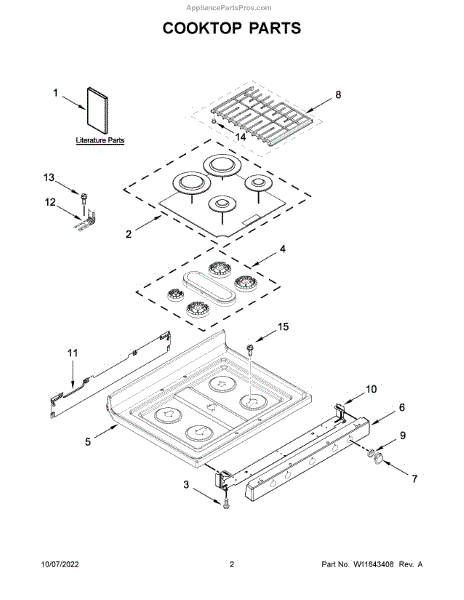

Parts for Kitchenaid KFGG504KPS3: Cooktop Parts

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

The Burner Head is an OEM component specifically designed for Whirlpool gas ranges. Located beneath each cooking surface, it allows precise flame control and heat delivery for safe food preparation.

Causes can be related to accumulated food or mineral deposits distorting gas/air mixing pathways. Normal aging effects like rusting also impact burner functionality.

Symptoms of a bad burner head include:

• Flames appear unusually high, low, or unstable
• Uneven cooking results occur on burner surfaces
• Singeing or burning odors develop during use
• Any ports that appear collapsed or restricted

This OEM Whirlpool replacement burner head restores consistent heat levels. Installed promptly to repair scorches or damage, it prevents continued surface and connection deteriorations to the manifold.

Compatible also with some GE and Frigidaire ranges, this part ensures safe, dependable cooking control.

Color: Stainless

The Knob is an OEM replacement part for Whirlpool ranges. It provides the interface for selecting burner heat settings directly on the cooktop surface.

Causes of a bad knob include cracking, peeling paint, or other wear from repeated use over an oven's lifetime. Internal mechanisms can also fail, preventing proper rotation.

Symptoms of a faulty knob are:

• Difficulty turning or clicking fully into low/medium/high positions
• Loose, wobbly, or disconnected feel during adjustment
• Faded or missing number/temperature labels

Compatible with additional brands including Kenmore, KitchenAid, and Roper gas range, it restores a cooktop's full functionality and customized heating performance.

This 2-piece grate kit replaces worn or damaged cooktop grates so pots and pans sit level and burn evenly on gas cooktops. Durable cast construction restores stable support across the cooktop surface. What it does

• Replaces cracked, warped, or missing grates to stabilize cookware and prevent tipping
• Restores proper clearance for burner flames and even heat distribution
• Helps reduce noise from rattling grates and prevents surface scratching
• Matches OEM fit and layout to sit securely over burner heads

• Allow cooktop and burners to cool completely before handling
• No special tools typically required — lift old grates off and set new grates into place
• Check that grates sit flat and do not rock; adjust placement if needed

Note: This is a kit of 5 bezels.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly
