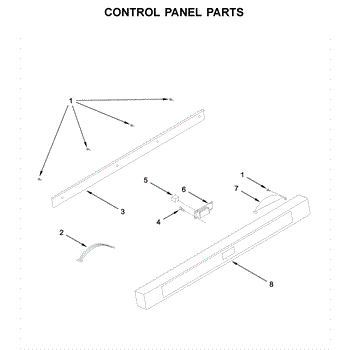

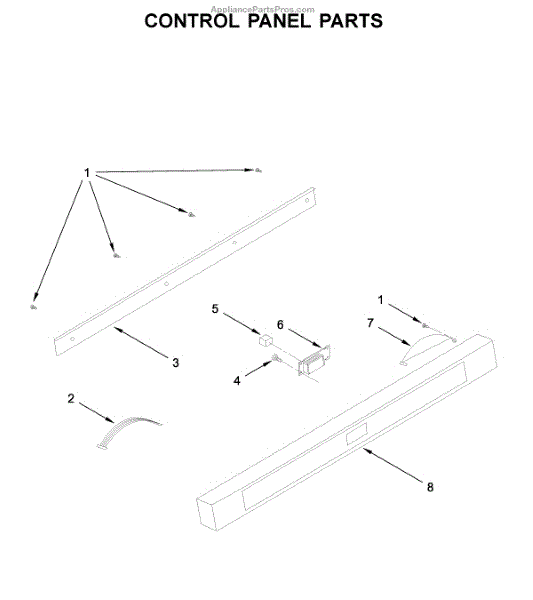

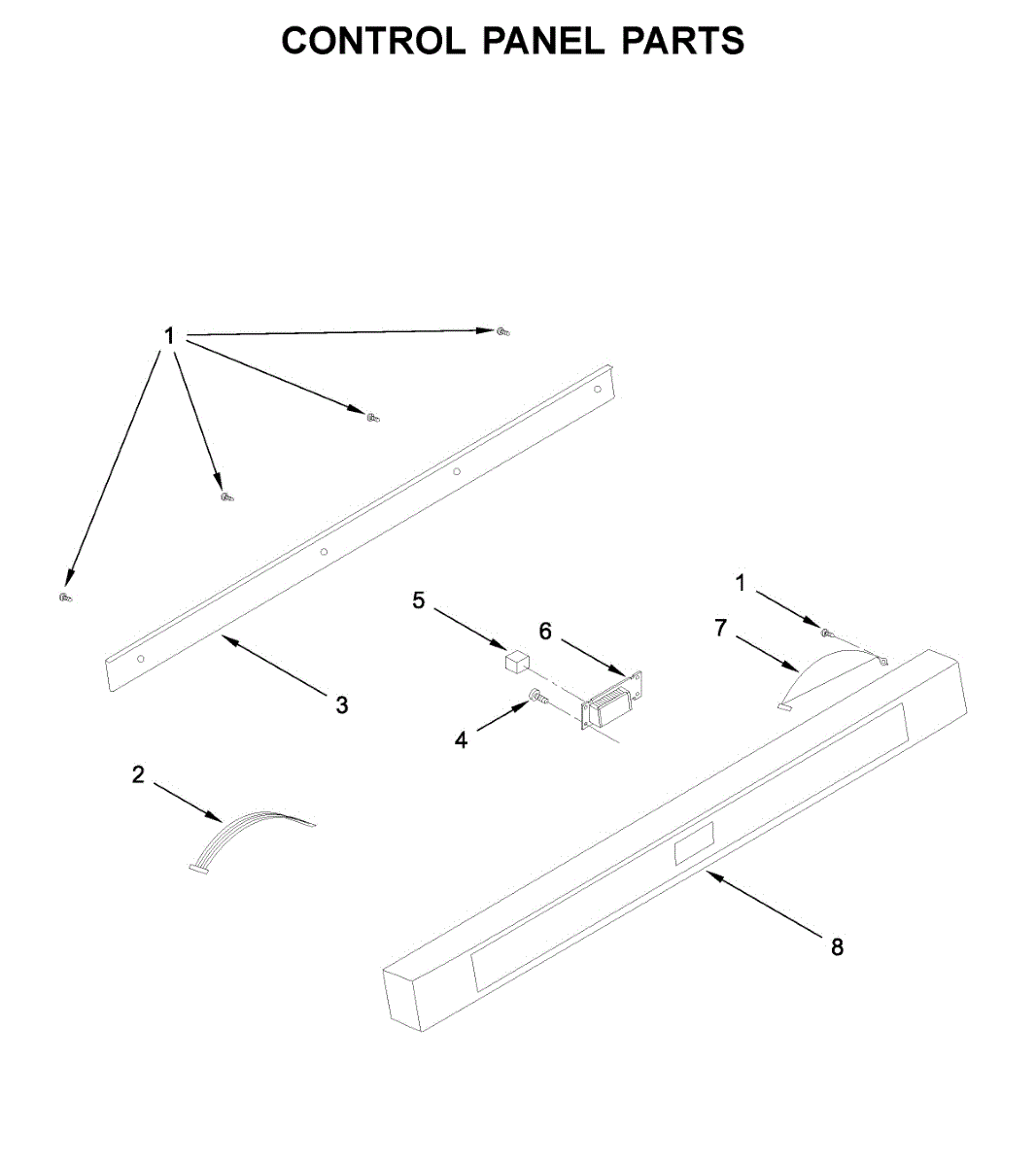

Parts for Kitchenaid KMBD104GSS01: Control Panel Parts

Parts for Kitchenaid KMBD104GSS01: Control Panel Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
5.0 (13)
By: Whirlpool

Fastener screw

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo
By: Whirlpool

This wire harness connects and routes electrical signals between components so controls, motors and sensors receive power and communication. Replacing a damaged harness restores safe electrical continuity and reliable operation. What it does:

  • Links control board, switches and motors with insulated wires and connector plugs
  • Replaces frayed, burnt or broken wiring that can cause intermittent operation or failures
  • Restores proper signal and power flow to affected appliance circuits
  • Helps eliminate arcing, shorts or error codes caused by damaged wiring
What's included:
  • One complete wire harness assembly as shown
Install notes:
  • High-level replacement only; disconnect power before servicing and follow appliance-specific wiring diagrams
  • Handle connectors carefully to avoid bending pins; match connector orientations during reassembly
  • If connectors or terminals are corroded, replace or clean per OEM guidance

More
$74.95
Compare At:
$89.19
You Save:
$14.24

IN STOCK
Ships Today Guaranteed
Add to Cart
3
By: Whirlpool
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
By: Whirlpool
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
By: Whirlpool
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
Product photo
By: Whirlpool

This console is the outer control panel assembly that houses the dryer or washer controls and display, restoring a finished appearance and providing a secure mounting location for the user interface. Designed to match the original OEM fit and function. What it does:

  • Replaces a cracked, faded, or damaged control panel shell to restore proper button and display alignment.
  • Provides the mounting surface for user controls, buttons, and the display window so settings operate correctly.
  • Helps protect internal control components from dust, moisture, and wear caused by regular use.
  • Can resolve issues where physical damage prevents normal operation or makes controls difficult to access.
What's included:
  • One console (control panel assembly)
Install notes:
  • Disconnect power (and water supply for washers) before starting any repair to avoid shock or injury.
  • Remove outer cabinet/console trim as required to access mounting screws; handle the console carefully to avoid scratching the finish.
  • Verify alignment of clips and screw holes before tightening; avoid overtightening to prevent cracking.
  • If console contains electronic components, handle with ESD precautions and avoid contact with circuit boards or connectors unless replacing the full assembly.

More
$205.88
Compare At:
$219.49
You Save:
$13.61

IN STOCK
Ships Today Guaranteed
Add to Cart
7
By: Whirlpool
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
Product photo
By: Whirlpool

This replacement console provides the outer control panel and housing that holds the dryer/washer user controls and display, restoring proper button access and the unit's finished appearance. What it does

  • Replaces a cracked, broken, or cosmetically damaged control console that leaves buttons or the display exposed.
  • Restores secure mounting for control buttons, knobs, and the display assembly.
  • Helps eliminate loose or misaligned controls that can interfere with normal operation.
  • Returns the appliance's front appearance to a clean, factory look.
What's included One console housing. Install notes
  • Disconnect the appliance from power (and gas if applicable) before beginning any work.
  • Basic hand tools are typically required; support the console while removing fasteners to avoid dropping or damaging internal components.
  • Keep all mounting screws and small parts; some models may reuse factory hardware.
  • If the console contains the control board or display, handle electronics carefully and avoid static discharge.

More
$549.95
Compare At:
$611.22
You Save:
$61.27

IN STOCK
Ships Today Guaranteed
Add to Cart
