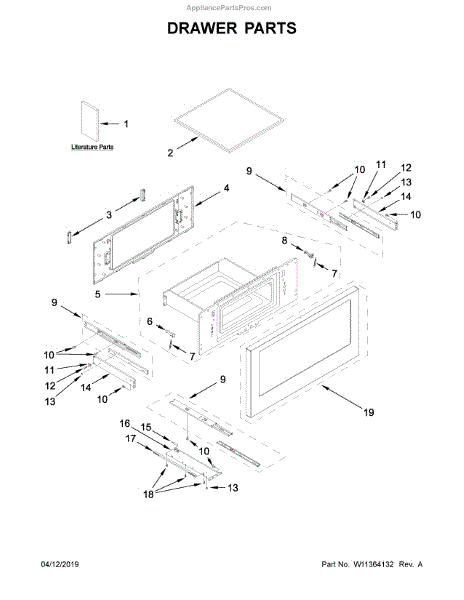

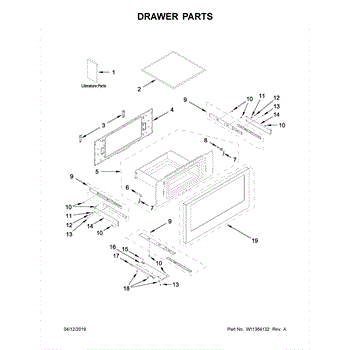

Parts for Kitchenaid KMBD104GSS01: Drawer Parts

The Cooking Tray is an OEM part for Whirlpool microwaves. It provides a stable platform for even cooking and heating of food. It helps distribute the microwave's energy efficiently, resulting in consistent results.

A bad cooking tray can occur due to accidental damage, cracks, or excessive wear and tear. If you notice symptoms such as a cracked or broken tray, irregular rotation, or uneven heating of your food, it may be time to replace the cooking tray.

Symptoms of a bad cooking tray include:

• Cracked or broken tray
• Irregular or noisy rotation
• Uneven heating of food

Repair your microwave by replacing the faulty or damaged cooking tray with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This complete microwave door assembly replaces a damaged or worn door to restore a secure seal and proper operation. It gives the oven a finished look while helping keep heat and steam inside for safe, efficient cooking. What it does:

• Replaces a cracked, bent or cosmetically damaged microwave door to restore appearance and function
• Restores the door latch and sealing surface so the microwave can close and latch properly
• Helps prevent heat and steam from escaping during operation for safer use
• Can stop intermittent operation caused by a faulty or misaligned door switch contact point

• One complete microwave door assembly

• Disconnect power at the breaker or unplug the microwave before any repair
• Door installation may require removing outer trim panels and reconnecting latch/linkage; follow your model's service manual
• Handle the glass and edges carefully to avoid breakage or injury

Fastener screw

This outer door panel replaces a damaged or worn refrigerator door exterior to restore the appliance's appearance and protect internal components. It provides the exterior surface that you see and touch, giving a finished look and durable protection. What it does:

• Covers and protects the door frame, insulation, and inner liner from damage and wear
• Restores the refrigerator's exterior appearance when the old door is dented, cracked, or corroded
• Helps maintain the door's seal by providing a flush, intact exterior surface
• Works with the existing hinge, trim, and hardware to form the completed door assembly

• One outer door panel only

• Requires removal of the inner liner and possibly door components; installation should follow OEM instructions
• Use proper support and a helper; the door panel can be heavy and awkward to handle
• Disconnect power to the appliance before starting work and take care around sharp edges
• Fasteners, trim, and hardware may be reused from the original door

This replacement drawer wire harness restores the electrical connection between the drawer assembly and the appliance wiring, allowing controls, lights, and motors in the drawer area to receive power and signals. Use when the original harness is worn, damaged, or has failed. What it does:

• Carries power and signal between the appliance body and the drawer assembly
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation
• Helps stop electrical faults that can prevent drawer motors, lights, or switches from working
• Matches OEM connector layout to fit original mounting points

• One replacement drawer harness

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and route the harness away from sharp edges and moving parts
• Confirm connector orientation and secure all clips and fasteners during installation
