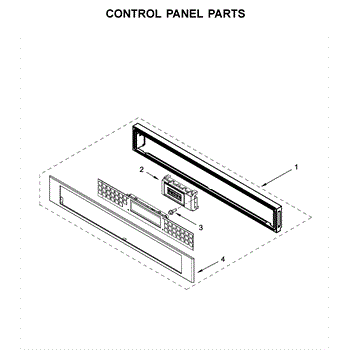

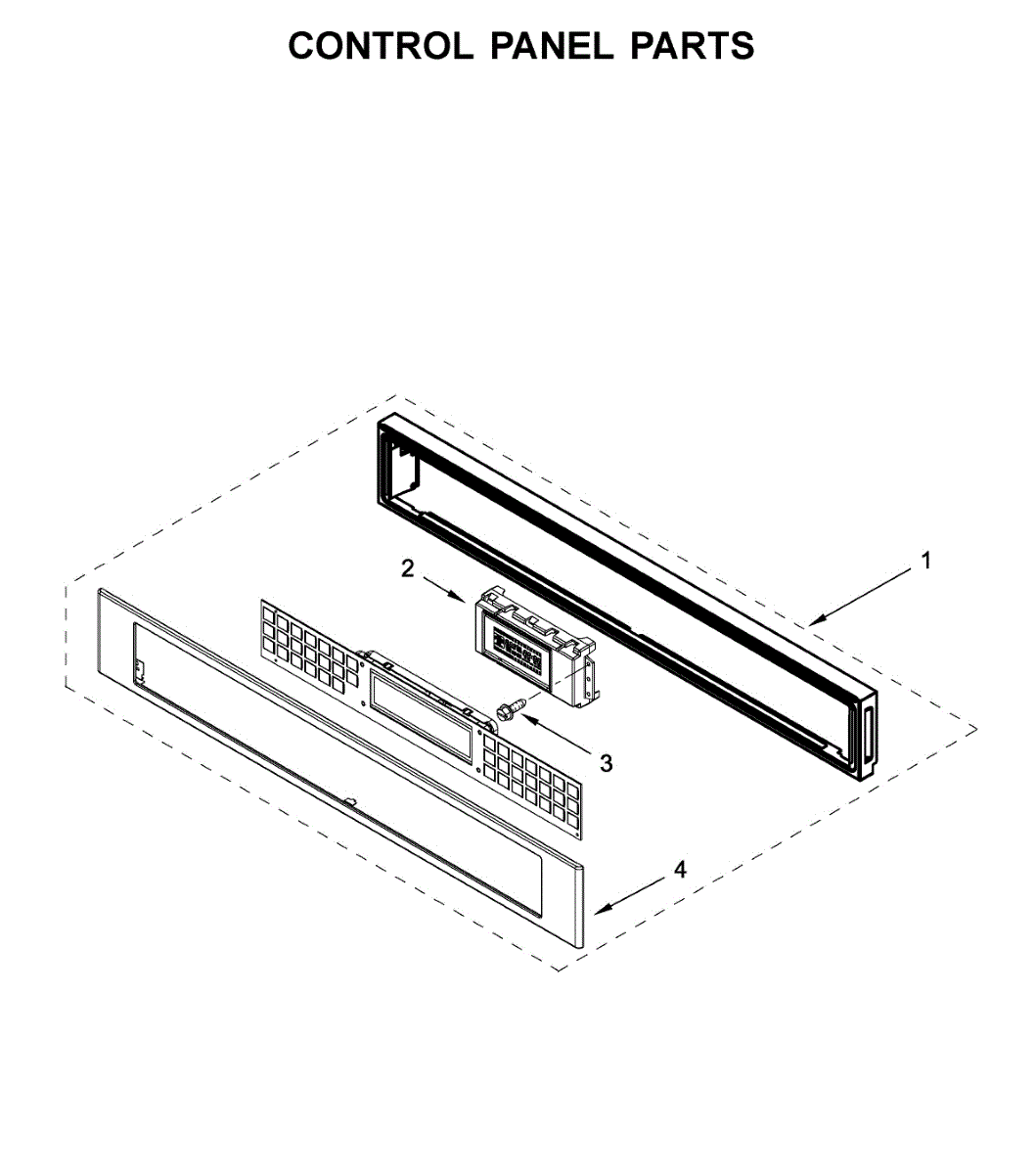

Parts for Kitchenaid KMBP107EBS02: Control Panel Parts

This electronic control board operates the appliance's user interface and timed functions so cycles start, run and display correctly. Replacing a faulty board restores control logic and cycle sequencing. What it does:

• Controls cycle selection, timing and display signals for the appliance
• Processes user commands from the console and sends power signals to components
• Common symptom: appliance won't start or respond to controls
• Common symptom: display is blank, shows error codes, or cycles don't advance
• Common symptom: intermittent operation or unpredictable cycle behavior

• Disconnect power (unplug or shut off circuit/breaker) before servicing
• Handle the board by its edges and avoid static discharge; use an anti-static wrist strap if available
• Verify wiring harness connections and any fuses or thermal cutouts before and after installation

Screw for side trim.
