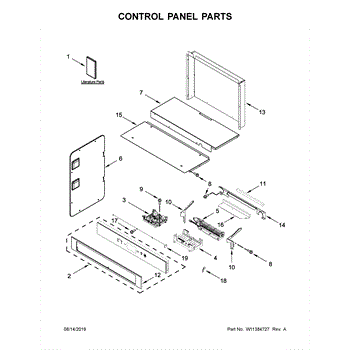

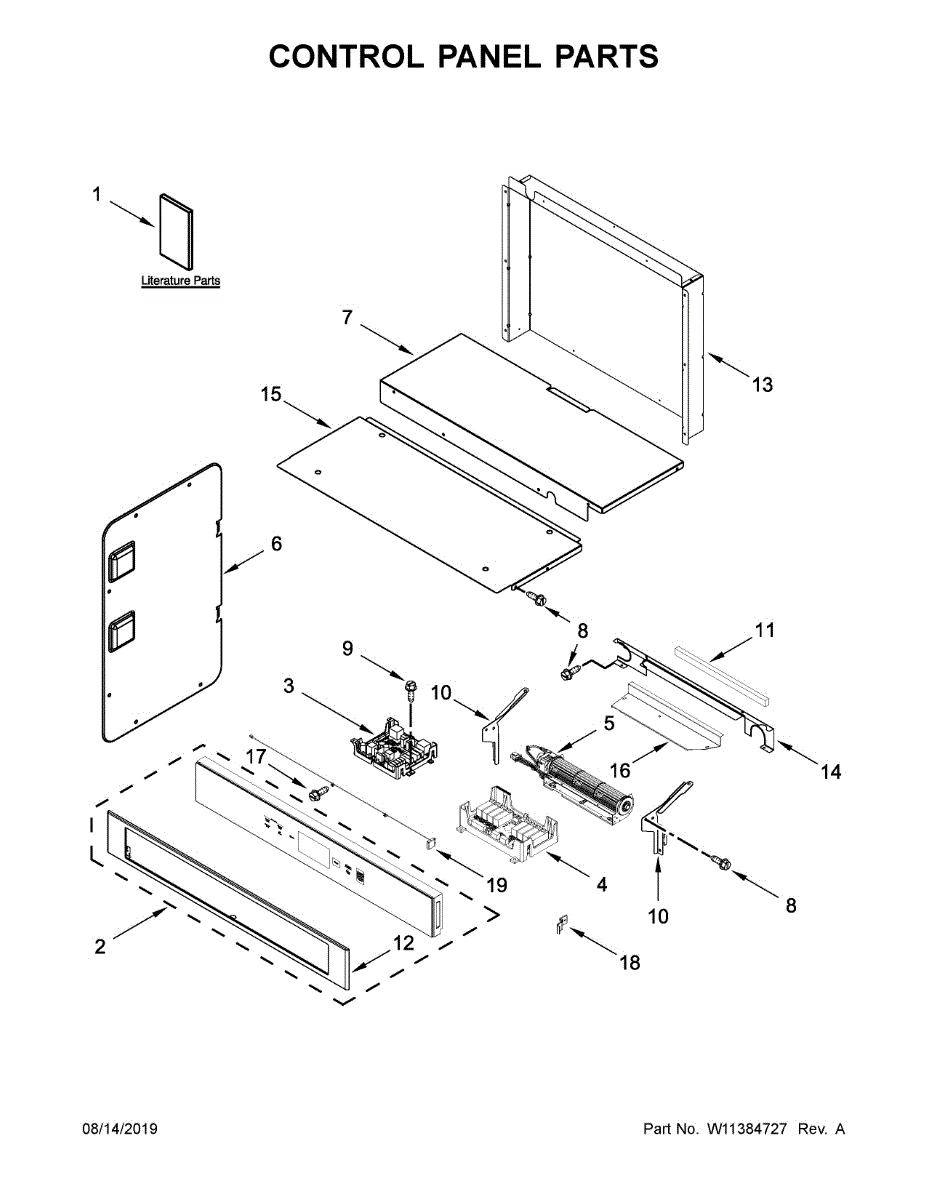

Parts for Kitchenaid KOCE900HBS02: Control Panel Parts

This electronic control board assembly replaces the appliance's main control module to restore proper cycle selection and timed functions. It provides reliable control of user inputs and electronic signals for normal operation. What it does:

• Manages cycle selection, timing, and user-interface commands
• Processes sensor and switch signals for proper appliance operation
• Restores responsive touch/buttons and display-driven controls
• Helps stop erratic or non-starting behavior caused by a failed control board

• Disconnect power before starting; verify power is removed at the breaker or unplug the appliance
• Handle the board carefully and avoid touching circuitry; use ESD precautions when possible
• Installation typically requires removing the control panel and securing the board with existing fasteners

This electronic control board is the main controller that manages a range of appliance functions and user inputs, restoring reliable electronic operation and helping the unit respond correctly to selected cycles and settings. What it does

• Receives input from the control panel and sends signals to motors, valves, heaters, and sensors
• Replaces a failed or unresponsive main controller that causes unresponsive buttons or dead controls
• Can correct intermittent or erratic operation caused by damaged circuitry or failed components
• May resolve error codes or cycle failures tied to control malfunctions

• One electronic control board

• Disconnect power before attempting any service to avoid electrical shock
• Handle board by edges and avoid touching component leads; use ESD protection if available
• Verify wiring harness connections and mounting orientation before reassembly

The Blower is an OEM part for Whirlpool ranges. It is responsible for cooling down the internal parts of the range during operation, preventing overheating. This cooling fan blower motor circulates air, dissipating heat and maintaining a safe operating temperature for the range. It helps to extend the lifespan of the range and prevents potential damage caused by excessive heat buildup.

A bad cooling fan blower motor can occur due to wear and tear or electrical malfunctions. If you notice symptoms such as loud or unusual noises coming from the range, failure of the cooling fan to operate, or overheating issues, it may be time to replace the blower motor.

Symptoms of a bad cooling fan blower motor include:

• Loud or unusual noises coming from the range
• Failure of the cooling fan to operate
• Overheating issues with the range

Restore your range by replacing the faulty or worn-out cooling fan blower motor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Color: Black Stainless

Color: Stainless

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This antenna and housing assembly (M2.0) replaces the factory antenna module and its outer housing to restore reliable wireless reception and secure mounting for the control electronics. It helps recover signal-dependent features and keeps internal components protected. What it does:

• Receives and routes wireless/control signals between the appliance electronics and external devices or modules
• Provides a secure, insulated housing to protect the antenna and associated wiring from damage
• Can resolve symptoms such as intermittent or lost wireless communication, unresponsive remote functions, or erratic control-panel connectivity
• Designed as a direct-fit assembly for the corresponding control harness and mounting points

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle connectors and wiring gently; ensure mating connectors fully seat and locking tabs engage
• Keep screws and mounting hardware organized; verify the housing aligns with factory mounting bosses before tightening

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

This fuse holder secures and connects a replaceable inline fuse to the appliance's electrical circuit, restoring overcurrent protection and helping prevent damage from short circuits or power surges. What it does:

• Holds and connects a replaceable fuse in the appliance's electrical circuit
• Completes the fuse's electrical connection so current flows through the protective element
• Replaces a cracked, burnt, or loose holder that causes intermittent power or blown fuses
• Helps restore proper overcurrent protection when the fuse itself is intact

• Disconnect power to the appliance before inspecting or replacing electrical parts.
• Inspect nearby wiring and connectors; replace any damaged components to ensure a secure connection.

This time-delay fuse protects the appliance's power circuit by opening when current exceeds a safe level while tolerating brief inrush current. Replacing a blown fuse can help restore power once the root cause is corrected. What it does:

• Protects the line and control circuits from shorts and overloads
• Time-delay design helps prevent nuisance opening during startup surges
• When open, the unit will be completely dead—no display, lights, or response
• Repeatedly opening usually indicates an unresolved electrical fault that needs diagnosis

• 1 time-delay fuse

• Disconnect power at the breaker before servicing; some appliances can retain dangerous high voltage
• Replace only with the same type and rating specified by the manufacturer
• Inspect the fuse holder and wiring for heat damage or loose connections before reassembly
• If the new fuse opens immediately, stop and diagnose the underlying cause; never bypass or upsize a fuse
