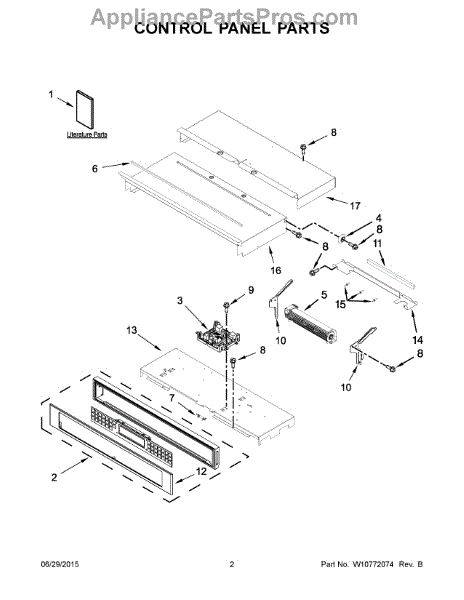

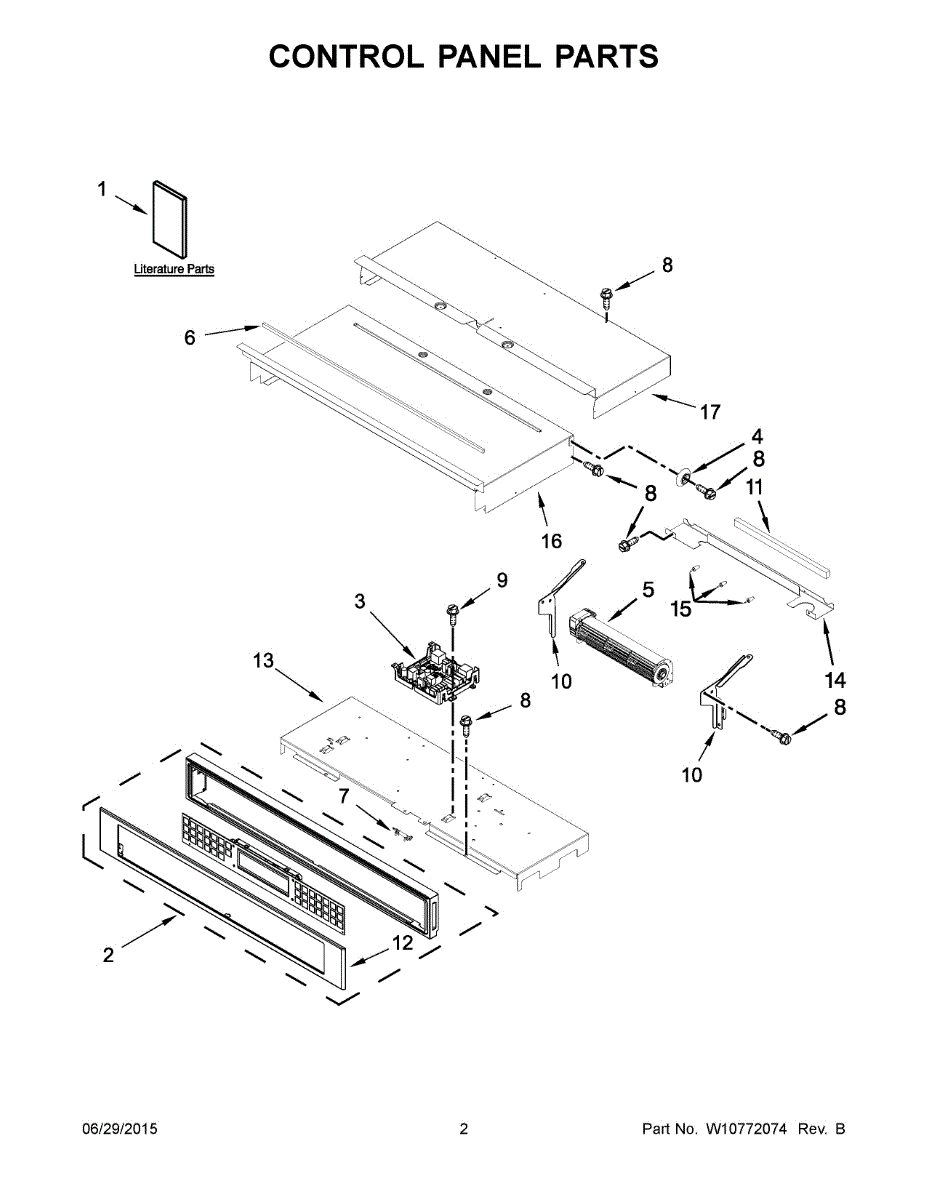

Parts for Kitchenaid KODE507EBL00: 02 - Control Panel Parts

If your oven buttons aren't responding or the display is blank, this electronic control panel restores touchpad functions and programming capabilities.

If your oven buttons aren't responding or the display is blank, this control panel restores full function. Moderate DIY repair for most home users.

Fix unresponsive oven buttons with this membrane switch touchpad. Restores control panel function when buttons don't respond or labels are worn. Easy DIY fix.

Fix a wall oven that won't heat or respond to controls. This control board manages temperature, cooking modes, and timing. Moderate DIY repair.

This thermal fuse is a safety device designed to cut power to the oven if internal temperatures exceed a safe limit, preventing overheating and potential fire hazards. It is a one-time-use component that cannot be reset once it has tripped. Replace this fuse if your wall oven will not heat at all or has no power, especially after a self-clean cycle or an overheating event.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Cabinet panel that covers the top of your wall oven. Replaces cracked, discolored, or damaged panels to restore the finished appearance of your unit.

This wire harness routes power and signals between appliance components to restore reliable electrical connections. Replacing a damaged harness helps eliminate intermittent faults and restores proper operation of affected circuits. What it does:

• Carries power and control signals between modules, switches and motors
• Restores circuit continuity when original harness shows burns, breaks or loose connectors
• Can stop intermittent operation, no-power symptoms, or components that won't respond
• Matches OEM routing and connector types to fit and function like the original

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Compare connectors and routing to the original harness; replace only if it matches
• Handle connectors carefully and avoid pulling on individual wires

Ground wiring harness for wall ovens and ranges. Connects electrical components to ground for safety. Replace if wires are frayed, damaged, or burnt.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

This wire harness provides the factory-style electrical connections needed to restore secure, organized wiring in your appliance. Replacing a damaged harness helps re-establish reliable power and signal paths for controls and components. What it does:

• Connects multiple internal components with pre-terminated wiring and color-coded connectors
• Ensures correct signal and power routing between control boards, switches, and motors
• Commonly used to address intermittent power, loss of functions, or components that don't respond
• Keeps wiring bundled and secured to prevent chafing or short circuits

• Disconnect power (unplug or switch off breaker) before starting any repair
• Match connector shapes and wire colors; route and secure harness along the original path
• Inspect connectors and insulation; replace the entire harness if any wire or terminal is damaged
