Parts for Kitchenaid KOSE500EBS05: Control Panel Parts

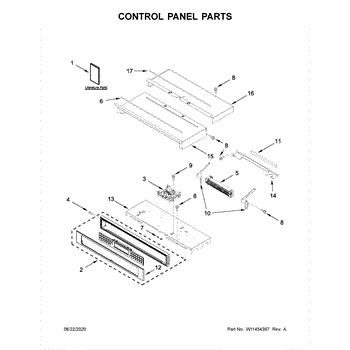

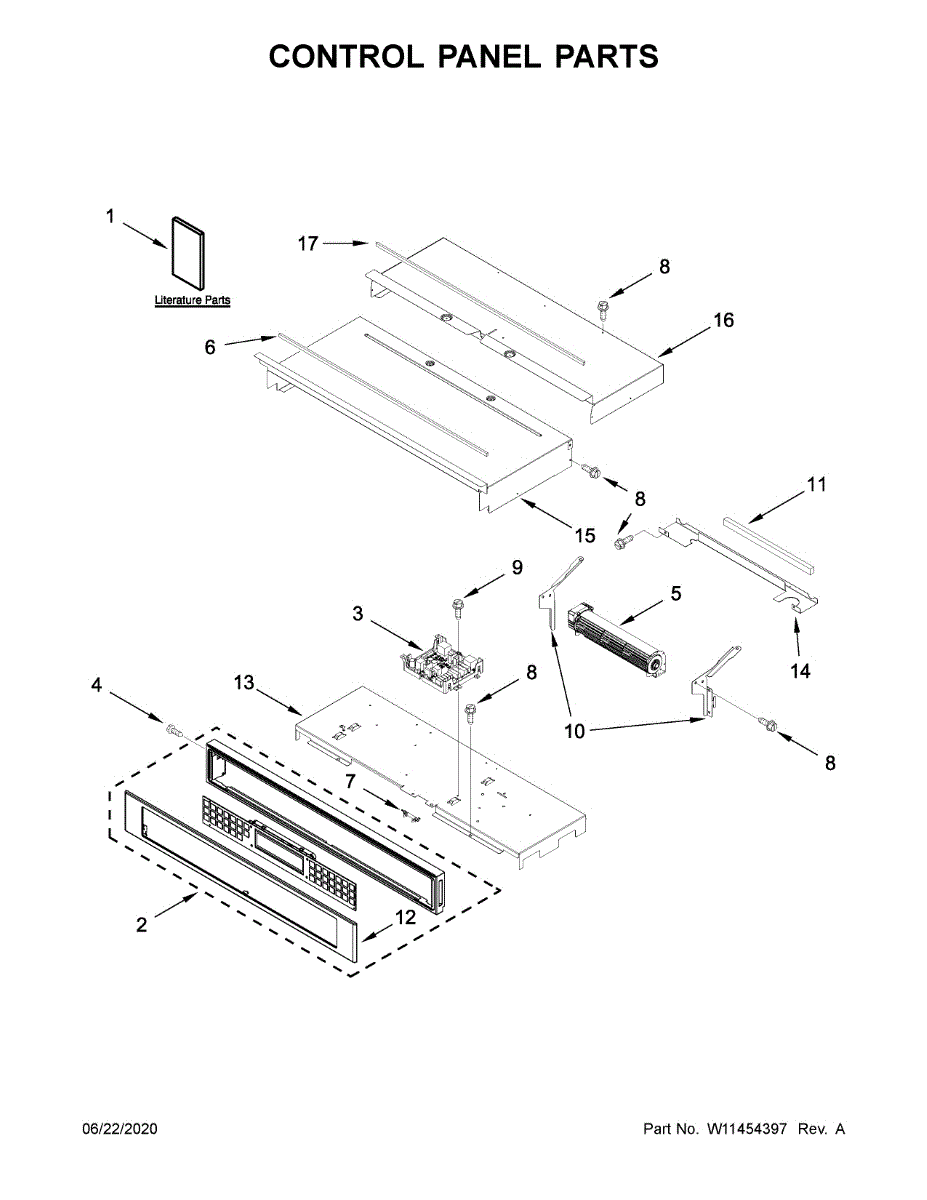

ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
The wall oven Panel-Control is an OEM part for Whirlpool wall ovens. The panel-control houses all of the buttons, displays, and interfaces needed to operate the wall oven. It must be durable enough to withstand repeated use while also being responsive to provide an intuitive user experience.

Causes of a bad panel-control can include cracks or breaks in the display surface, malfunctioning buttons that do not respond properly, or issues with the integrated electronic components and wiring.

Symptoms of a bad panel-control include:

• Buttons that are unresponsive or do not input commands
• Displays that do not illuminate or show inaccurate readings
• Inability to power on the wall oven or access cooking functions
• Unintended start or stop of cooking cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This membrane switch is the flat touch pad used to send user commands to the appliance's control board. It restores responsive button/soft-key operation so the control panel responds correctly to selections. What it does:

• Provides a sealed, low-profile interface for touch/button inputs on the control panel
• Sends user commands to the appliance control board when pressed
• Commonly replaces cracked, unresponsive, or worn touch areas that fail to register presses
• Helps restore normal control-panel functionality without replacing the entire console

• One membrane switch (touch pad) as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or damage
• Handle the membrane carefully to avoid creasing or contaminating contact areas
• Gently separate mounting clips or adhesive per the service manual

The Control Board is an OEM part for Whirlpool microwave and wall oven combinations. It is responsible for managing and coordinating the various functions of the appliance, including temperature regulation, cooking modes, and timing.

Over time, exposure to high heat and regular usage can lead to malfunctions. Physical damage or power surges can also cause the control board to fail.

Symptoms of a bad Control Board include:

• Unresponsive touchpad or display
• Inconsistent temperature control
• Error codes displayed
• The appliance not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM part for Whirlpool electric wall ovens and ranges. It acts as a safety cutoff switch if excessive internal temperatures are reached.

Causes of a bad thermal fuse can involve repeated heating and cooling cycles degrading internal wiring contacts and insulation over many years. Physical damage during cleaning may also crack casing components.

Symptoms of a bad thermal fuse include:

• Inability to heat or maintain set temperatures
• Circuit breakers that trip unexpectedly
• Visible burn marks near internal wiring
• Electronic displays or clocks that no longer function

Replacing with a Whirlpool OEM thermal fuse safeguards cooking elements from overheating while preserving appliance dependability. Compatible brands include KitchenAid, Jenn-Air, and select Kenmore wall oven models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Color: White

This control panel is the user-facing electronic interface that lets you operate your appliance's functions and settings. It replaces a damaged or unresponsive front control assembly so your appliance responds correctly to button presses and displays. What it does:

• Provides the touchpad/buttons and display used to select cycles, temperatures, and timers
• Relays user commands to the appliance's control board so functions start and stop as selected
• Common symptom fixes: unresponsive buttons, flickering or blank display, or intermittent command registration
• Restores normal control operation when the original panel is cracked, worn, or water-damaged

• One control panel assembly (user interface) as shown

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Handle the panel and display lens carefully to avoid scratches or damage
• Removal may require trim, bezels, or screws to be taken off; keep fasteners organized

Color: Black Stainless

Color: Stainless

This wire harness routes power and signals between the appliance's control components for reliable operation. It replaces a damaged or worn harness to restore electrical connections and helps solve intermittent power or control issues. What it does:

• Provides the main electrical connection path between control, motor, and sensors
• Restores missing or broken wire connections that can cause no-power or erratic operation
• Replaces frayed, burned, or corroded wiring that can trigger faults or shutdowns
• Ensures correct connector fit to maintain signal integrity and safety

• One complete wire harness assembly as shown

• Disconnect power before starting—risk of shock if power is connected
• Verify connectors match your appliance before installing; route wires to avoid pinch points or heat sources
• Tighten any fasteners and secure harness with existing clips or ties for strain relief

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
