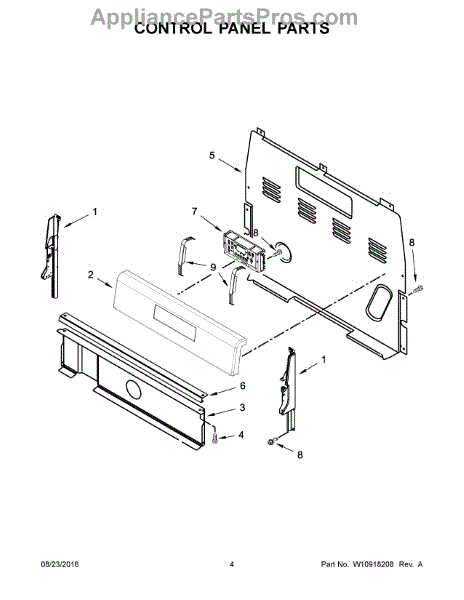

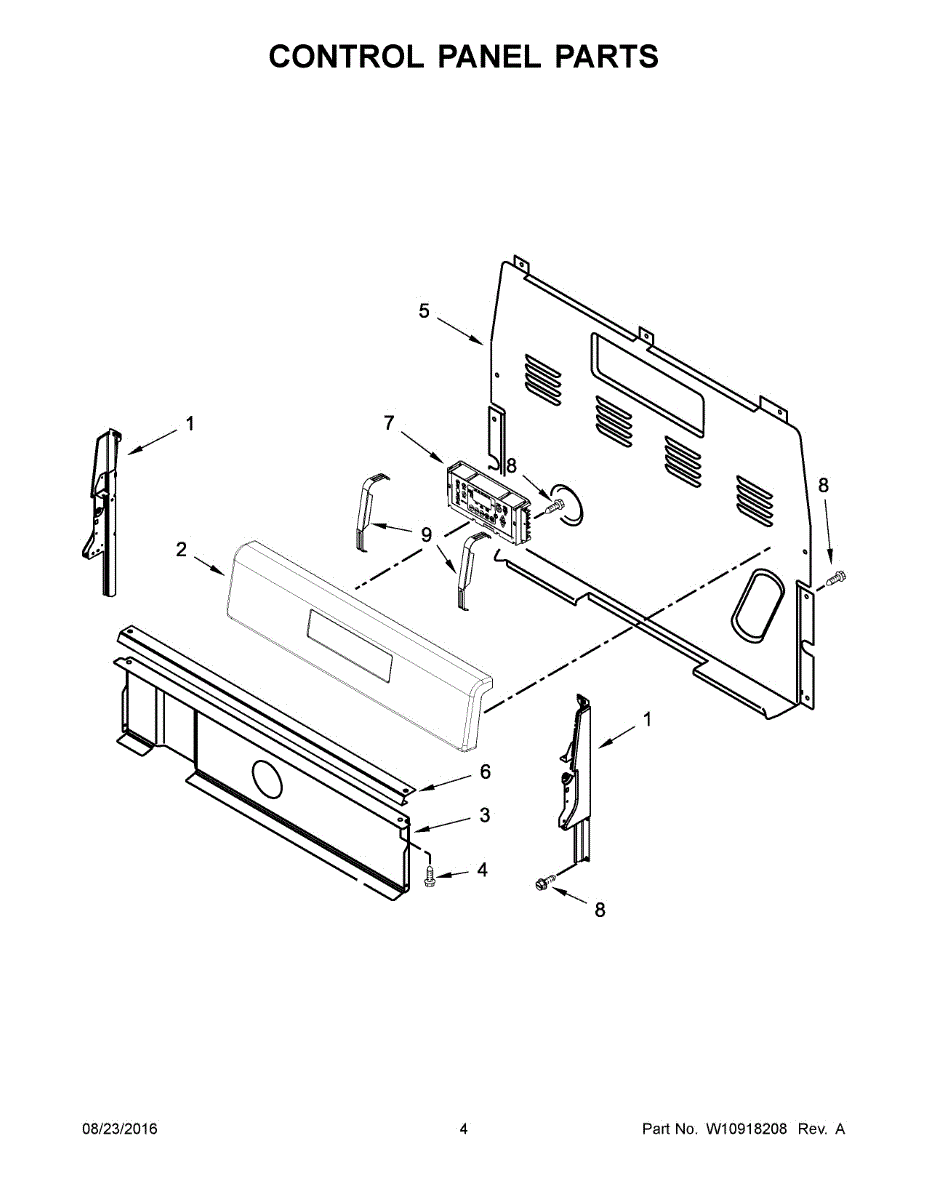

Parts for Whirlpool WFE520S0FS0: 03 - Control Panel Parts

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

This replacement part is a range control panel manufactured by Whirlpool. The control panel houses the buttons that the user utilizers to choose the heat and temperature settings, as well as the display. It's critical to proper appliance functionality and will need to be replaced if the display isn't working or the correct heat and temperature cannot be selected. To ensure that injury doesn't occur, the range needs to be entirely turned off, disconnected from the power source, and cooled down before beginning.This is a genuine OEM part that has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable, non-corrosive materials and is compatible with various different range models manufactured by Whirlpool, Maytag, Kitchenaid, Jenn-Air, Magic Chef, and other brands. This part is only sold individually.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

Electronic control panels like this one are designed to help with the operation of an oven. This component has a series of buttons across its surface for users. These can be used to change the oven temperature, set the method of cooking, and start oven maintenance, such as self-cleaning. The electronic control panel is wired to the major components of the oven to determine whether everything is working correctly.The most common sign that the electronic control panel is damaged is the oven not turning on. However, a malfunctioning component can also cause the oven not to heat, turn off and on randomly, or display error codes across the display. If the part is damaged, it should be replaced. A nut drive, screwdriver, and putty knife will be needed for the replacement process. Unplug the oven before starting. Turn the screws on the back of the electronic control panel and pull the ribbon away before disconnecting the part. Install the new control panel and reattach the ribbon before replacing the screws. Created for use on ovens by Whirlpool, this part is sold on an individual basis. It is sourced directly from the manufacturer as a genuine OEM replacement part.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage
